User Manual
HDXP Plus Series
MULTI-RATE sERIAL DIGITAL
MATRIX sWITCHERs

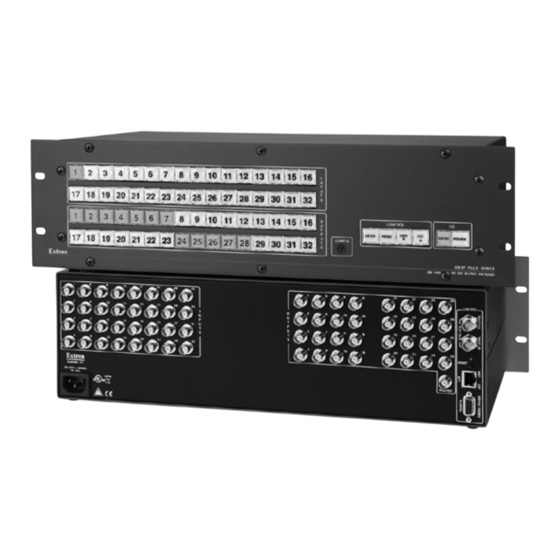

HDXP 3232
The Extron HDXP Plus Series are multi-rate serial digital matrix switchers designed
for use with all SMPTE and ITU standards for digital video signals. They are ideal
for routing HDTV and other high resolution digital video signals for digital cinema
projection, graphics production facilities, biomedical imaging, satellite mapping
and visualization systems, rental and staging environments, and other applications
where reliable, high data rate signal distribution is required.
MATRIX SWITCHERS
Available in three sizes: 16x16,
n
32x16, and 32x32
Complies with all SMPTE and ITU
n
standards for digital video
Data rates from 143 Mbps to
n
2.97 Gbps
Switches SDI, HD-SDI, dual-link
n
HD-SDI, and 3G-SDI digital
video signals
User-selectable reclocking modes
n
Input preview mode with
n
dedicated output
DSVP
- Digital Sync Validation
™
n
Processing
®
IP Link
Ethernet control
n
www.extron.com
Advertisement
Related Manuals for Extron electronics HDXP Plus Series
Summary of Contents for Extron electronics HDXP Plus Series
- Page 1 Ethernet control HDXP 3232 The Extron HDXP Plus Series are multi-rate serial digital matrix switchers designed for use with all SMPTE and ITU standards for digital video signals. They are ideal for routing HDTV and other high resolution digital video signals for digital cinema...
- Page 2 DESCRIPTION FEaTuRES The Extron HDXP Plus Series represents a new approach in the design of n Automatically adapts to SMPTE and ITU serial digital video standards – multi-rate serial digital matrix switchers. The series includes three models, in Complies with SMPTE 259M, ITU-R BT.601, SMPTE 292M, ITU-R BT.1120, I/O sizes of 16x16, 32x16, and 32x32, which are capable of routing all SMPTE SMPTE 372M, and SMPTE 424M standards.
-
Page 3: Specifications
SPECIFICaTIONS VIDEO COntrOl/rEmOtE — swItChEr Routing Serial control port ......1 RS-232 or RS-422, 9-pin female D HDXP Plus 1616 ......16 x 17 matrix connector HDXP Plus 3216 ......32 x 17 matrix 1 RS-232, 2.5 mm phone jack (front panel) HDXP Plus 3232 ......32 x 33 matrix Baud rate and protocol .... -
Page 4: Application Diagram
Inside USA / Canada Only +1.919.863.1794 +31.33.453.4040 +65.6383.4400 +86.21.3760.1568 +1.714.491.1500 +1.919.863.1797 FAX +31.33.453.4050 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +1.714.491.1517 FAX 08-01 68-1219-01 © 2008 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. REV. C...
