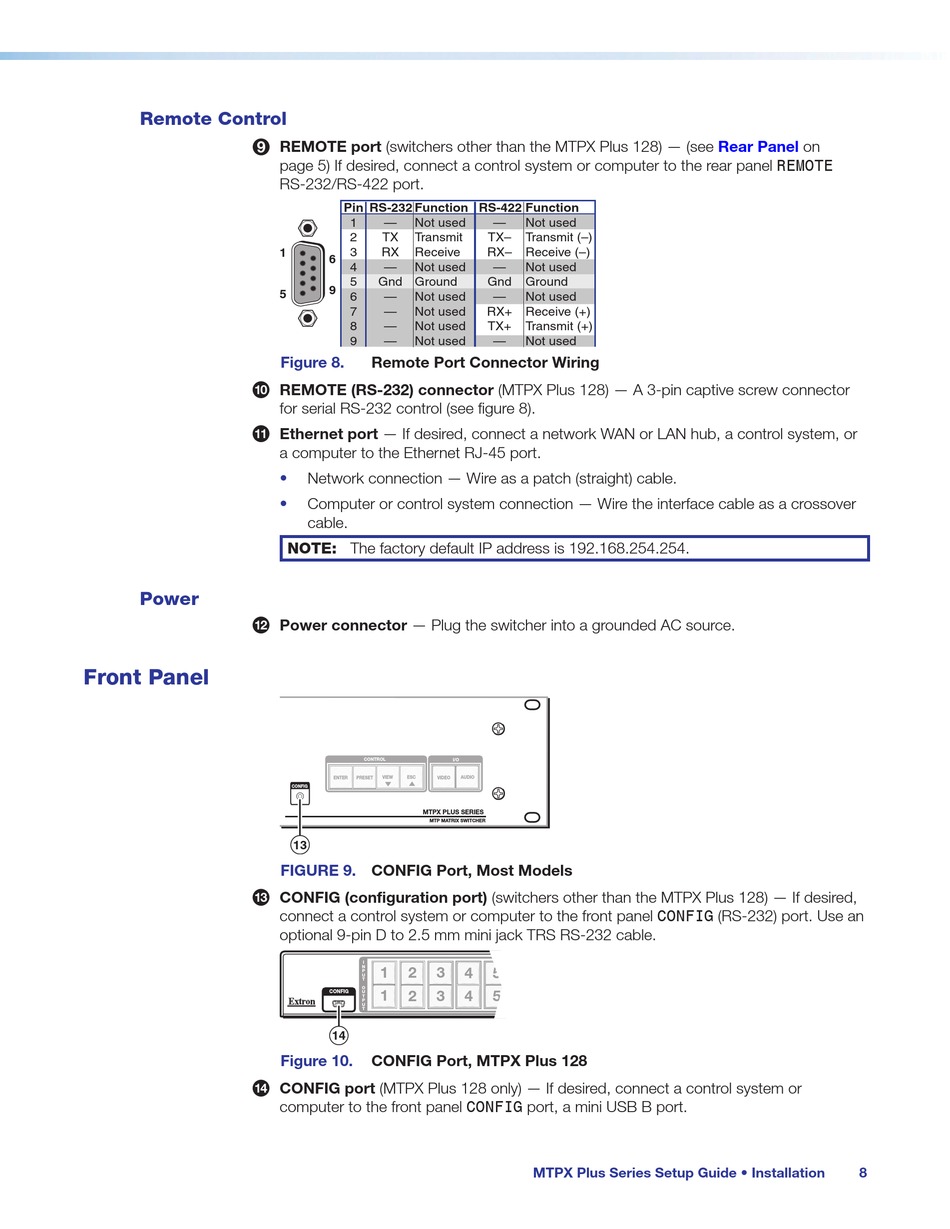

Remote Control

9
¢
£

Power

¤

Front Panel

¥
¦
REMOTE port (switchers other than the MTPX Plus 128) — (see
page 5) If desired, connect a control system or computer to the rear panel REMOTE
RS-232/RS-422 port.
Pin RS-232 Function
1 — Not used
2 TX Transmit
3 RX Receive
1
6
4 — Not used
5 Gnd Ground
9
5
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Figure 8. Remote Port Connector Wiring
REMOTE (RS-232) connector (MTPX Plus 128) — A 3-pin captive screw connector
for serial RS-232 control (see figure 8).
Ethernet port — If desired, connect a network WAN or LAN hub, a control system, or
a computer to the Ethernet RJ-45 port.
• Network connection — Wire as a patch (straight) cable.
Computer or control system connection — Wire the interface cable as a crossover
•
cable.
NOTE: The factory default IP address is 192.168.254.254.
Power connector — Plug the switcher into a grounded AC source.
CONTROL I/O
ENTER PRESET VIEW ESC VIDEO
CONFIG
MTPX PLUS SERIES
MTP MATRIX SWITCHER
13
FIGURE 9. CONFIG Port, Most Models
CONFIG (configuration port) (switchers other than the MTPX Plus 128) — If desired,
connect a control system or computer to the front panel CONFIG (RS-232) port. Use an
optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable.
I
N 1 2 3
P
U
T
O
1 2 3
CONFIG
U
T
P
U
T
14
Figure 10. CONFIG Port, MTPX Plus 128
CONFIG port (MTPX Plus 128 only) — If desired, connect a control system or
computer to the front panel CONFIG port, a mini USB B port.
RS-422 Function
— Not used
TX– Transmit (–)
RX– Receive (–)
— Not used
Gnd Ground
— Not used
RX+ Receive (+)
TX+ Transmit (+)
— Not used
AUDIO
4 5
4 5
MTPX Plus Series Setup Guide • Installation
