Connections; Video Connections - Extron electronics HDXP Plus Series User Manual

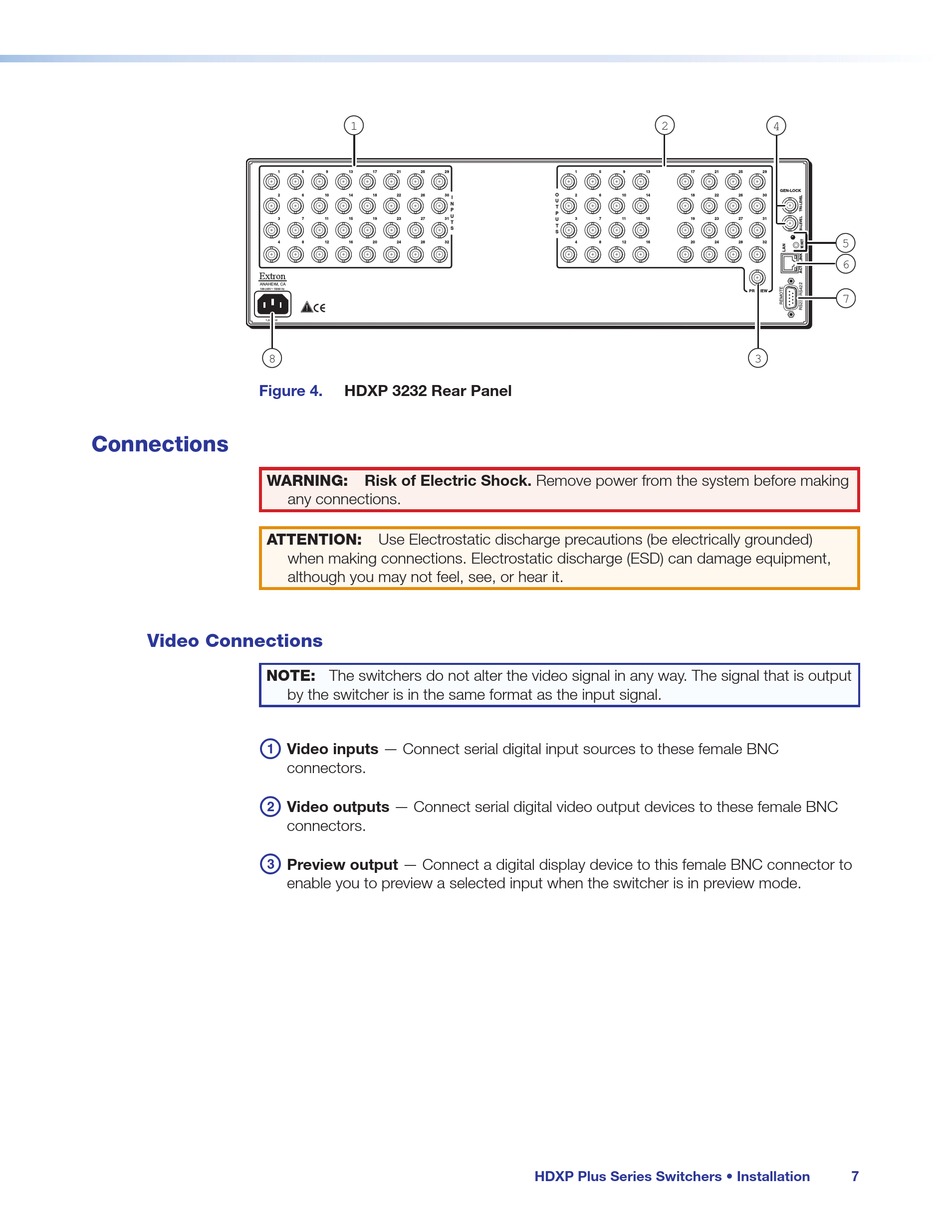

FIG_HDXP 3232 Rear Panel
8
Figure 4.

Connections

WARNING:
ATTENTION:

Video Connections

NOTE: The switchers do not alter the video signal in any way. The signal that is output
a
b
c
1
1 5 9 13 17 21 25 29
2 6 10 14 18 22 26 30
I
N
P
U
3 7 11 15 19 23 27 31
T
S
4 8 12 16 20 24 28 32
HDXP 3232 Rear Panel
Risk of Electric Shock. Remove power from the system before making
any connections.
Use Electrostatic discharge precautions (be electrically grounded)
when making connections. Electrostatic discharge (ESD) can damage equipment,
although you may not feel, see, or hear it.
by the switcher is in the same format as the input signal.
Video inputs — Connect serial digital input sources to these female BNC
connectors.
Video outputs — Connect serial digital video output devices to these female BNC
connectors.
Preview output — Connect a digital display device to this female BNC connector to
enable you to preview a selected input when the switcher is in preview mode.
2
1 5 9 13 17
O
2 6 10 14 18
U
T
P
3 7 11 15 19
U
T
S
4 8 12 16 20
HDXP Plus Series Switchers • Installation
4
21 25 29
GEN-LOCK
22 26 30
23 27 31
5
24 28 32
6
PREVIEW
7
3
7
