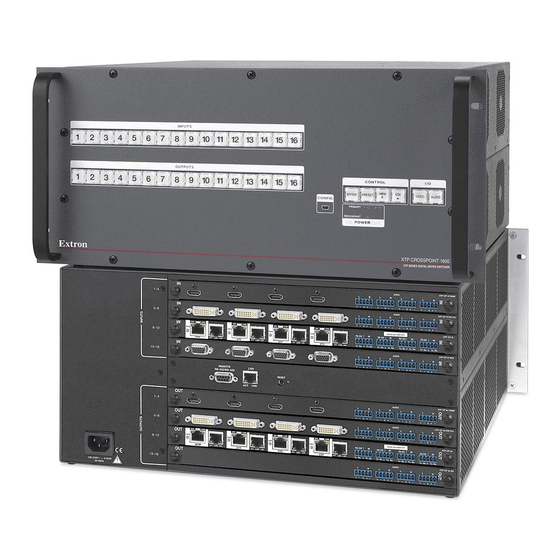

Extron electronics XTP CrossPoint 1600 Setup Manual

Configurable digital video matrix switchers
Hide thumbs Also See for XTP CrossPoint 1600:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Setup Guide
Matrix Switchers
XTP CrossPoint 1600
XTP CrossPoint 3200
Configurable Digital Video Matrix Switchers
68-1736-50 Rev. C
08 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTP CrossPoint 1600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics XTP CrossPoint 1600

Summary of Contents for Extron electronics XTP CrossPoint 1600

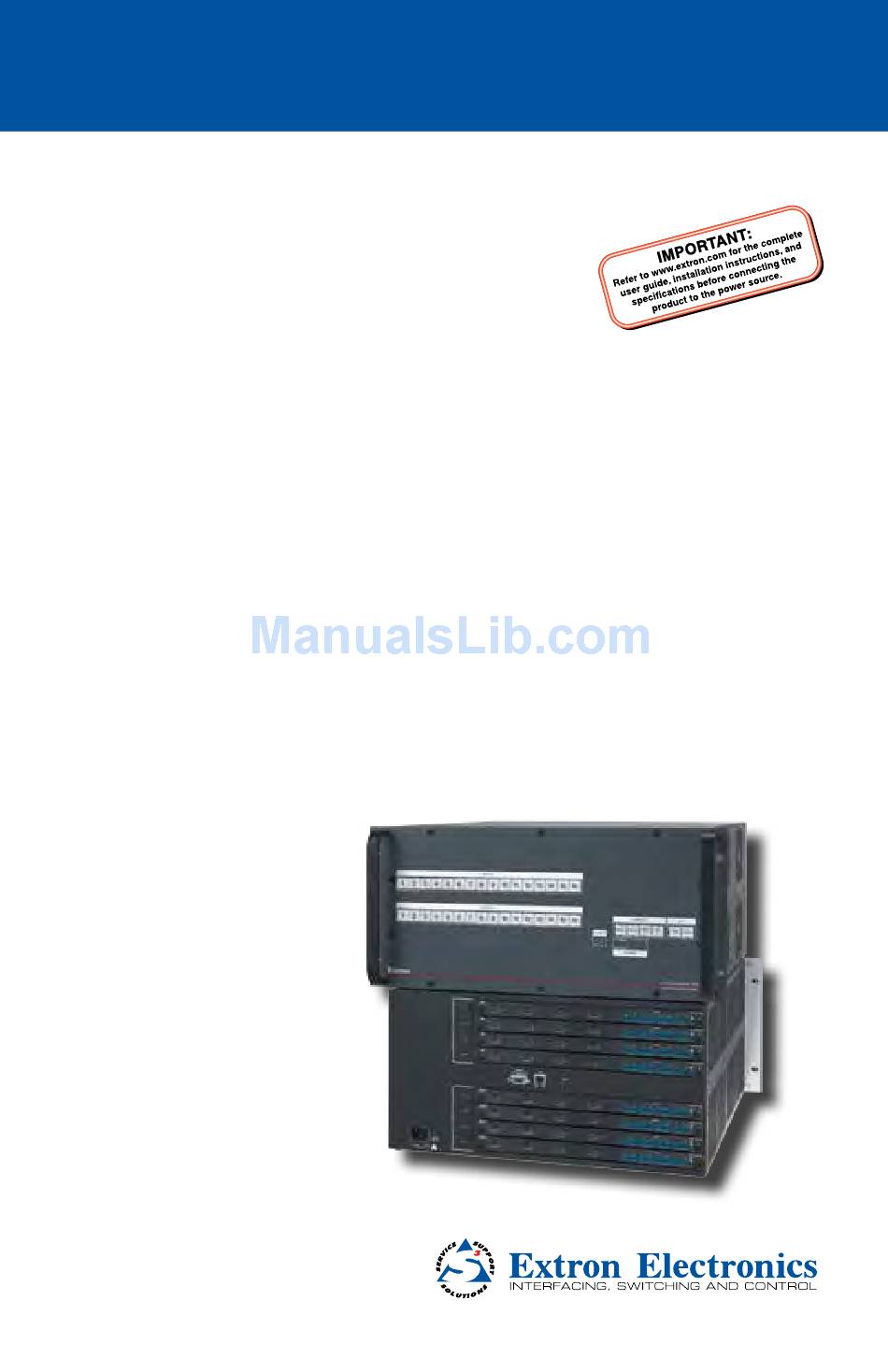

  • Page 1 Setup Guide Matrix Switchers XTP CrossPoint 1600 XTP CrossPoint 3200 Configurable Digital Video Matrix Switchers 68-1736-50 Rev. C 08 13...

  • Page 2: Safety Instructions

    Instrucciones de seguridad • Español FCC Class A Notice Safety Instructions This equipment has been tested and found to comply with the limits ADVERTENCIA: Este símbolo, , cuando se utiliza en el for a Class A digital device, pursuant to part 15 of the FCC rules. The producto, avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un Safety Instructions •...

  • Page 3: Table Of Contents

    Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, PowerCage, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedMount, SpeedNav, TeamWork, Triple-Action Switching, XTRA, ZipCaddy, ZipClip XTP CrossPoint 1600 and 3200 • Contents...

  • Page 4: Introduction

    NOTE: For more information on any subject in this guide, see the XTP CrossPoint 1600 and 3200 Series User Guide, available on the Extron DVD or at www.extron.com. This setup guide helps you to easily and quickly set up and configure your XTP CrossPoint 1600 and 3200 switcher.

  • Page 5: Endpoint Configuration

    XTP CP 4i DVI Pro (DVI Pro inputs) XTP CP 4o DVI Pro (DVI Pro outputs) The XTP CrossPoint 1600 can support up to four input boards and four output boards of any of the type listed in table 1, for a total of 16 inputs XTP CP 4o SA (stereo analog audio and 16 outputs.

  • Page 6: Installation

    (1 - 4, 5 - 8, and so on). On the XTP CrossPoint 1600, boards are installed horizontally, all input boards in the top space and all output boards in the bottom space. Input or output positions are 1 - 4 on top and 13 - 16 on the bottom in their respective space.

  • Page 7: Inputs And Outputs

    13 to wire the connectors). balanced or unbalanced stereo audio inputs to these 3.5 mm, 5-pole captive screw connectors (see Local audio connectors on page 15 to wire the connectors). XTP CrossPoint 1600 and 3200 • Installation XTP CrossPoint 1600 and 3200 • Installation...
  • Page 8 Tx Rx Tx Rx connectors for bidirectional RS-232 and IR communications on the associated inputs (see RS-232 and IR connectors on page 14 to wire the connectors). XTP CrossPoint 1600 and 3200 • Installation XTP CrossPoint 1600 and 3200 • Installation...

  • Page 9: Remote Control

    For different reset levels, press and hold the recessed button while the switcher is running or while you power up the switcher. See the XTP CrossPoint 1600 and 3200 Series User Guide, available DVI connectors — Connect a DVI video on the Extron DVD or at www.extron.com.

  • Page 10: Additional Connector Information

    RJ-45 Connector and Pinout Tables Switcher and XTP board LAN cables The LAN ports require CAT 3, CAT 5e, or CAT 6a, crossover or patch cables. XTP CrossPoint 1600 and 3200 • Installation XTP CrossPoint 1600 and 3200 • Installation...
  • Page 11 Input only sync signals, no video signals, on the sync pins, 13 and 14. ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield it fastens to is very thin and can easily be stripped. XTP CrossPoint 1600 and 3200 • Installation XTP CrossPoint 1600 and 3200 • Installation...

  • Page 12: Front Panel

    The button lights to indicate the selection. • The XTP CrossPoint 1600 has two power supplies installed and indicated in its standard configuration (only two LEDs lit). It is available in a four-power-supply, redundant power upgrade configuration, in which it indicates all four supplies.

  • Page 13: Saving Or Recalling A Preset

    Setting audio output volume • Setting audio/RS-232 wire pair and front panel configuration The switcher is shipped from the factory in Lock mode 2. XTP CrossPoint 1600 and 3200 • Front Panel Operations XTP CrossPoint 1600 and 3200 • Front Panel Operations...

  • Page 14: Viewing And Adjusting The Audio Level

    Selected SIS Commands Press an input or output button. See the “Operation” section of the XTP CrossPoint 1600 and 3200 Series User Guide to read the You can use Simple Instruction Set (SIS) commands for operation and displayed value.

  • Page 15: Number Of Connections

    NOTE: The tables that begin on the next page are a partial list of SIS commands. For a complete listing, see the XTP CrossPoint 1600 and 3200 Series User Guide. Common SIS Command Symbols The following symbols are used throughout the command and response...

  • Page 16: Sis Command And Response Table For Matrix Switcher Commands

    SIS Command and Response Table for Matrix Switcher Commands Command SIS Command Response Additional Description (Host to Unit) (Unit to Host) Create ties • NOTES: Commands can be entered back-to-back in a string, with no spaces. For example: 1*1!02*02&003*003%4*24$. • The matrix switchers support 1-, 2-, and 3-digit numeric entries (1*1!, 02*02&, or 003*003%).
  • Page 17 Command SIS Command Response Additional Description (Host to Unit) (Unit to Host) Tint (available for inputs on an XTP CP 4i VGA universal analog input board only) NOTE: Tint adjustments are available for NTSC S-video, and NTSC composite video inputs. Set a specific tint value Specify the tint adjustment.
  • Page 18 Command SIS Command Response Additional Description (Host to Unit) (Unit to Host) Analog input presets (available for inputs on an XTP CP 4i VGA universal analog input board only) NOTE: Analog input presets are a set of variables that can be saved. For the complete list, see the XTP CrossPoint Switchers User Guide. X&...
  • Page 19 Command SIS Command Response Additional Description (Host to Unit) (Unit to Host) Audio output volume X1%] Set the volume to a specific value •Vol 1*50v Example: Out01•Vol50 Set output 1 volume to 79%. X1%] Increment volume •Vol Increase volume by 1 step. Out01•Vol51 Example: –V...

  • Page 20: Sis Command And Response Table For Xtp T Hdmi

    Command SIS Command Response Additional Description (Host to Unit) (Unit to Host) Information requests X2)] Information request In the response: V is the video matrix size. • is the audio matrix size. X2!] Request part number See the Extron website, www.extron.com, for part numbers.

  • Page 21: Sis Command And Response Table For Xtp R Hdmi And Xtp Sr Hdmi

    Command SIS Command Response Additional Description (Host to Unit to Endpoint) (Endpoint to Unit to Host) List Digital Sync Validation Processing (DSVP) X1& X1& X1& X1& X1& List sync of all inputs 16 or 32 ( s; each is the signal status of an input, starting from input 1.
  • Page 22 Command SIS Command Response Additional Description (Host to Unit to Endpoint) (Endpoint to Unit to Host) Audio mutes Audio mute, HDMI and S/PDIF Mute output embedded digital (audio off). Audio mute, analog Mute output analog (analog audio off). Audio mute, both Mute all output audio (digital and analog audio off).

  • Page 23: Sis Command And Response Table For Xtp T Usw 103

    SIS Command and Response Table for XTP T USW 103 NOTE: These commands allow you to control and monitor the universal switcher endpoint from the matrix switcher. Command SIS Command Response Additional Description (Host to Unit to Endpoint) (Endpoint to Unit to Host) Input video format (available for endpoint input 1 only) Set format Ityp...

  • Page 24: Sis Command And Response Table For Ip-Specific Commands

    Command SIS Command Response Additional Description (Host to Unit to Endpoint) (Endpoint to Unit to Host) Input audio selection NOTE: These commands select between the audio embedded in the digital video stream and the 2-channel analog audio. X1!] Input audio selection AFMT AfmtI Example:...

  • Page 25: Xtp System Configuration Program

    ... box, and then click OK . • For details on operating the switcher via HTML pages, see the "HTML Operation" section in the XTP CrossPoint 1600 and 3200 User Guide. Start the web browser program. Click in the Address field.

  • Page 26: Configuration

    For a board, orient the board to be installed horizontally (XTP CrossPoint 1600) or vertically (XTP CrossPoint 3200) and so that the IN or OUT silkscreen on the back panel is right side up. For a board, align the board with the left and right chassis guides (above).
  • Page 27 Align with Plastic Guides P CP Knurled Knobs XTP CrossPoint 1600 and 3200 • Configuration...
  • Page 28 In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
  • Page 29 +1.919.850.1001 FAX +81.3.3511.7655 +4000.EXTRON +81.3.3511.7656 FAX +4000.398766 Inside China Only Extron Asia Extron Middle East Extron Korea +800.7339.8766 +971.4.2991800 +82.2.3444.1571 +86.21.3760.1568 Inside Asia Only +971.4.2991880 FAX +82.2.3444.1575 FAX +86.21.3760.1566 FAX +65.6383.4400 +65.6383.4664 FAX © 2013 Extron Electronics All rights reserved. www.extron.com...

This manual is also suitable for:

Xtp crosspoint 3200
