The switcher initiates the login message when a correct administrator or user password
has been entered. If the user and administrator passwords are the same, the switcher
defaults to administrator privileges.
Qik
The switcher initiates the Qik message when a front panel switching or preset recall
operation has occurred.
Sprnn
The switcher initiates the Spr message when a memory preset has been saved from the
front panel.
Vmtnn *x
The switcher initiates the Vmt message when a video output mute is toggled on or off
from the front panel.
1
Exen
The switcher initiates the Exe message when executive mode is toggled on or off from the
front panel.

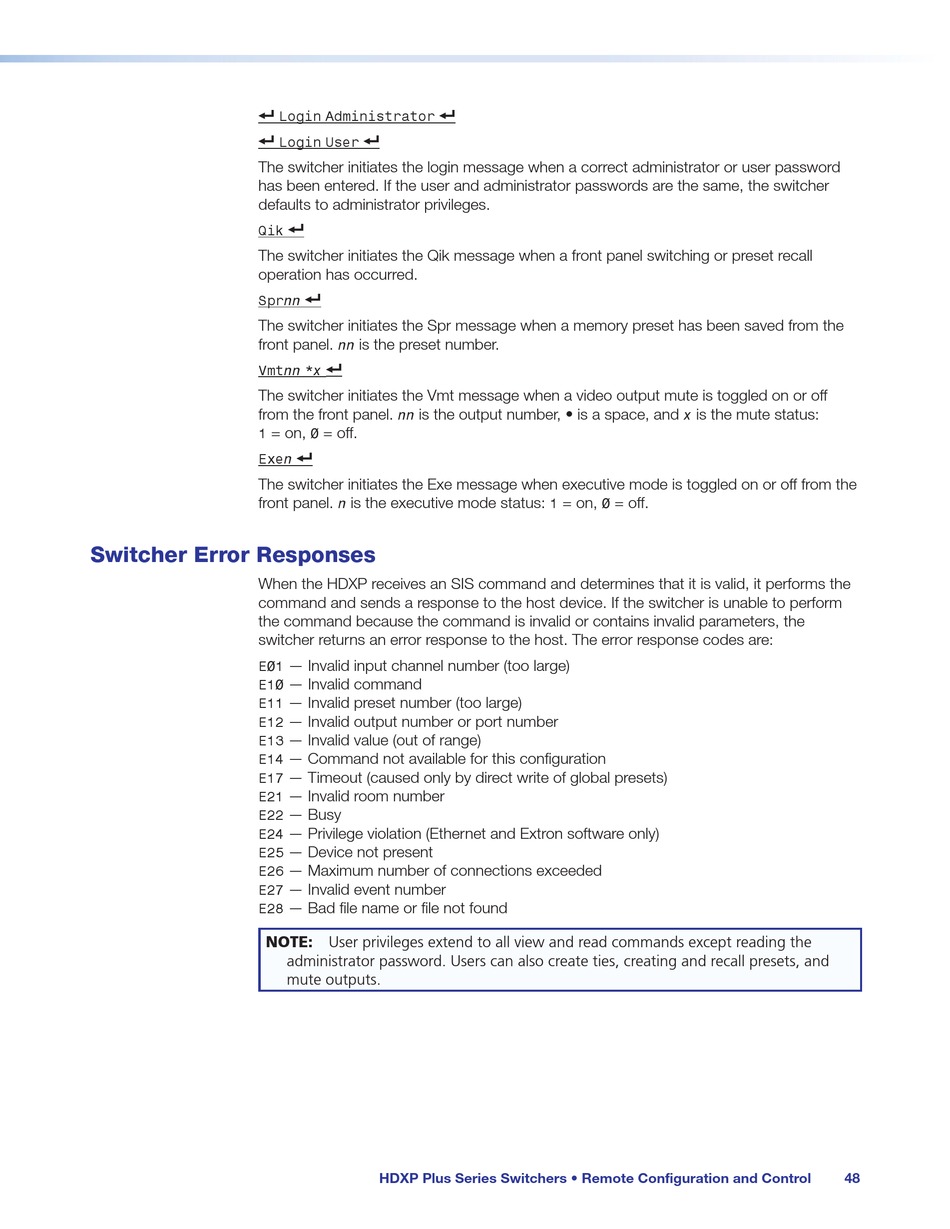

Switcher Error Responses

When the HDXP receives an SIS command and determines that it is valid, it performs the
command and sends a response to the host device. If the switcher is unable to perform
the command because the command is invalid or contains invalid parameters, the
switcher returns an error response to the host. The error response codes are:
E01
E10
E11
E12
E13
E14
E17
E21
E22
E24
E25
E26
E27
E28
NOTE: User privileges extend to all view and read commands except reading the
]
Login Administrator
]
Login User
]
]
is the preset number.
nn
]
is the output number, • is a space, and
nn
= on, = off.
0
]
is the executive mode status:
n
— Invalid input channel number (too large)
— Invalid command
— Invalid preset number (too large)
— Invalid output number or port number
— Invalid value (out of range)
— Command not available for this configuration
— Timeout (caused only by direct write of global presets)
— Invalid room number
— Busy
— Privilege violation (Ethernet and Extron software only)
— Device not present
— Maximum number of connections exceeded
— Invalid event number
— Bad file name or file not found
administrator password. Users can also create ties, creating and recall presets, and
mute outputs.
HDXP Plus Series Switchers • Remote Configuration and Control
is the mute status:
x
= on, = off.
1 0
