I/O Grouping

I/O grouping is a matrix switcher feature that allows you to subdivide the front panel
control of the matrix into four smaller functional sub-switchers and limit tie creation from
the front panel only. Inputs and outputs can be assigned to one of four groups or not
assigned to any group.
Inputs and outputs that are assigned to a group can be tied only to other outputs and
inputs within the same group when you are creating ties on the front panel. For example,
you cannot tie an input that is assigned to group 1 to an output that is assigned to
group 2. Ungrouped inputs and outputs can be switched to outputs and inputs in any
group. Ties between groups (for example, an input in group 1 tied to an output in group 2)
can be created via SIS commands, the Matrix Switcher Control Program, or Ethernet
control.
You can set up the I/O groups by the following methods:
• Front panel buttons and menus (see
• SIS commands via RS-232, RS-422, or Ethernet control (see the
Configuration and Control
• The Matrix Switcher Control Program via Telnet/RS-232/RS-422 or IP control (see the
Matrix Software
HDXP 3232 only: Outputs assigned to I/O group 1 reference the bi-level genlock sync
signal for vertical interval switching; outputs assigned to I/O group 2 reference the tri-level
genlock sync signal.

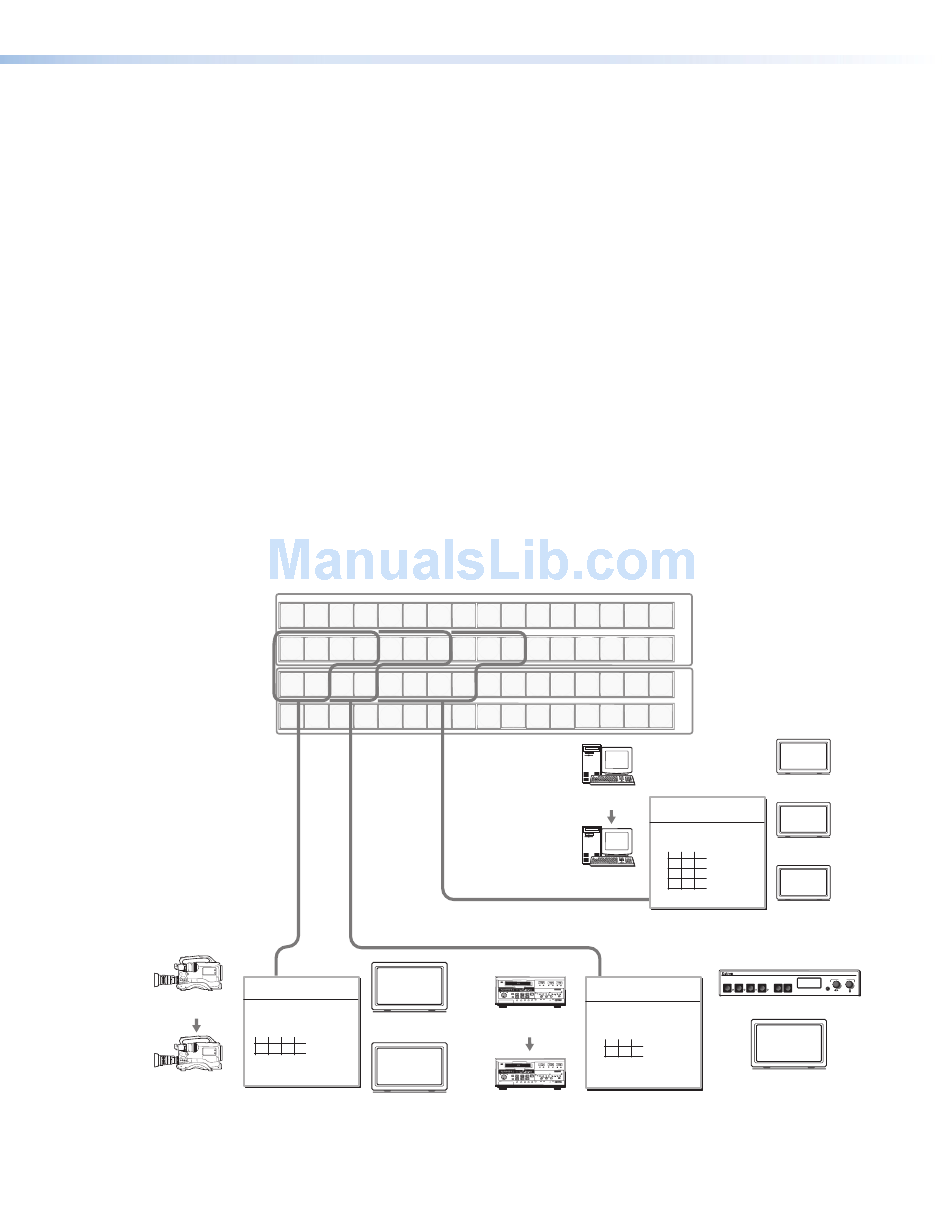

Figure 36 gives an example of input-output grouping of SDI and HD-SDI devices on an
HDXP 3232.
1 2 3 4 5 6 7 8 9 10 11 12
17 18 19 20 21 22 23 24 25 26 27 28
1 2 3 4 5 6 7 8 9 10 11 12
17 18 19 20 21 22 23 24 25 26 27 28
Group 1
4 input, 2 output
SDI/HD-SDI matrix
SDI/HD-SDI
Camera #1
Input
17 18 19 20
1
Output
2
Group 1
SDI/HD-SDI
Camera #4
Figure 36.
section beginning on page 45)
section beginning on page 67)
Group 2 Group 3
SDI/HD-SDI VTR
SDI/HD-SDI
(MPEG-2/JPEG 2000) #1
Monitor
SDI/HD-SDI VTR
SDI/HD-SDI
(MPEG-2/JPEG 2000) #3
Monitor
I/O Grouping of Incompatible Video Formats
Creating I/O groups on page 27)
13 14 15 16
I
N
P
U
29 30 31 32
T
S
O
13 14 15 16
U
T
P
U
29 30 31 32
T
S
Editing Station
3 input, 4 output
SDI/HD-SDI #1
SDI/HD-SDI matrix
Input
24 25 26
5
6
Editing Station
7
SDI/HD-SDI #3
8
Group 3
3 input, 2 output
SDI/HD-SDI matrix
Input
21 22 23
3
Output
4
Group 2
HDXP Plus Series Switchers • Operation
Remote
SDI/HD-SDI
Monitor
SDI/HD-SDI
Monitor
Output
SDI/HD-SDI
Monitor
DVS 304 IP
DIGITAL VIDEO SCALER
ADJUST
1 2 3 4 MENU NEXT
IR
DVS 304 (SDI only)
SDI/HD-SDI
Monitor
