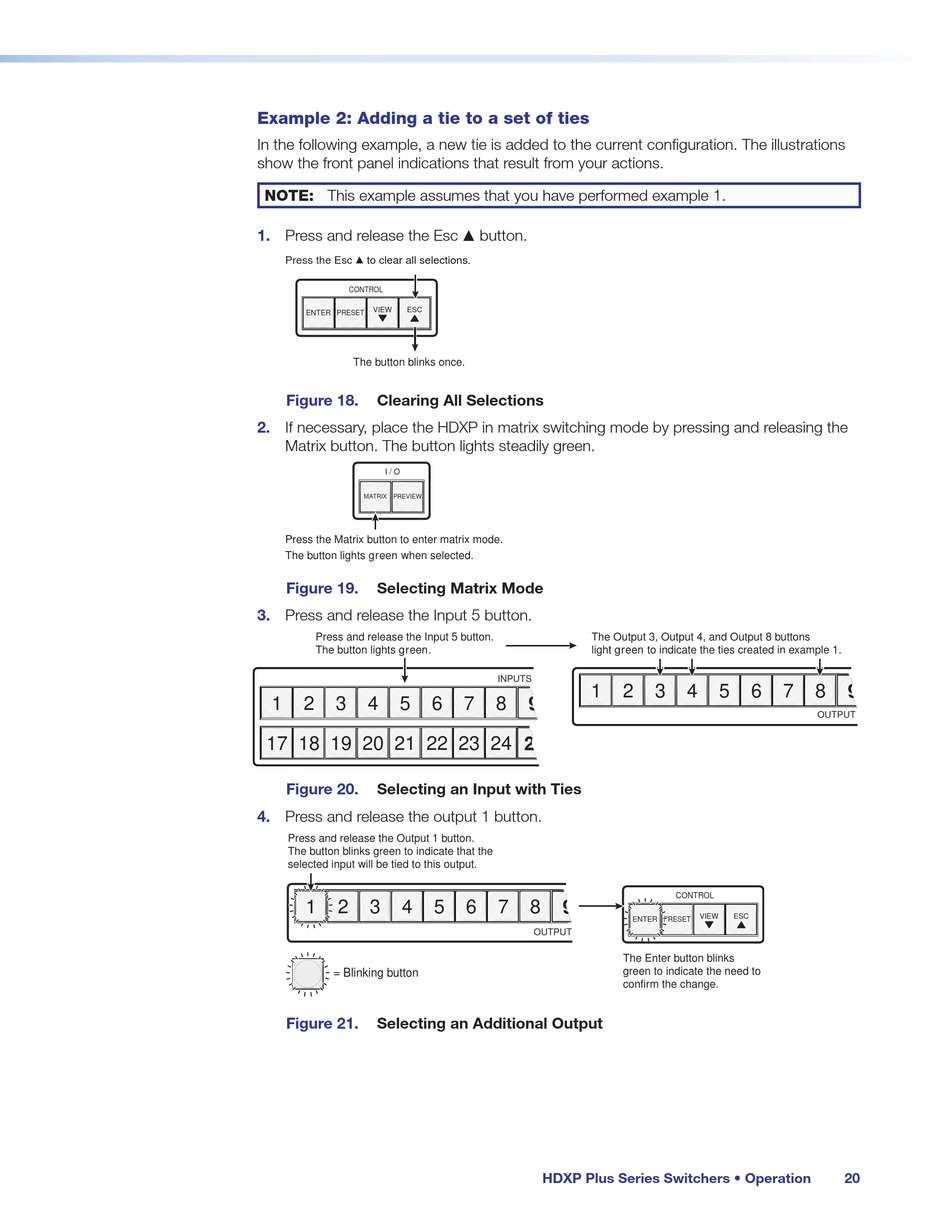

Example 2: Adding a tie to a set of ties
In the following example, a new tie is added to the current configuration. The illustrations
show the front panel indications that result from your actions.
NOTE: This example assumes that you have performed example 1.
1. Press and release the Esc
>
Press the Esc to clear all selections.
CONTROL
VIEW ESC
ENTER PRESET
The button blinks once.
Figure 18. Clearing All Selections
2. If necessary, place the HDXP in matrix switching mode by pressing and releasing the
Matrix button. The button lights steadily green.
I / O
MATRIX PREVIEW
Press the Matrix button to enter matrix mode.
The button lights green when selected.
Figure 19. Selecting Matrix Mode
3. Press and release the Input 5 button.
Press and release the Input 5 button.
The button lights green.
1 2 3 4 5 6
17 18 19 20 21 22 23 24
Figure 20. Selecting an Input with Ties
4. Press and release the output 1 button.
Press and release the Output 1 button.
The button blinks green to indicate that the
selected input will be tied to this output.
1 2 3 4 5
= Blinking button
Figure 21. Selecting an Additional Output
>
button.
The Output 3, Output 4, and Output 8 buttons
light green to indicate the ties created in example 1.
INPUTS
1 2
7 8
6 7 8
ENTER
OUTPUT
The Enter button blinks
green to indicate the need to
confirm the change.
