Configuration Worksheets

Rather than trying to remember the configuration for each preset, use worksheets to
record this information. Make copies of the blank worksheet at the end of this section,
and use one for each preset configuration. Cross out all unused or inactive inputs and
outputs. The worksheet is generic for all models of HDXP. Disregard or cross out boxes
for inputs and outputs that your switcher does not have.

Worksheet Example 1: System Equipment

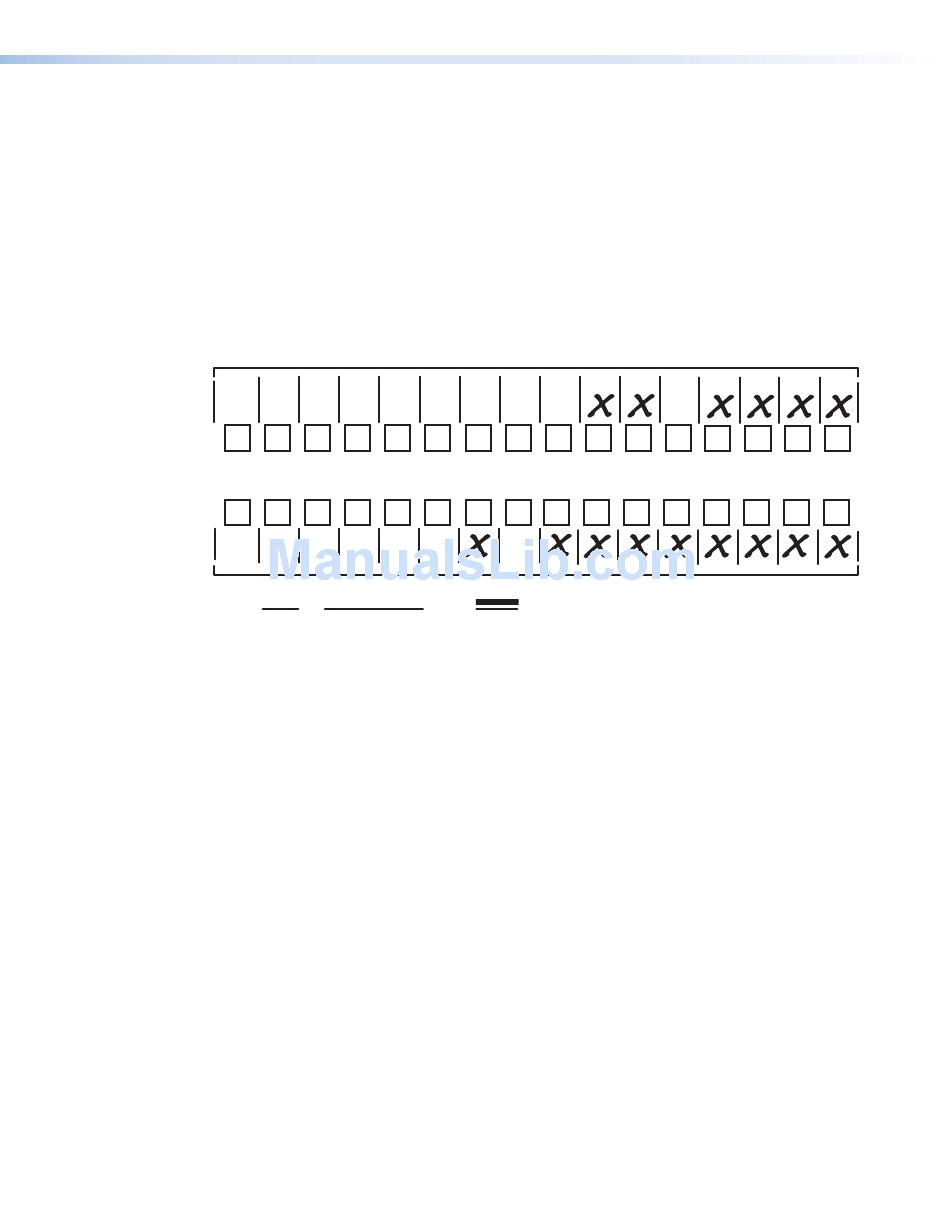

Figure 64 shows a worksheet for an HDXP in a fictional organization with the system
hardware annotated. Inputs 10, 11, and 13 – 16 have no connection in this organization,
so they have been crossed out on the worksheet.
SDI/ SDI/
HD-SDI HD-SDI
Camera
Camera #1
Main
podium
1 1
1
Main hall Main hall
#1
Preset #
Fill in the preset number and use colors, or dashes, etc. to make connecting lines.
Figure 64.
Inputs include VTRs, editing stations, SDI/HD-SDI cameras, and an Extron VTG 400.
Output devices include various SDI/HD-SDI monitors.
The VTG 400 video test generator connected to input 12 enables a video test pattern
to be sent to one, several, or all output devices for problem isolation or adjustment
purposes.
SDI/ VTR VTR VTR
HD-SDI #1 #2 #3
Camera
#2 #3
2 3 4 5 6
2 3 4 5 6
Podium Conf. Podium Demo
#2 monitor Room monitor Room
#1 #2
3 Weekly status mtg
Title: Video ties:
Worksheet Example 1: System Equipment
Input sources
Editing Editing
Editing
Station
Station Station
#1 #2 #3
7 8 9 10 11
7 8 9 10 11
Lobby
monitor
Output destinations
