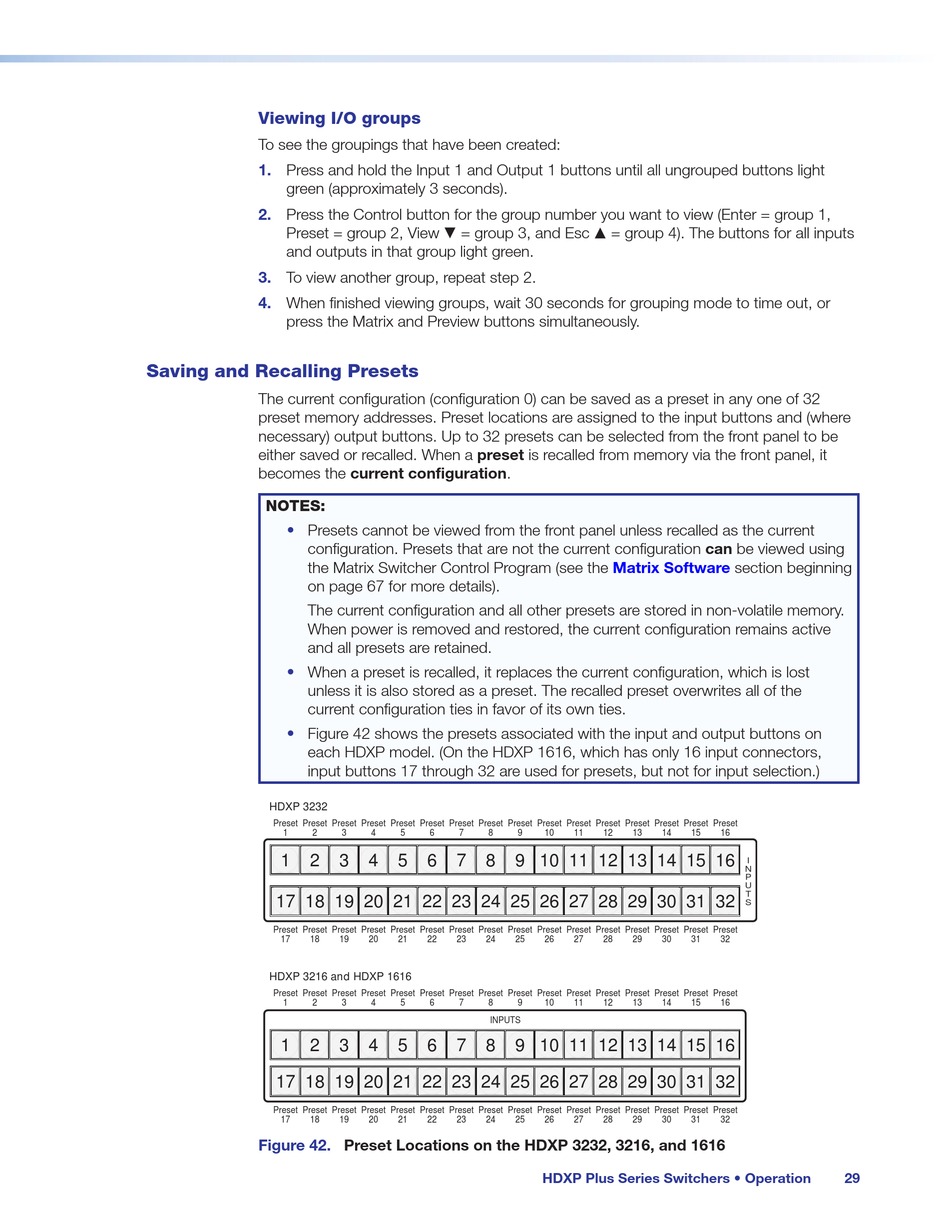

Viewing I/O groups
To see the groupings that have been created:
1. Press and hold the Input 1 and Output 1 buttons until all ungrouped buttons light
green (approximately 3 seconds).
2. Press the Control button for the group number you want to view (Enter = group 1,
Preset = group 2, View
and outputs in that group light green.
3. To view another group, repeat step 2.
4.
When finished viewing groups, wait 30 seconds for grouping mode to time out, or
press the Matrix and Preview buttons simultaneously.

Saving and Recalling Presets

The current configuration (configuration 0) can be saved as a preset in any one of 32
preset memory addresses. Preset locations are assigned to the input buttons and (where
necessary) output buttons. Up to 32 presets can be selected from the front panel to be
either saved or recalled. When a preset is recalled from memory via the front panel, it
becomes the current configuration.
NOTES:
•
Presets cannot be viewed from the front panel unless recalled as the current
configuration. Presets that are not the current configuration can be viewed using
the Matrix Switcher Control Program (see the
on page 67 for more details).
The current configuration and all other presets are stored in non-volatile memory.
When power is removed and restored, the current configuration remains active
and all presets are retained.
• When a preset is recalled, it replaces the current configuration, which is lost
unless it is also stored as a preset. The recalled preset overwrites all of the
current configuration ties in favor of its own ties.
• Figure 42 shows the presets associated with the input and output buttons on
each HDXP model. (On the HDXP 1616, which has only 16 input connectors,
input buttons 17 through 32 are used for presets, but not for input selection.)
HDXP 3232
Preset Preset
1 2
1 2
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Preset Preset
17 18
HDXP 3216 and HDXP 1616
Preset Preset
1 2
1 2
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Preset Preset
17 18
Figure 42.
<
= group 3, and Esc
Preset Preset Preset Preset Preset Preset Preset
3 4 5 6 7 8
3 4 5 6 7 8
Preset Preset Preset Preset Preset Preset Preset
19 20 21 22 23 24
Preset Preset Preset Preset Preset Preset Preset
3 4 5 6 7 8
INPUTS
3 4 5 6 7 8
Preset Preset Preset Preset Preset Preset Preset
19 20 21 22 23 24
Preset Locations on the HDXP 3232, 3216, and 1616
>
= group 4). The buttons for all inputs
Matrix Software
Preset Preset Preset Preset Preset Preset
9 10 11 12 13 14 15
9 10 11 12 13 14 15 16
Preset Preset Preset Preset Preset Preset
25 26 27 28 29 30 31
Preset Preset Preset Preset Preset Preset
9 10 11 12 13 14 15
9 10 11 12 13 14 15 16
Preset Preset Preset Preset Preset Preset
25 26 27 28 29 30 31
HDXP Plus Series Switchers • Operation
section beginning
Preset
16
I
N
P
U
T
S
Preset
32
Preset
16
Preset
32
