System Settings Page

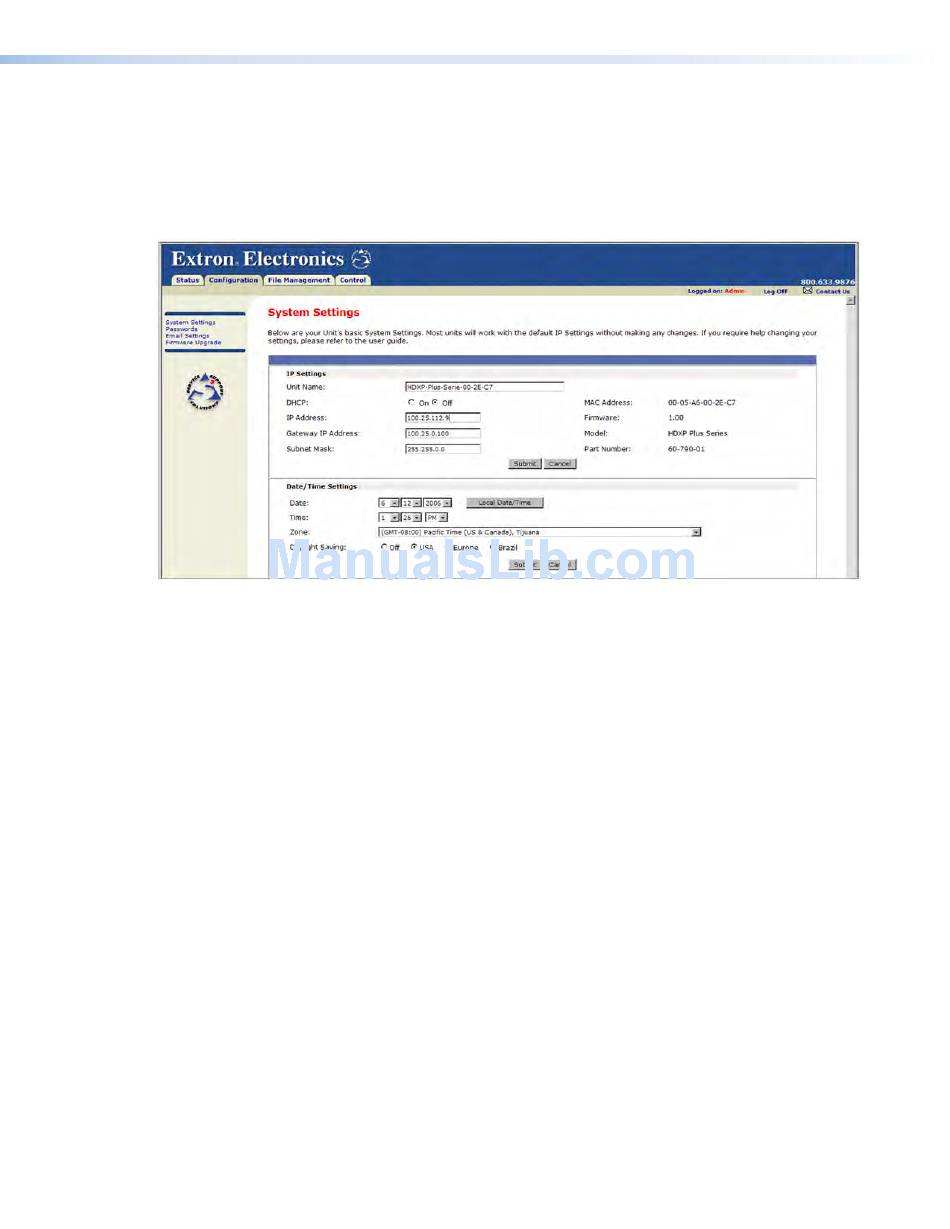

The HDXP switcher displays the System Settings page (shown in figure 97) when you
click the
edit IP administration and system settings. The Email Settings and Passwords pages can
be accessed by clicking the appropriate link on the sidebar menu (see
Address
Figure 97.
On password-protected connections, there are two levels of protection: administrator and
user. Administrators have full access to all switching capabilities and editing functions.
Users can create ties, create and recall presets, and view all settings with the exception of
passwords.
•
•
tab. The screen consists of fields in which you can view and
Configuration
on page 113 for basic information about IP addresses and subnetting).
System Settings (Configuration)
The Ethernet connection to the switcher, either entering SIS commands (see the
Remote Configuration and Control
Extron Matrix Switcher Control Program (see the
on page 67) is password-protected.
Connection via the RS232/RS422 port is not password-protected.
HDXP Plus Series Switchers • HTML Configuration and Control
section beginning on page 45) or using the
Matrix Software
Setting an IP
section beginning
99
