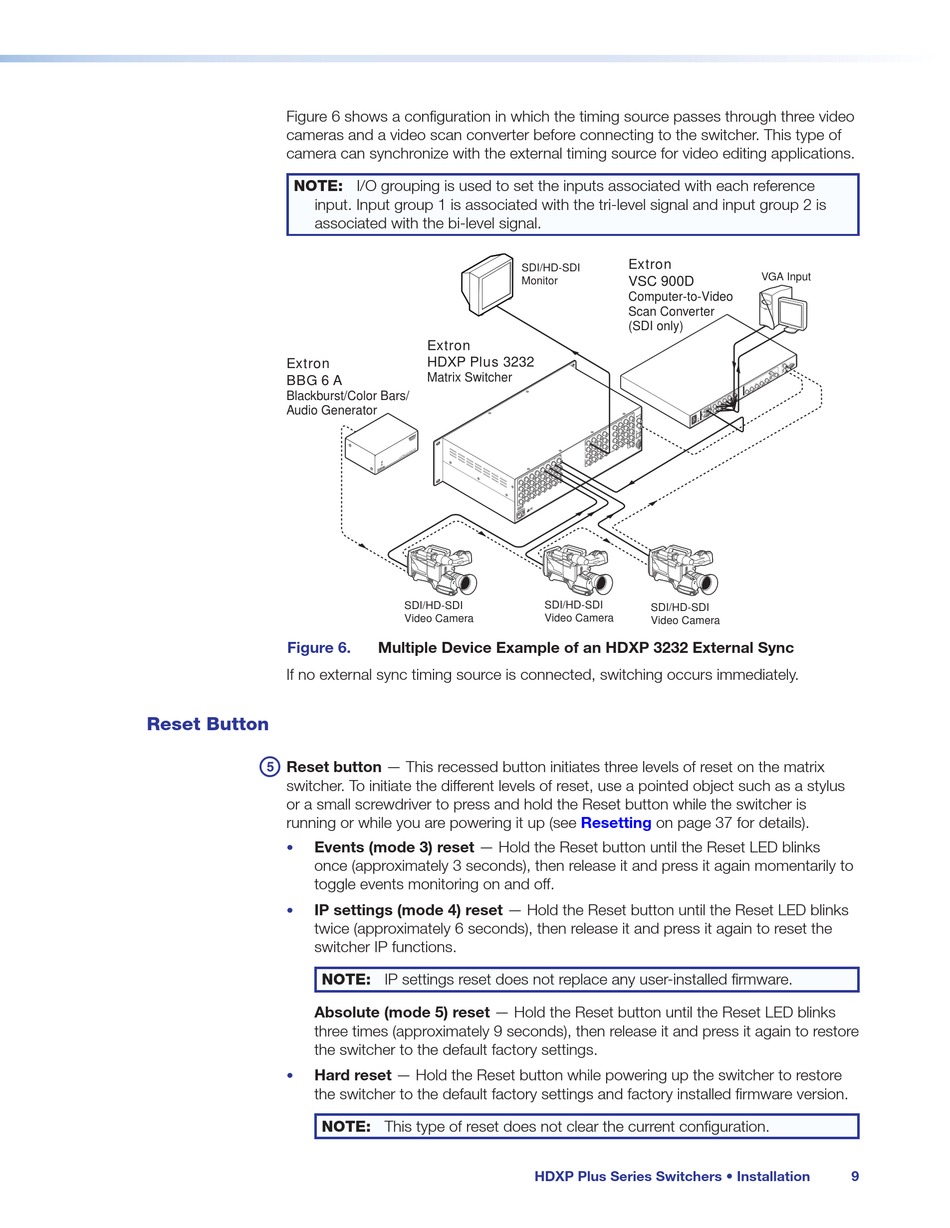

Figure 6 shows a configuration in which the timing source passes through three video
cameras and a video scan converter before connecting to the switcher. This type of
camera can synchronize with the external timing source for video editing applications.
NOTE: I/O grouping is used to set the inputs associated with each reference
input. Input group 1 is associated with the tri-level signal and input group 2 is
associated with the bi-level signal.
Extron
BBG 6 A
Blackburst/Color Bars/
Audio Generator
Figure 6.
If no external sync timing source is connected, switching occurs immediately.

Reset Button

e
Reset button — This recessed button initiates three levels of reset on the matrix
switcher. To initiate the different levels of reset, use a pointed object such as a stylus
or a small screwdriver to press and hold the Reset button while the switcher is
running or while you are powering it up (see
Events (mode 3) reset — Hold the Reset button until the Reset LED blinks
•
once (approximately 3 seconds), then release it and press it again momentarily to
toggle events monitoring on and off.
IP settings (mode 4) reset — Hold the Reset button until the Reset LED blinks
•
twice (approximately 6 seconds), then release it and press it again to reset the
switcher IP functions.
NOTE: IP settings reset does not replace any user-installed firmware.
Absolute (mode 5) reset — Hold the Reset button until the Reset LED blinks
three times (approximately 9 seconds), then release it and press it again to restore
the switcher to the default factory settings.
Hard reset — Hold the Reset button while powering up the switcher to restore
•
the switcher to the default factory settings and factory installed firmware version.
NOTE: This type of reset does not clear the current configuration.
SDI/HD-SDI
Monitor
Extron
HDXP Plus 3232
Matrix Switcher
25
21
17 26
13 22
9 18 27
5 14 23
1 10 19 28
6 15 24
20
2 11
7 16
3 12
8
4
SDI/HD-SDI
SDI/HD-SDI
Video Camera
Video Camera
Multiple Device Example of an HDXP 3232 External Sync
HDXP Plus Series Switchers • Installation
Extron
VSC 900D
Computer-to-Video
Scan Converter
(SDI only)
V
H
/HV V
2 B /B- Y
H
G /HV
/Y
B Y
R /B-
/R- Y Y
G- , Y
B-Y
-Y,
1 R /R- Y B/R
RG
I
0.3A N
29 V P
LO CK 100 -240 U
N- T RG B
25 GE S
21 14
17 10
0 Hz
50/6
6 15
13 2 11
9 7 16
5 14 3 12
1 10 8
6 15
4
2 11
EV IEW
O PR
7 16
U
T
3 12
P
U
8
T
29
S 4
I
30
N
P
U
31 T
S
32
SDI/HD-SDI
Video Camera
Resetting on page 37 for details).
VGA Input
2
IN -23
RS /42 2
G
E OU T
N
L
O
D1 C
EO K
VID
O
S-V IDE
V
-Y
H/H
-Y
B/B
G/Y
O
U -Y
T R/R
P
U
T
S
9
