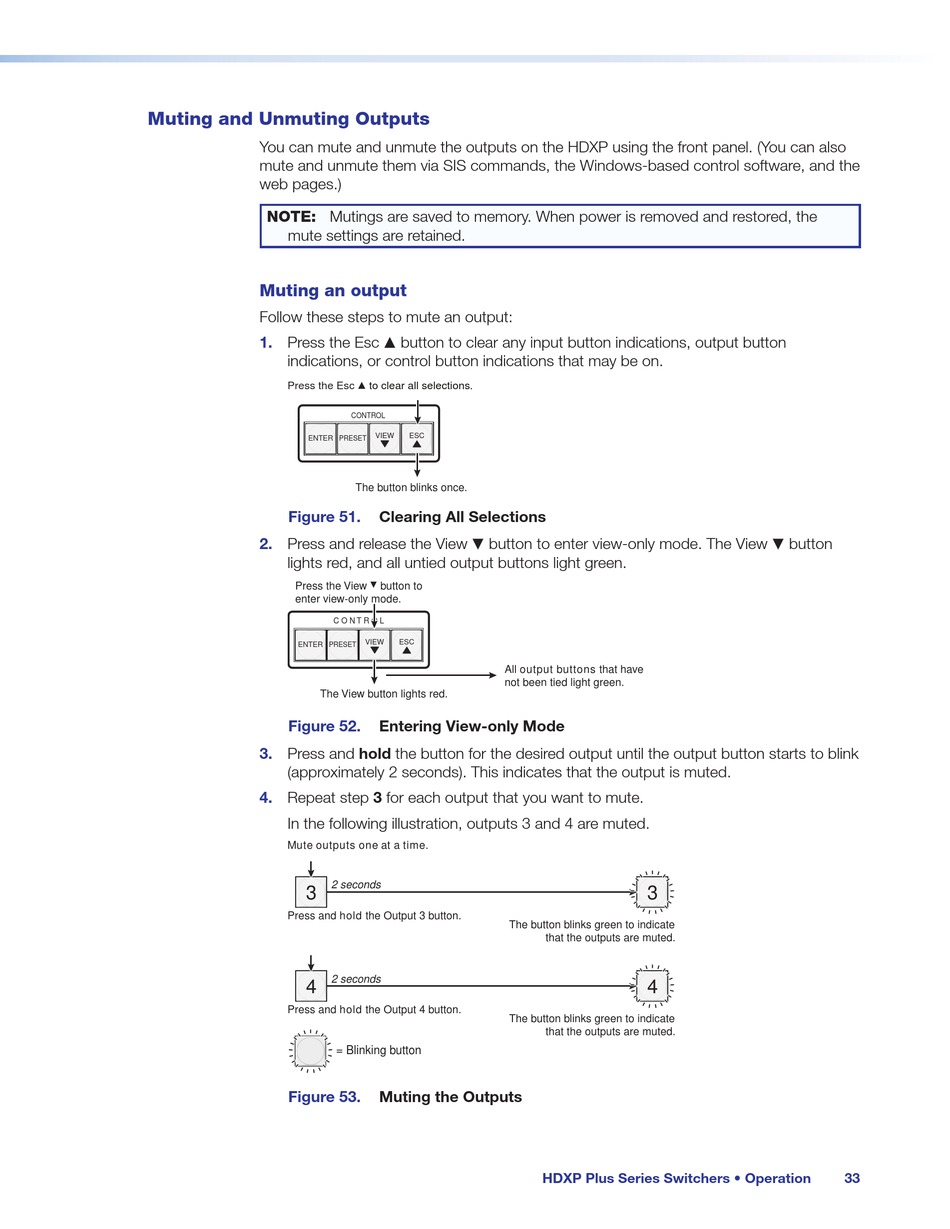

Muting and Unmuting Outputs

You can mute and unmute the outputs on the HDXP using the front panel. (You can also
mute and unmute them via SIS commands, the Windows-based control software, and the
web pages.)
NOTE: Mutings are saved to memory. When power is removed and restored, the
mute settings are retained.
Muting an output
Follow these steps to mute an output:
1. Press the Esc
indications, or control button indications that may be on.
Press the Esc
ENTER
Figure 51.
2. Press and release the View
lights red, and all untied output buttons light green.
Press the View
enter view-only mode.
ENTER
The View button lights red.
Figure 52.
3. Press and hold the button for the desired output until the output button starts to blink
(approximately 2 seconds). This indicates that the output is muted.
4. Repeat step 3 for each output that you want to mute.
In the following illustration, outputs 3 and 4 are muted.
Mute outputs one at a time.
3
Press and hold the Output 3 button.
4
Press and hold the Output 4 button.
Figure 53.
>
button to clear any input button indications, output button
>
to clear all selections.
CONTROL
VIEW ESC
PRESET
The button blinks once.
Clearing All Selections
<
button to enter view-only mode. The View
<
button to
C O N T R O L
VIEW ESC
PRESET
All output buttons that have
not been tied light green.
Entering View-only Mode
2 seconds
2 seconds
= Blinking button
Muting the Outputs
3
The button blinks green to indicate
that the outputs are muted.
4
The button blinks green to indicate
that the outputs are muted.
