■ Remote jack (CI-V) information

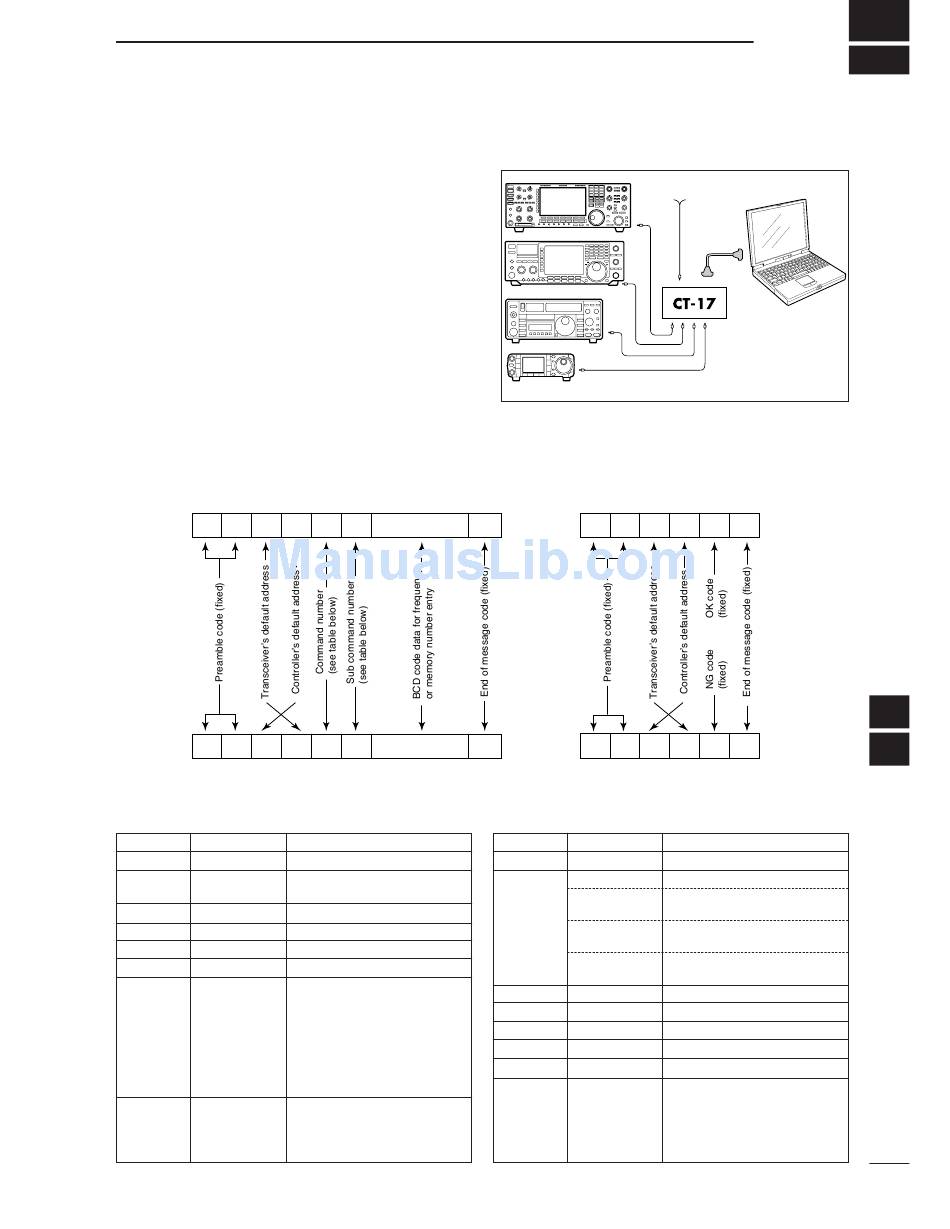

D CI-V connection example

The transceiver can be connected through an optional
CT-17 -
CI V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cation interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to four Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 82 for setting the CI-V condition
using initial set mode.

D Data format

The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area is added for some com-
mands.
CONTROLLER TO IC-7000
FE FE 70 E0 Cn Sc
FE FE E0 70
IC-7000 TO CONTROLLER

D Command table

Command Sub command
00 — Send frequency data
01 Same as Send mode data
command 06
02 — Read band edge frequencies
03 — Read operating frequency
04 — Read operating mode
05 — Set operating frequency
06 00 Select LSB
01 Select USB
02 Select AM
03 Select CW
04 Select RTTY
05 Select FM
07 Select CW-R
08 Select RTTY-R
07 — Select VFO mode
00 Select VFO A
01 Select VFO B
A0 Equalize VFO A and VFO B

CONTROL COMMAND

to a personal computer
Data area FD
Cn Sc Data area FD
Description
9–15 V DC
mini-plug cable
IC-7000
OK MESSAGE TO CONTROLLER
FE FE 70 E0 FB FD
FE FE 70 E0 FA FD
NG MESSAGE TO CONTROLLER
Command Sub command
07 B0 Exchange VFO A and VFO B
08 — Select memory mode
0001–0105* Select memory channel
*P1=0100, P2=0101
0106, 0107 Select the call channel
(C1=0106, C2=0107)
A0 Set the bank number
(1=A, 2=B, 3=C, 4=D, 5=E)
09 — Memory write
0A — Memory to VFO
0B — Memory clear
0C — Read offset frequency
0D — Set offset frequency
0E 00 Scan stop
01 Programmed/memory scan start
02 Programmed scan start
22 Memory scan start
23 Select memory scan start
17
Personal
computer
16
17
Description
