4
RECEIVE AND TRANSMIT

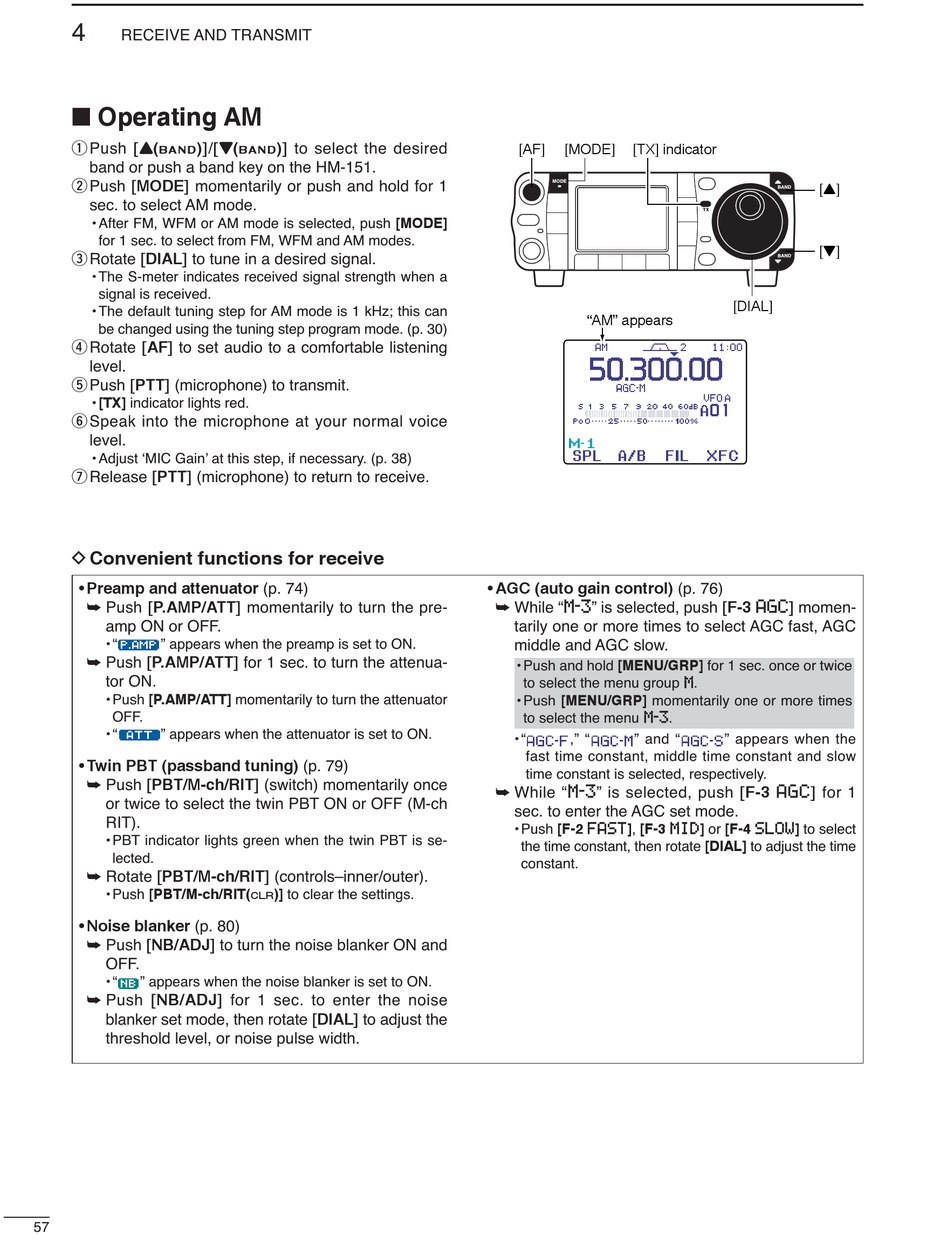

■ Operating AM

q Push [Y(
)]/[Z(
BAND
band or push a band key on the HM-151.
w Push [MODE] momentarily or push and hold for 1
sec. to select AM mode.
• After FM, WFM or AM mode is selected, push [MODE]
for 1 sec. to select from FM, WFM and AM modes.
e Rotate [DIAL] to tune in a desired signal.
• The S-meter indicates received signal strength when a
signal is received.
• The default tuning step for AM mode is 1 kHz; this can
be changed using the tuning step program mode. (p. 30)
r Rotate [AF] to set audio to a comfortable listening
level.
t Push [PTT] (microphone) to transmit.
• [TX] indicator lights red.
y Speak into the microphone at your normal voice
level.
• Adjust 'MIC Gain' at this step, if necessary. (p. 38)
u Release [PTT] (microphone) to return to receive.

D Convenient functions for receive

• Preamp and attenuator (p. 74)
➥ Push [P.AMP/ATT] momentarily to turn the pre-
amp ON or OFF.
• " " appears when the preamp is set to ON.
➥ Push [P.AMP/ATT] for 1 sec. to turn the attenua-
tor ON.
• Push [P.AMP/ATT] momentarily to turn the attenuator
OFF.
• " " appears when the attenuator is set to ON.
• Twin PBT (passband tuning) (p. 79)
➥ Push [PBT/M-ch/RIT] (switch) momentarily once
or twice to select the twin PBT ON or OFF (M-ch
RIT).
• PBT indicator lights green when the twin PBT is se-
lected.
➥ Rotate [PBT/M-ch/RIT] (controls–inner/outer).
• Push [PBT/M-ch/RIT(
• Noise blanker (p. 80)
➥ Push [NB/ADJ] to turn the noise blanker ON and
OFF.
• " " appears when the noise blanker is set to ON.
➥ Push [NB/ADJ] for 1 sec. to enter the noise
blanker set mode, then rotate [DIAL] to adjust the
threshold level, or noise pulse width.
57
)] to select the desired
BAND
)] to clear the settings.
CLR
[AF] [MODE] [TX] indicator
"AM" appears
• AGC (auto gain control) (p. 76)
➥ While "M-3" is selected, push [F-3 AGC] momen-
tarily one or more times to select AGC fast, AGC
middle and AGC slow.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group M.
• Push [MENU/GRP] momentarily one or more times
to select the menu M-3.
• " ," " " and "
fast time constant, middle time constant and slow
time constant is selected, respectively.
➥ While "M-3" is selected, push [F-3 AGC] for 1
sec. to enter the AGC set mode.
• Push [F-2 FAST], [F-3 MID] or [F-4 SLOW] to select
the time constant, then rotate [DIAL] to adjust the time
constant.
[Y]
[Z]
[DIAL]
" appears when the
