INSTALLATION AND CONNECTIONS

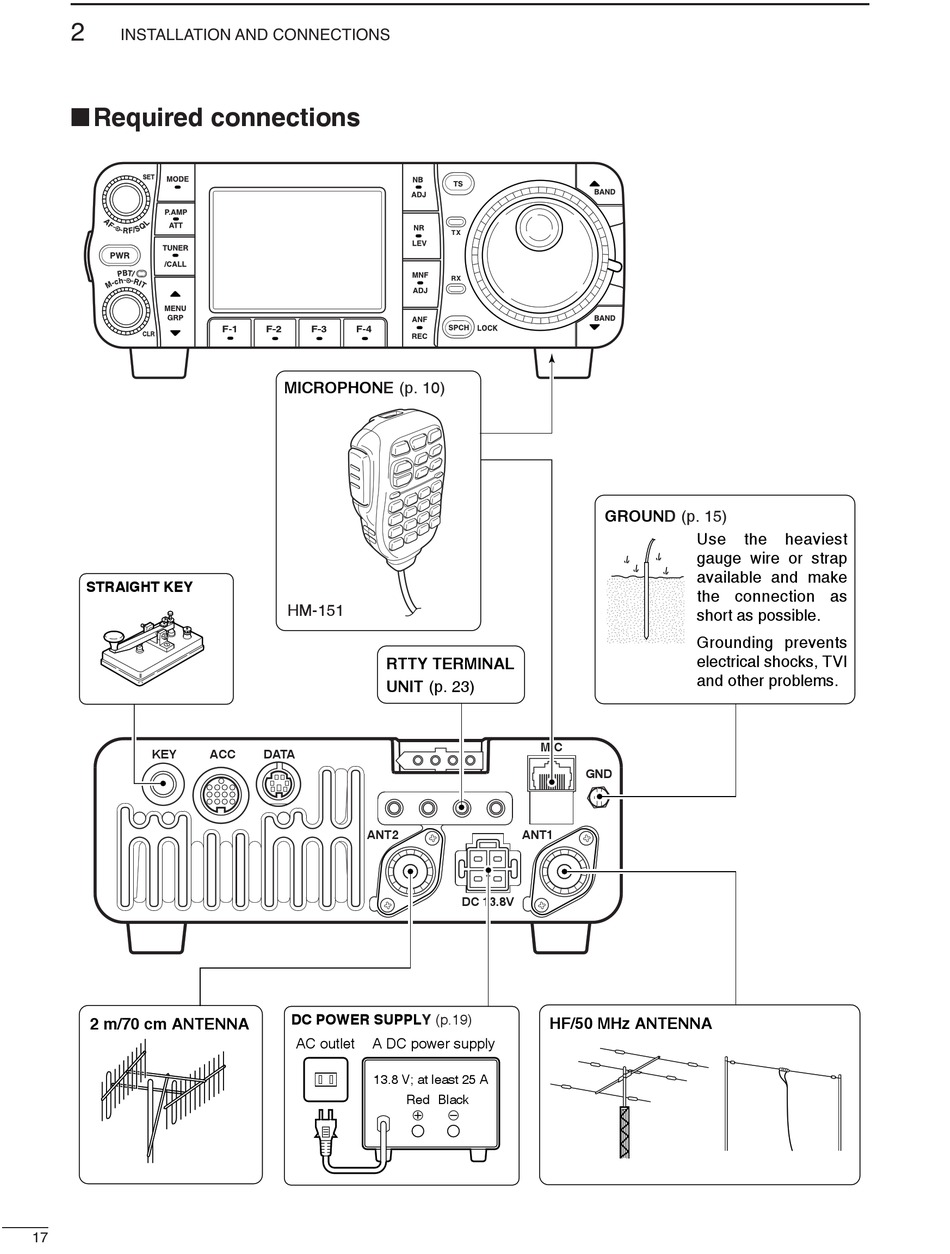

■ Required connections

STRAIGHT KEY
KEY ACC
2 m/70 cm ANTENNA
17
MICROPHONE (p. 10)
HM-151
RTTY TERMINAL
UNIT (p. 23)
DATA
ANT2
DC POWER SUPPLY (p.19)
AC outlet A DC power supply
13.8 V; at least 25 A
Red Black
+
GROUND (p. 15)
MIC
GND
ANT1
DC 13.8V
HF/50 MHz ANTENNA
_
Use the heaviest
gauge wire or strap
available and make
the connection as
short as possible.
Grounding prevents
electrical shocks, TVI
and other problems.
