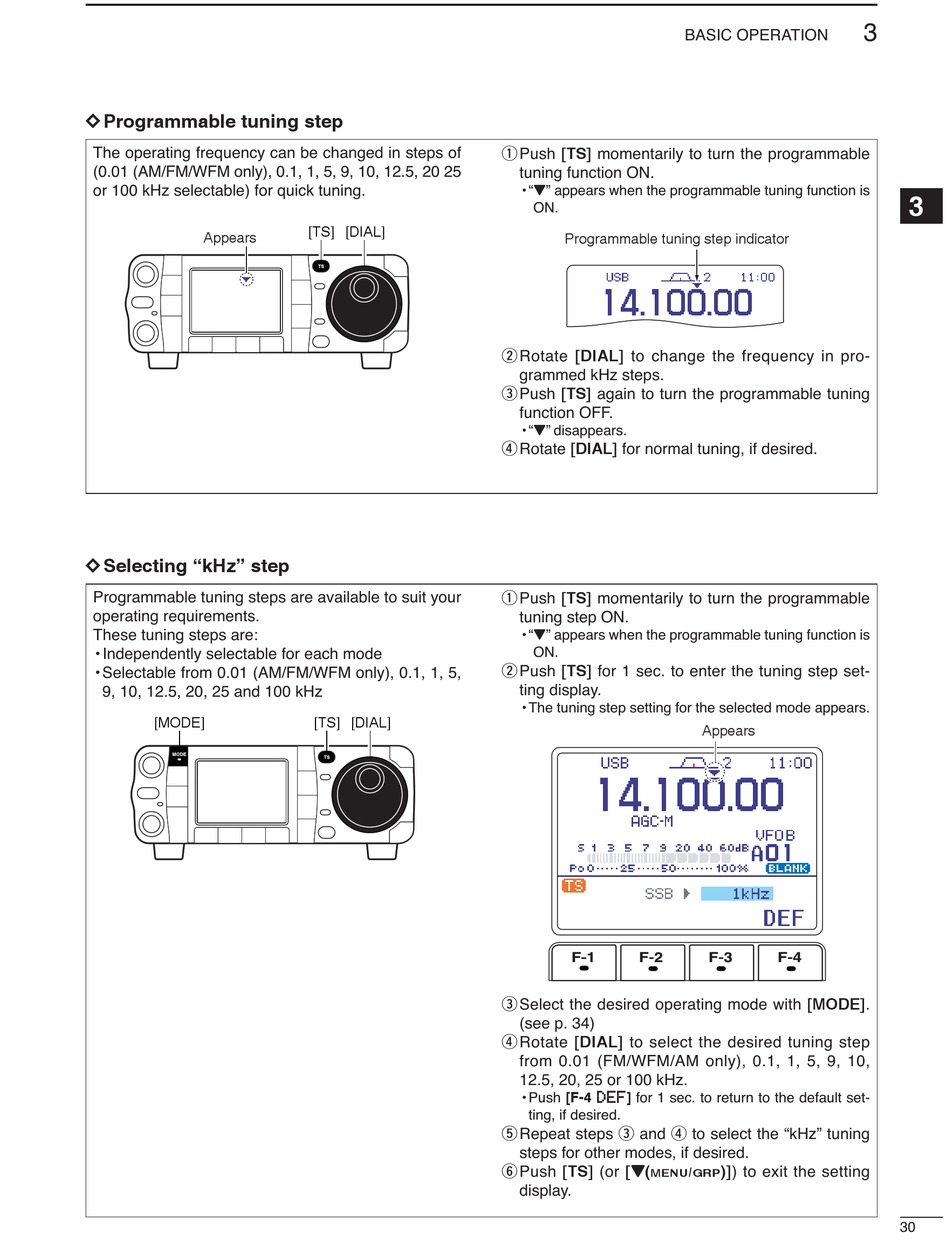

D Programmable tuning step

The operating frequency can be changed in steps of
(0.01 (AM/FM/WFM only), 0.1, 1, 5, 9, 10, 12.5, 20 25
or 100 kHz selectable) for quick tuning.
Appears

D Selecting "kHz" step

Programmable tuning steps are available to suit your
operating requirements.
These tuning steps are:
• Independently selectable for each mode
• Selectable from 0.01 (AM/FM/WFM only), 0.1, 1, 5,
9, 10, 12.5, 20, 25 and 100 kHz
[MODE]
[TS] [DIAL]
[TS] [DIAL]
q Push [TS] momentarily to turn the programmable
tuning function ON.
• "Z" appears when the programmable tuning function is
ON.
Programmable tuning step indicator
w Rotate [DIAL] to change the frequency in pro-
grammed kHz steps.
e Push [TS] again to turn the programmable tuning
function OFF.
• "Z" disappears.
r Rotate [DIAL] for normal tuning, if desired.
q Push [TS] momentarily to turn the programmable
tuning step ON.
• "Z" appears when the programmable tuning function is
ON.
w Push [TS] for 1 sec. to enter the tuning step set-
ting display.
• The tuning step setting for the selected mode appears.
e Select the desired operating mode with [MODE].
(see p. 34)
r Rotate [DIAL] to select the desired tuning step
from 0.01 (FM/WFM/AM only), 0.1, 1, 5, 9, 10,
12.5, 20, 25 or 100 kHz.
• Push [F-4 DEF] for 1 sec. to return to the default set-
ting, if desired.
t Repeat steps e and r to select the "kHz" tuning
steps for other modes, if desired.
y Push [TS] (or [Z(
MENU
display.
BASIC OPERATION
Appears
)]) to exit the setting
/
