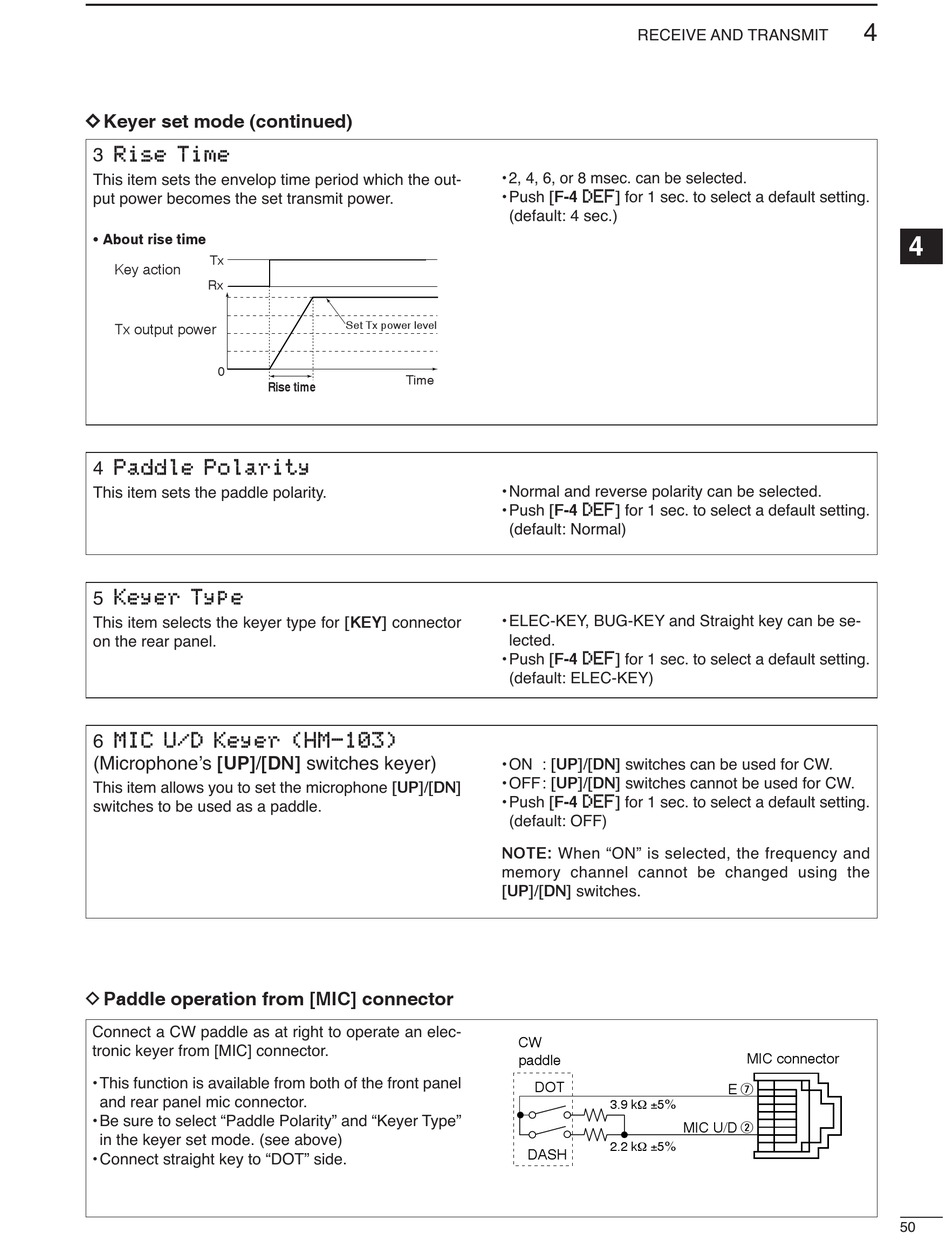

D Keyer set mode (continued)

3 Rise Time

This item sets the envelop time period which the out-
put power becomes the set transmit power.
• About rise time
Tx
Key action
Rx
Tx output power
0

4 Paddle Polarity

This item sets the paddle polarity.

5 Keyer Type

This item selects the keyer type for [KEY] connector
on the rear panel.

6 MIC U/D Keyer (HM-103)

(Microphone's [UP]/[DN] switches keyer)
This item allows you to set the microphone [UP]/[DN]
switches to be used as a paddle.

D Paddle operation from [MIC] connector

Connect a CW paddle as at right to operate an elec-
tronic keyer from [MIC] connector.
• This function is available from both of the front panel
and rear panel mic connector.
• Be sure to select "Paddle Polarity" and "Keyer Type"
in the keyer set mode. (see above)
• Connect straight key to "DOT" side.
Set Tx power level
Time
Rise time
RECEIVE AND TRANSMIT
• 2, 4, 6, or 8 msec. can be selected.
• Push [F-4 DEF] for 1 sec. to select a default setting.
(default: 4 sec.)
• Normal and reverse polarity can be selected.
• Push [F-4 DEF] for 1 sec. to select a default setting.
(default: Normal)
• ELEC-KEY, BUG-KEY and Straight key can be se-
lected.
• Push [F-4 DEF] for 1 sec. to select a default setting.
(default: ELEC-KEY)
• ON : [UP]/[DN] switches can be used for CW.
• OFF: [UP]/[DN] switches cannot be used for CW.
• Push [F-4 DEF] for 1 sec. to select a default setting.
(default: OFF)
NOTE: When "ON" is selected, the frequency and
memory channel cannot be changed using the
[UP]/[DN] switches.
CW
paddle
DOT
3.9 k ±5%
2.2 k ±5%
DASH
MIC connector
E
u
MIC U/D
w
4
4
50
