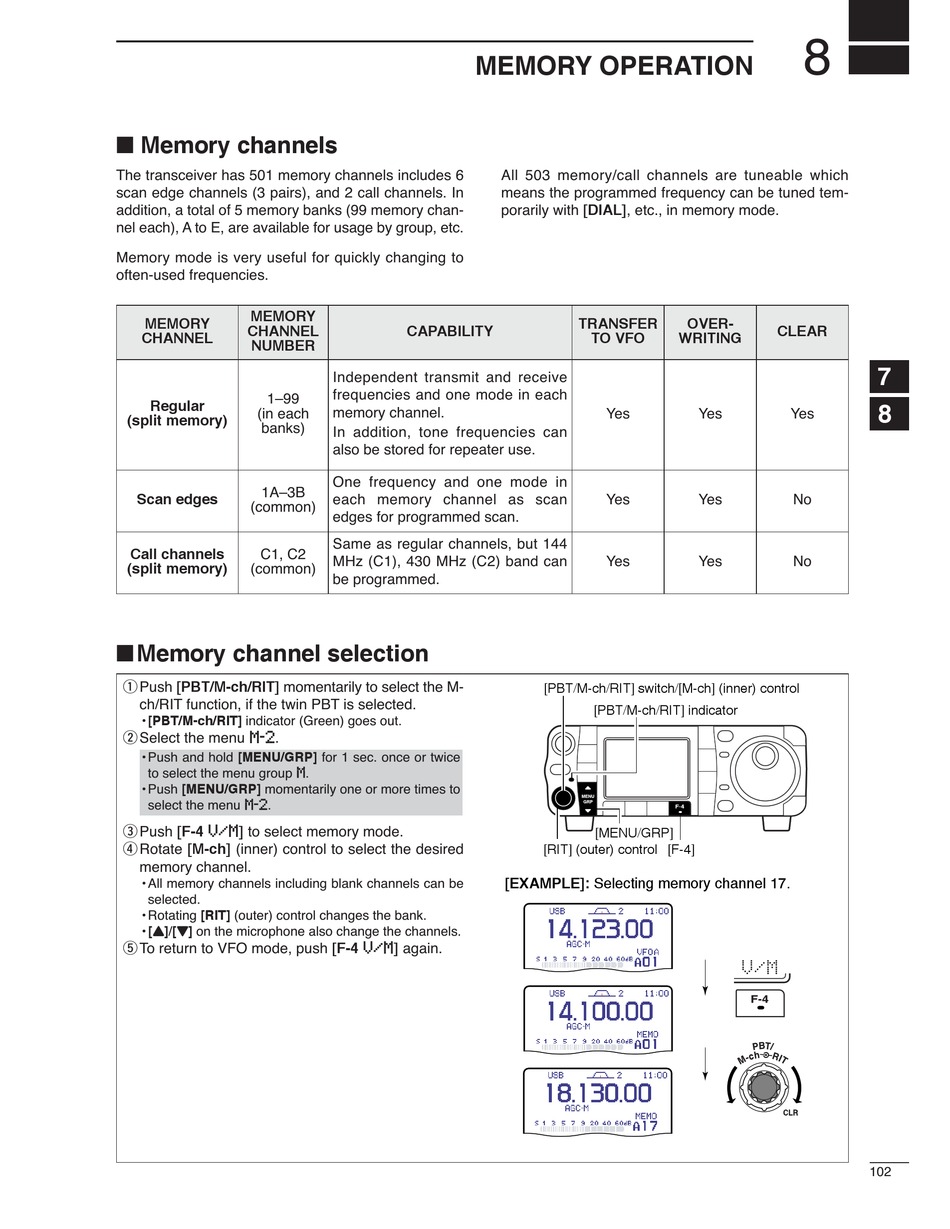

■ Memory channels

The transceiver has 501 memory channels includes 6
scan edge channels (3 pairs), and 2 call channels. In
addition, a total of 5 memory banks (99 memory chan-
nel each), A to E, are available for usage by group, etc.
Memory mode is very useful for quickly changing to
often-used frequencies.
MEMORY
MEMORY
CHANNEL
CHANNEL
NUMBER
1–99
Regular
(in each
(split memory)
banks)
1A–3B
Scan edges
(common)
Call channels
C1, C2
(split memory)
(common)

■ Memory channel selection

q Push [PBT/M-ch/RIT] momentarily to select the M-
ch/RIT function, if the twin PBT is selected.
• [PBT/M-ch/RIT] indicator (Green) goes out.
w Select the menu M-2.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group M.
• Push [MENU/GRP] momentarily one or more times to
select the menu M-2.
e Push [F-4 V/M] to select memory mode.
r Rotate [M-ch] (inner) control to select the desired
memory channel.
• All memory channels including blank channels can be
selected.
• Rotating [RIT] (outer) control changes the bank.
• [Y]/[Z] on the microphone also change the channels.
t To return to VFO mode, push [F-4 V/M] again.

MEMORY OPERATION

All 503 memory/call channels are tuneable which
means the programmed frequency can be tuned tem-
porarily with [DIAL], etc., in memory mode.
CAPABILITY
Independent transmit and receive
frequencies and one mode in each
memory channel.
In addition, tone frequencies can
also be stored for repeater use.
One frequency and one mode in
each memory channel as scan
edges for programmed scan.
Same as regular channels, but 144
MHz (C1), 430 MHz (C2) band can
be programmed.
[EXAMPLE]: Selecting memory channel 17.
TRANSFER OVER-
TO VFO WRITING
Yes Yes
Yes Yes
Yes Yes
[PBT/M-ch/RIT] switch/[M-ch] (inner) control
[PBT/M-ch/RIT] indicator
[MENU/GRP]
[RIT] (outer) control [F-4]
8
CLEAR
7
8
Yes
No
No
V/M
102
