4
RECEIVE AND TRANSMIT

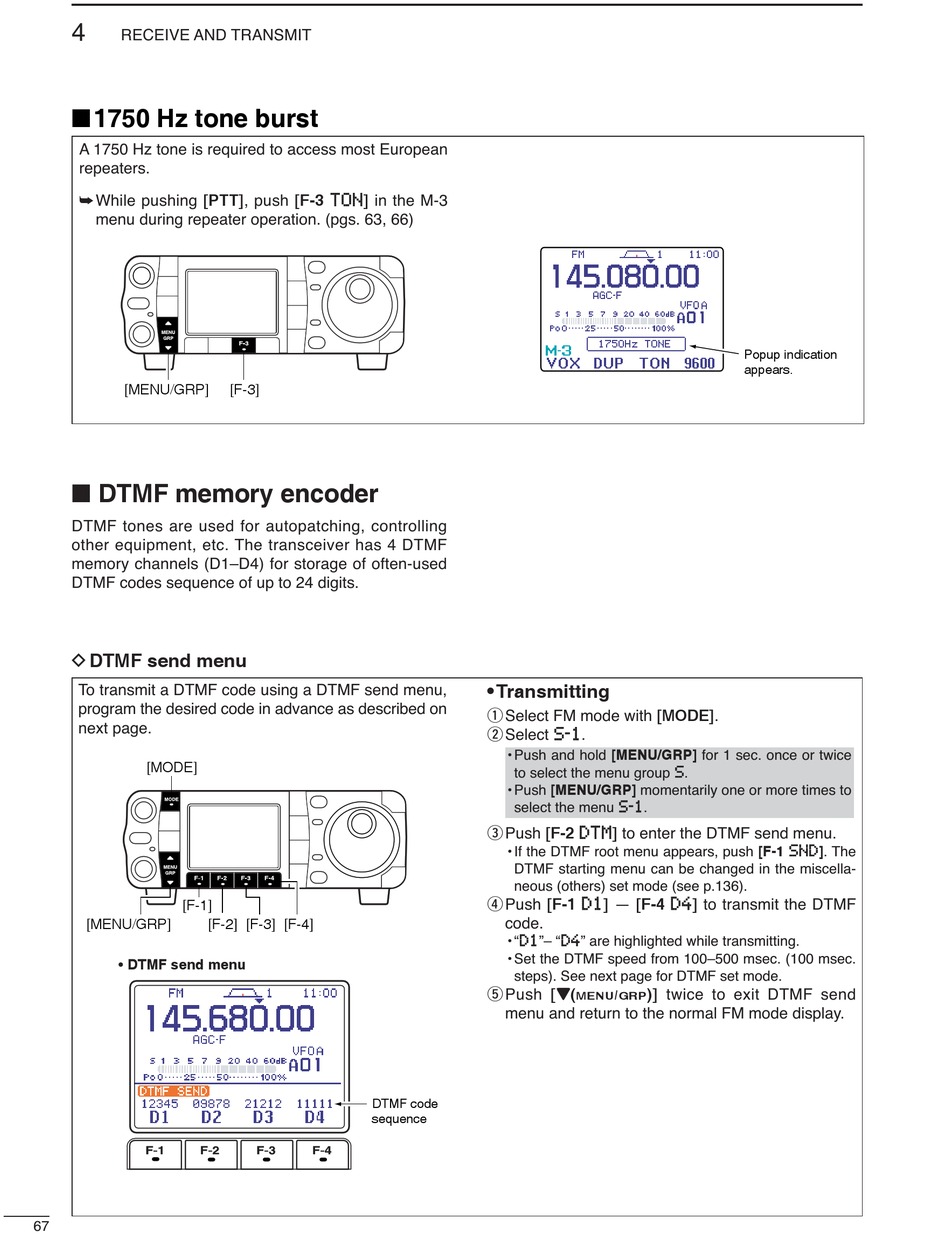

■ 1750 Hz tone burst

A 1750 Hz tone is required to access most European
repeaters.
➥ While pushing [PTT], push [F-3 TON] in the M-3
menu during repeater operation. (pgs. 63, 66)
[MENU/GRP]

■ DTMF memory encoder

DTMF tones are used for autopatching, controlling
other equipment, etc. The transceiver has 4 DTMF
memory channels (D1–D4) for storage of often-used
DTMF codes sequence of up to 24 digits.

D DTMF send menu

To transmit a DTMF code using a DTMF send menu,
program the desired code in advance as described on
next page.
[MODE]
[F-1]
[MENU/GRP] [F-2] [F-3] [F-4]
• DTMF send menu
67
[F-3]
DTMF code
sequence
• Transmitting
q Select FM mode with [MODE].
w Select S-1.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group S.
• Push [MENU/GRP] momentarily one or more times to
select the menu S-1.
e Push [F-2 DTM] to enter the DTMF send menu.
• If the DTMF root menu appears, push [F-1 SND]. The
DTMF starting menu can be changed in the miscella-
neous (others) set mode (see p.136).
r Push [F-1 D1] — [F-4 D4] to transmit the DTMF
code.
• "D1"– "D4" are highlighted while transmitting.
• Set the DTMF speed from 100–500 msec. (100 msec.
steps). See next page for DTMF set mode.
t Push [Z( )] twice to exit DTMF send
/
MENU GRP
menu and return to the normal FM mode display.
Popup indication
appears.
