D Contest Number Set Mode; Number Style; Count Up Trigger; Present Number - Icom IC-7000 Instruction Manual

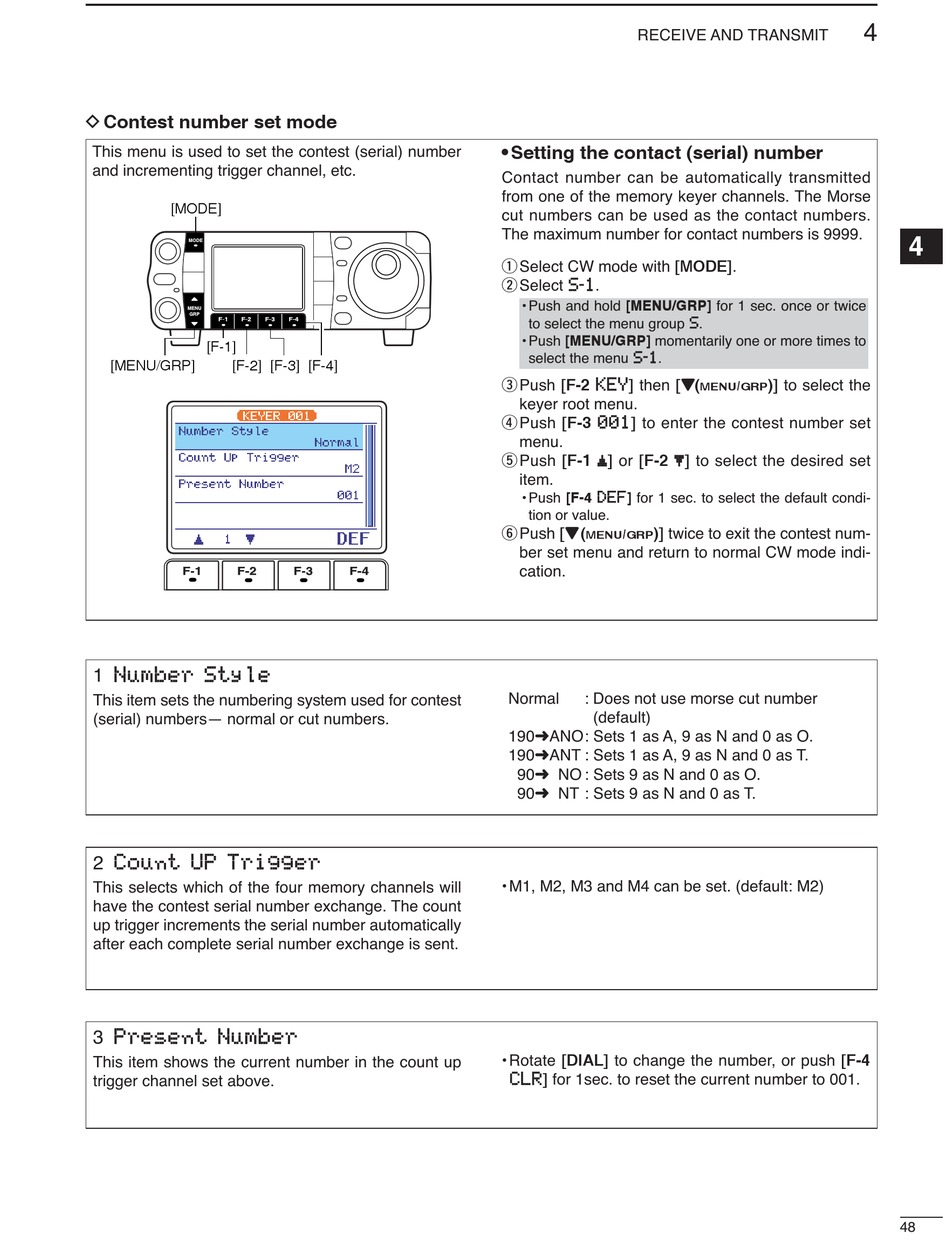

D Contest number set mode

This menu is used to set the contest (serial) number
and incrementing trigger channel, etc.
[MODE]
[F-1]
[MENU/GRP] [F-2] [F-3] [F-4]

1 Number Style

This item sets the numbering system used for contest
(serial) numbers— normal or cut numbers.

2 Count UP Trigger

This selects which of the four memory channels will
have the contest serial number exchange. The count
up trigger increments the serial number automatically
after each complete serial number exchange is sent.

3 Present Number

This item shows the current number in the count up
trigger channel set above.
RECEIVE AND TRANSMIT
• Setting the contact (serial) number
Contact number can be automatically transmitted
from one of the memory keyer channels. The Morse
cut numbers can be used as the contact numbers.
The maximum number for contact numbers is 9999.
q Select CW mode with [MODE].
w Select S
1.
-
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group S.
• Push [MENU/GRP] momentarily one or more times to
select the menu S-1.
e Push [F-2 KEY] then [Z(
keyer root menu.
r Push [F-3 001] to enter the contest number set
menu.
t Push [F-1 ≤] or [F-2 ≥] to select the desired set
item.
• Push [F-4 DEF] for 1 sec. to select the default condi-
tion or value.
y Push [Z ( )] twice to exit the contest num-
/
MENU GRP
ber set menu and return to normal CW mode indi-
cation.
Normal : Does not use morse cut number
(default)
190➜ANO: Sets 1 as A, 9 as N and 0 as O.
190➜ANT : Sets 1 as A, 9 as N and 0 as T.
90➜ NO : Sets 9 as N and 0 as O.
90➜ NT : Sets 9 as N and 0 as T.
• M1, M2, M3 and M4 can be set. (default: M2)
• Rotate [DIAL] to change the number, or push [F-4
CLR] for 1sec. to reset the current number to 001.
4
)] to select the
/
MENU GRP
4
48
