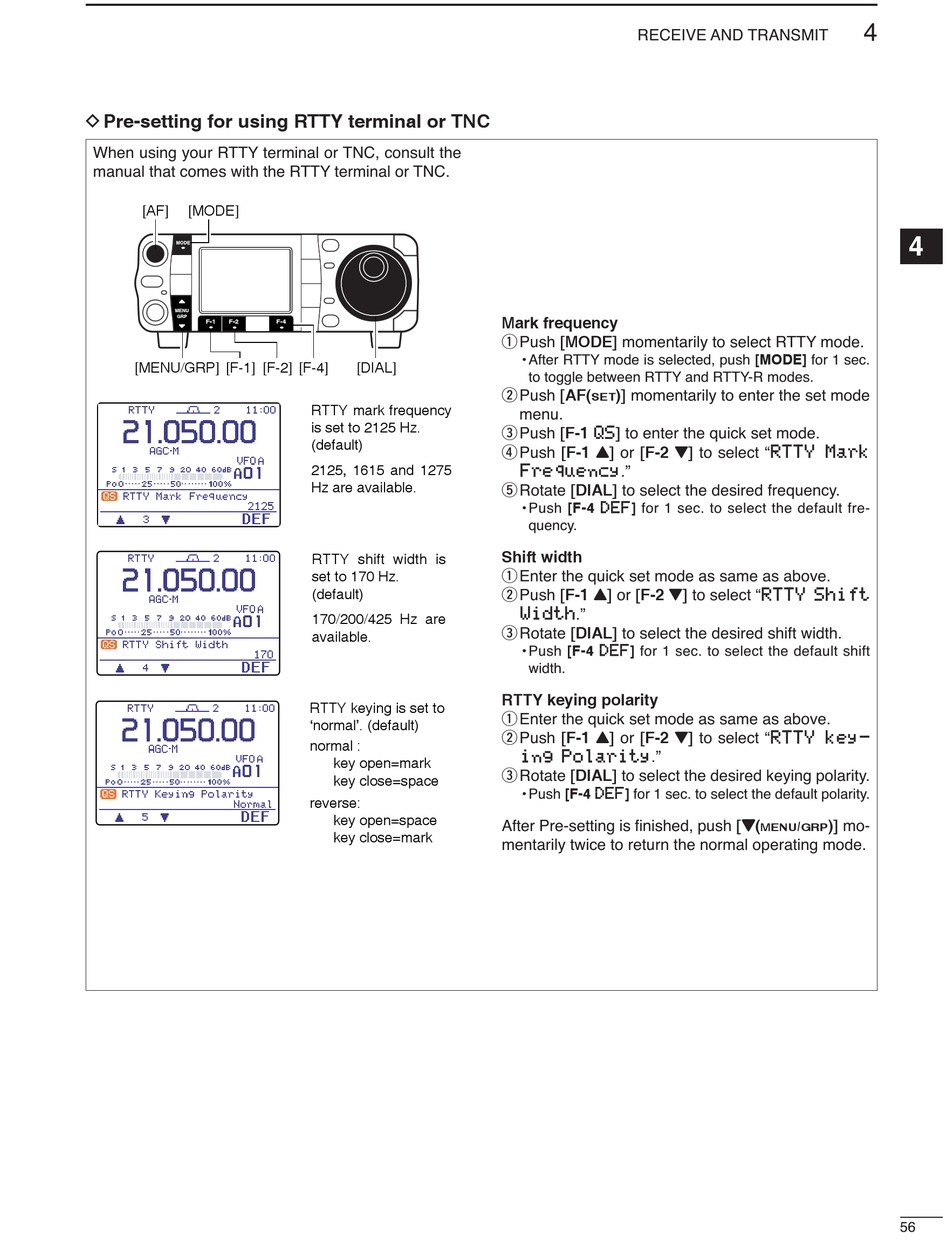

D Pre-setting for using RTTY terminal or TNC

When using your RTTY terminal or TNC, consult the
manual that comes with the RTTY terminal or TNC.
[AF] [MODE]
[MENU/GRP] [F-1] [F-2] [F-4] [DIAL]
RTTY mark frequency
is set to 2125 Hz.
(default)
2125, 1615 and 1275
Hz are available.
RTTY shift width is
set to 170 Hz.
(default)
170/200/425 Hz are
available.
RTTY keying is set to
'normal'. (default)
normal :
key open=mark
key close=space
reverse:
key open=space
key close=mark
RECEIVE AND TRANSMIT
Mark frequency
q Push [MODE] momentarily to select RTTY mode.
• After RTTY mode is selected, push [MODE] for 1 sec.
to toggle between RTTY and RTTY-R modes.
w Push [AF( )] momentarily to enter the set mode
SET
menu.
e Push [F-1 QS] to enter the quick set mode.
r Push [F-1 Y] or [F-2 Z] to select "RTTY Mark
Frequency."
t Rotate [DIAL] to select the desired frequency.
• Push [F-4 DEF] for 1 sec. to select the default fre-
quency.
Shift width
q Enter the quick set mode as same as above.
w Push [F-1 Y] or [F-2 Z] to select "RTTY Shift
Width."
e Rotate [DIAL] to select the desired shift width.
• Push [F-4 DEF] for 1 sec. to select the default shift
width.
RTTY keying polarity
q Enter the quick set mode as same as above.
w Push [F-1 Y] or [F-2 Z] to select "RTTY key-
ing Polarity."
e Rotate [DIAL] to select the desired keying polarity.
• Push [F-4 DEF] for 1 sec. to select the default polarity.
After Pre-setting is finished, push [Z(
mentarily twice to return the normal operating mode.
4
4
)] mo-
/
