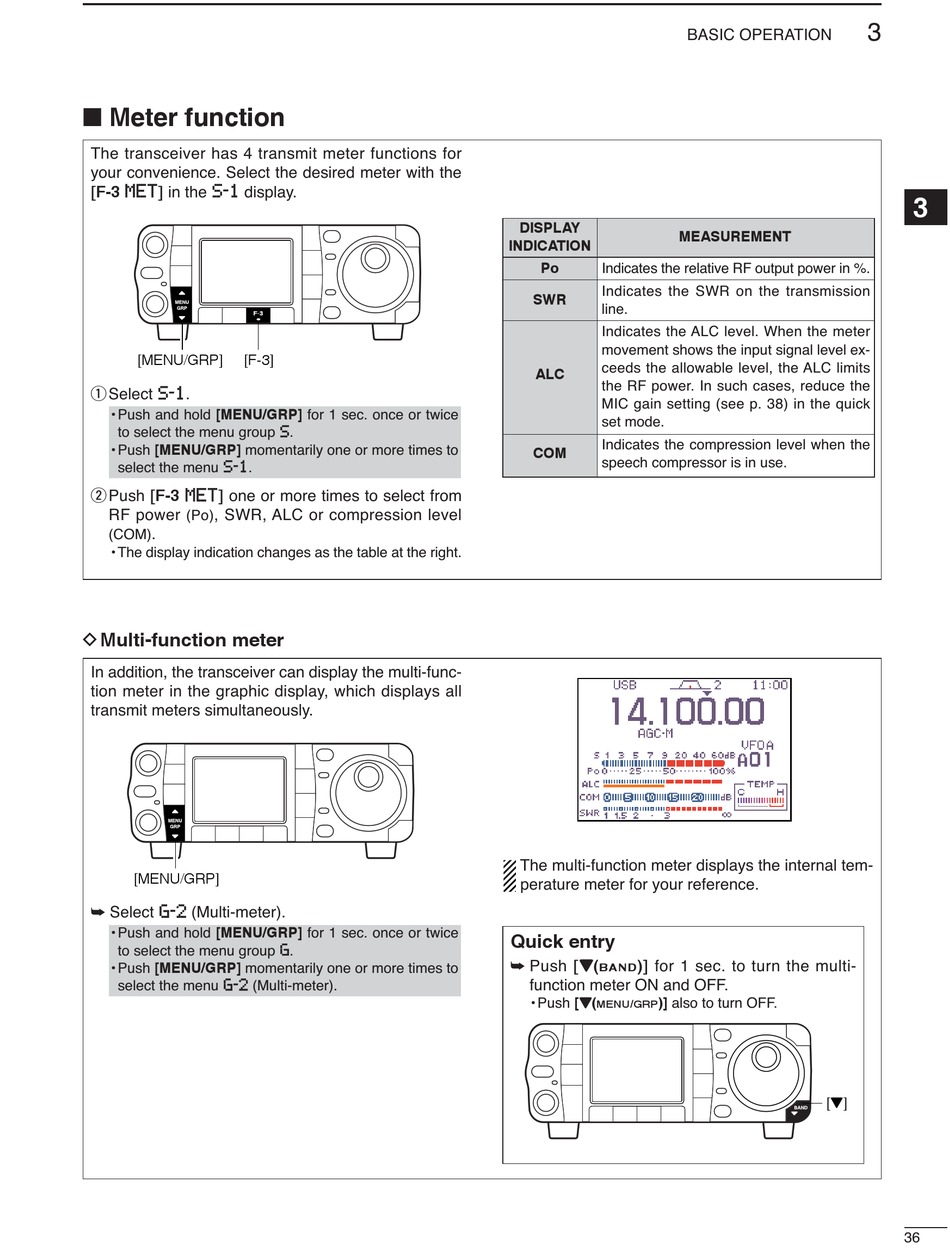

■ Meter function

The transceiver has 4 transmit meter functions for
your convenience. Select the desired meter with the
[F-3 MET] in the S-1 display.
[MENU/GRP] [F-3]
q Select S-1.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group S.
• Push [MENU/GRP] momentarily one or more times to
select the menu S-1.
w Push [F-3 MET] one or more times to select from
RF power , SWR, ALC or compression level
(Po)
.
(COM)
• The display indication changes as the table at the right.

D Multi-function meter

In addition, the transceiver can display the multi-func-
tion meter in the graphic display, which displays all
transmit meters simultaneously.
[MENU/GRP]
➥ Select G-2 (Multi-meter).
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group G.
• Push [MENU/GRP] momentarily one or more times to
select the menu G-2 (Multi-meter).
BASIC OPERATION
DISPLAY
MEASUREMENT
INDICATION
Po
Indicates the relative RF output power in %.
Indicates the SWR on the transmission
SWR
line.
Indicates the ALC level. When the meter
movement shows the input signal level ex-
ceeds the allowable level, the ALC limits
ALC
the RF power. In such cases, reduce the
MIC gain setting (see p. 38) in the quick
set mode.
Indicates the compression level when the
COM
speech compressor is in use.
The multi-function meter displays the internal tem-
perature meter for your reference.

Quick entry

➥ Push [Z(
)] for 1 sec. to turn the multi-
BAND
function meter ON and OFF.
• Push [Z( )] also to turn OFF.
/
MENU GRP
3
3
[Z]
36
