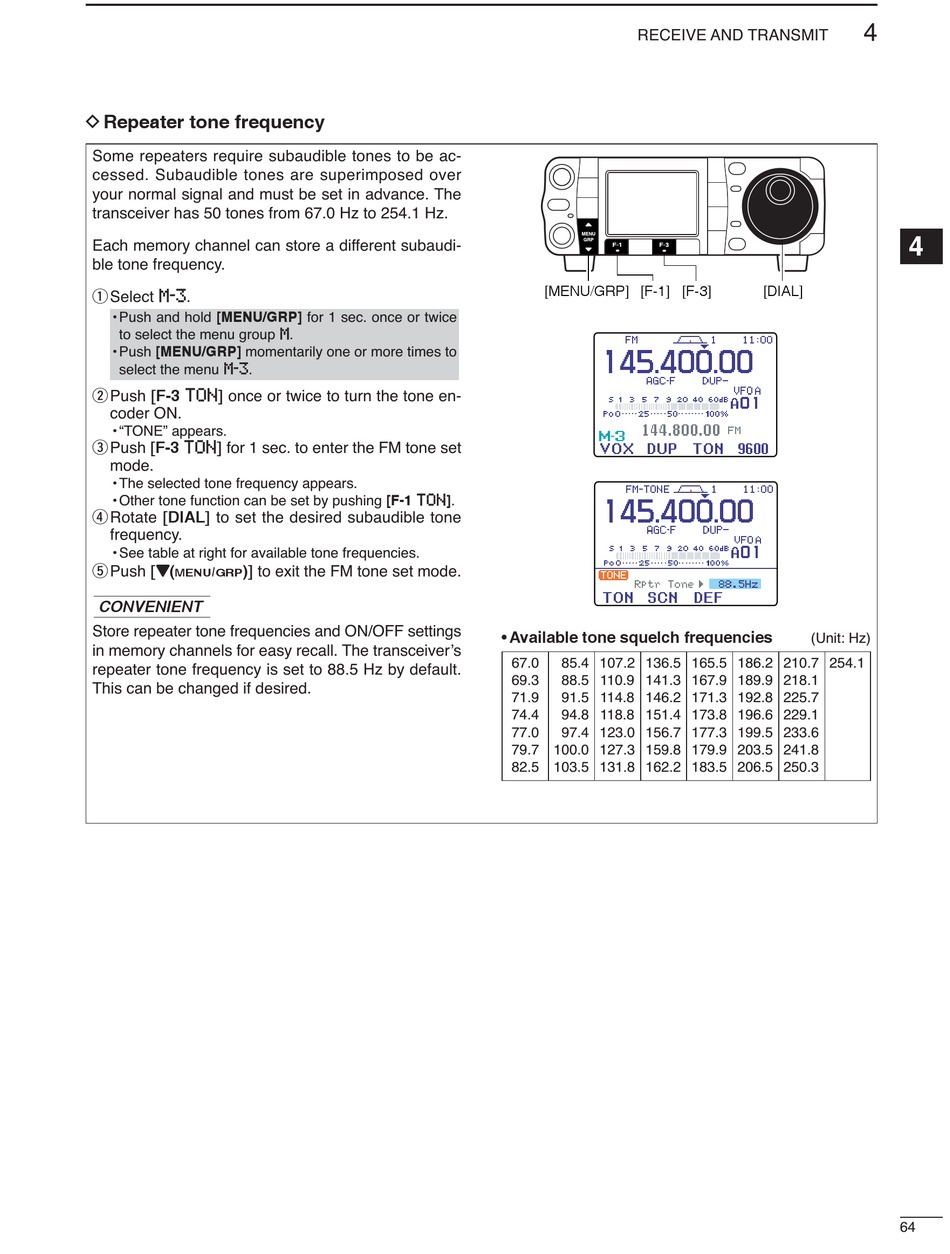

D Repeater tone frequency

Some repeaters require subaudible tones to be ac-
cessed. Subaudible tones are superimposed over
your normal signal and must be set in advance. The
transceiver has 50 tones from 67.0 Hz to 254.1 Hz.
Each memory channel can store a different subaudi-
ble tone frequency.
q Select M-3.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group M.
• Push [MENU/GRP] momentarily one or more times to
select the menu M-3.
w Push [F-3 TON] once or twice to turn the tone en-
coder ON.
• "TONE" appears.
e Push [F-3 TON] for 1 sec. to enter the FM tone set
mode.
• The selected tone frequency appears.
• Other tone function can be set by pushing [F-1 TON].
r Rotate [DIAL] to set the desired subaudible tone
frequency.
• See table at right for available tone frequencies.
t Push [Z(
)] to exit the FM tone set mode.
/
MENU GRP
CONVENIENT
Store repeater tone frequencies and ON/OFF settings
in memory channels for easy recall. The transceiver's
repeater tone frequency is set to 88.5 Hz by default.
This can be changed if desired.
RECEIVE AND TRANSMIT
[MENU/GRP] [F-1]
• Available tone squelch frequencies
67.0 085.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
[F-3] [DIAL]
(Unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
