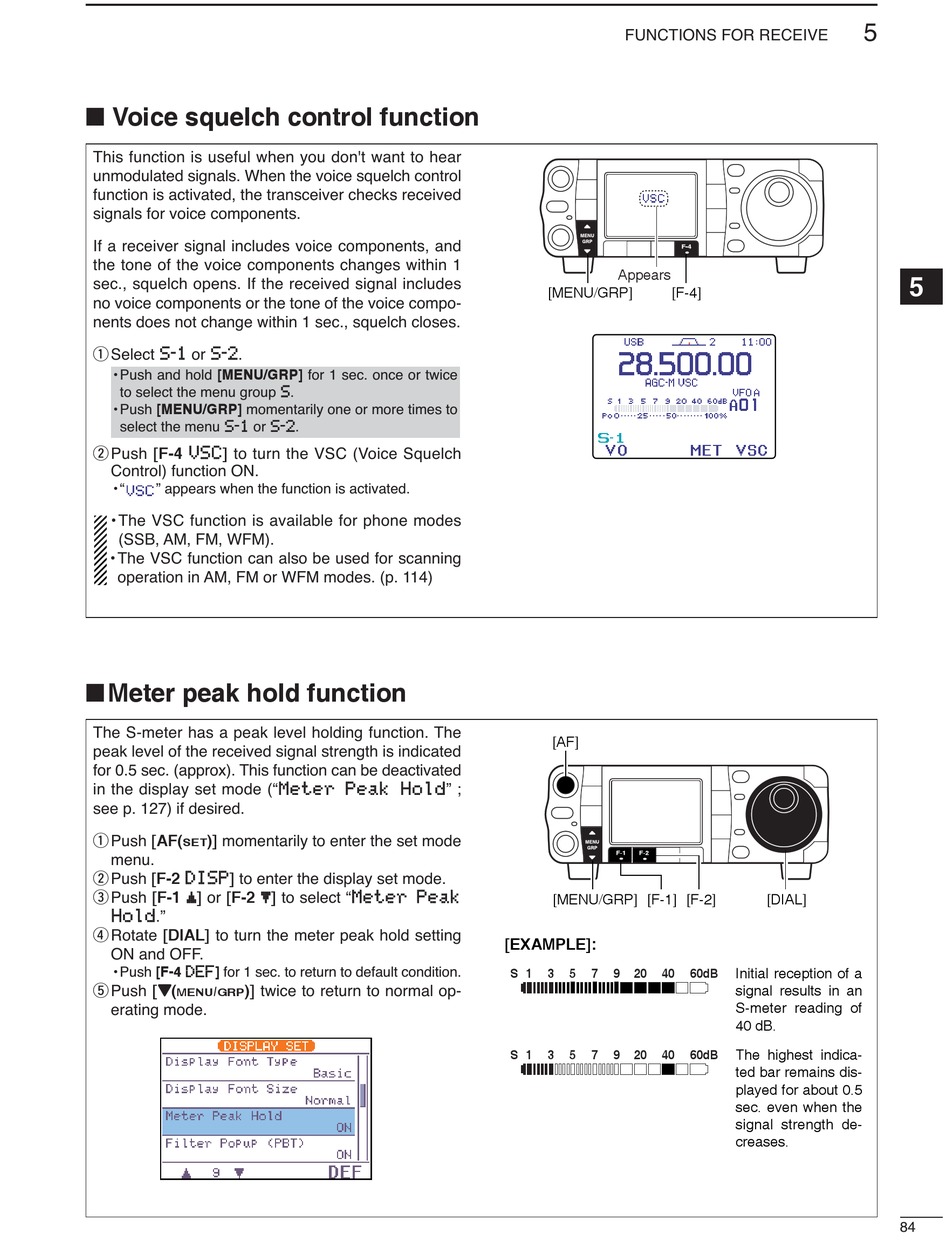

■ Voice squelch control function

This function is useful when you don't want to hear
unmodulated signals. When the voice squelch control
function is activated, the transceiver checks received
signals for voice components.
If a receiver signal includes voice components, and
the tone of the voice components changes within 1
sec., squelch opens. If the received signal includes
no voice components or the tone of the voice compo-
nents does not change within 1 sec., squelch closes.
q Select S-1 or S-2.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group S.
• Push [MENU/GRP] momentarily one or more times to
select the menu S-1 or S-2.
w Push [F-4 VSC] to turn the VSC (Voice Squelch
Control) function ON.
• " " appears when the function is activated.
• The VSC function is available for phone modes
(SSB, AM, FM, WFM).
• The VSC function can also be used for scanning
operation in AM, FM or WFM modes. (p. 114)

■ Meter peak hold function

The S-meter has a peak level holding function. The
peak level of the received signal strength is indicated
for 0.5 sec. (approx). This function can be deactivated
in the display set mode ("Meter Peak Hold" ;
see p. 127) if desired.
q Push [AF( )] momentarily to enter the set mode
SET
menu.
w Push [F-2 DISP] to enter the display set mode.
e Push [F-1 ≤] or [F-2 ≥] to select "Meter Peak
Hold."
r Rotate [DIAL] to turn the meter peak hold setting
ON and OFF.
• Push [F-4 DEF] for 1 sec. to return to default condition.
t Push [Z(
)] twice to return to normal op-
/
MENU GRP
erating mode.

FUNCTIONS FOR RECEIVE

Appears
[MENU/GRP] [F-4]
[AF]
[MENU/GRP] [F-1]
[EXAMPLE]:
S 1 3 5 7 9 20 40
S 1 3 5 7 9 20 40
5
[F-2] [DIAL]
60dB Initial reception of a
signal results in an
S-meter reading of
40 dB.
60dB The highest indica-
ted bar remains dis-
played for about 0.5
sec. even when the
signal strength de-
creases.
5
