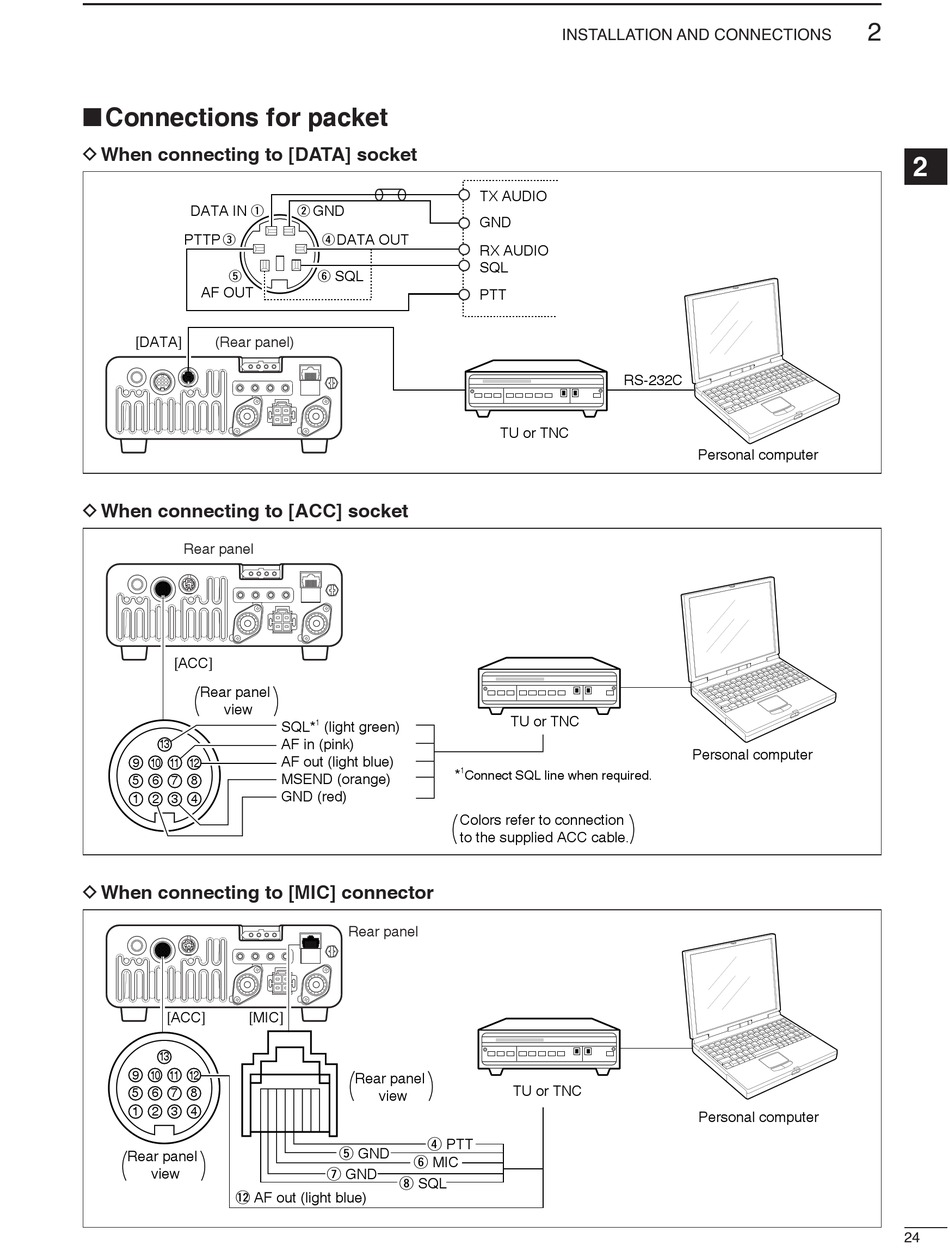

■ Connections for packet

D When connecting to [DATA] socket

DATA IN q
PTTP
e
t
AF OUT
[DATA] (Rear panel)

D When connecting to [ACC] socket

Rear panel
[ACC]
Rear panel
view
13
9 10 11 12
5 6 7 8
1 2 3 4

D When connecting to [MIC] connector

[ACC] [MIC]
13
9 10 11 12
5 6 7 8
1 2 3 4
Rear panel
view
!2 AF out (light blue)
w GND
DATA OUT
r
y SQL
SQL* 1 (light green)
AF in (pink)
AF out (light blue)
* 1
MSEND (orange)
GND (red)
Colors refer to connection
to the supplied ACC cable.
Rear panel
Rear panel
view
r PTT
t GND
y MIC
u GND
i SQL

INSTALLATION AND CONNECTIONS

TX AUDIO
GND
RX AUDIO
SQL
PTT
RS-232C
TU or TNC
TU or TNC
Connect SQL line when required.
