4
RECEIVE AND TRANSMIT

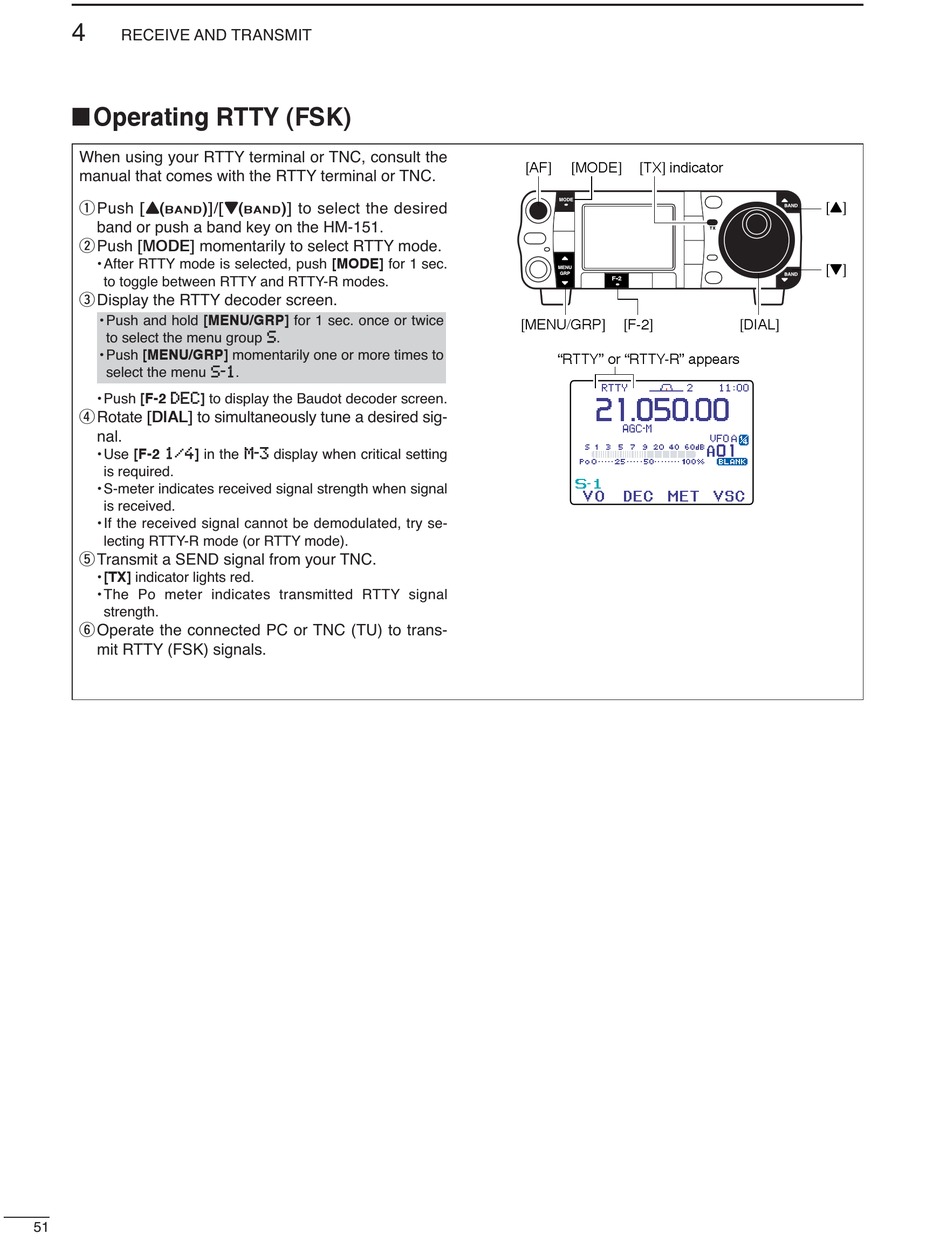

■ Operating RTTY (FSK)

When using your RTTY terminal or TNC, consult the
manual that comes with the RTTY terminal or TNC.
q Push [Y( )]/[Z(
BAND
band or push a band key on the HM-151.
w Push [MODE] momentarily to select RTTY mode.
• After RTTY mode is selected, push [MODE] for 1 sec.
to toggle between RTTY and RTTY-R modes.
e Display the RTTY decoder screen.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group S.
• Push [MENU/GRP] momentarily one or more times to
select the menu S-1.
• Push [F-2 DEC] to display the Baudot decoder screen.
r Rotate [DIAL] to simultaneously tune a desired sig-
nal.
• Use [F-2 1/4] in the M-3 display when critical setting
is required.
• S-meter indicates received signal strength when signal
is received.
• If the received signal cannot be demodulated, try se-
lecting RTTY-R mode (or RTTY mode).
t Transmit a SEND signal from your TNC.
• [TX] indicator lights red.
• The Po meter indicates transmitted RTTY signal
strength.
y Operate the connected PC or TNC (TU) to trans-
mit RTTY (FSK) signals.
51
)] to select the desired
BAND
[AF] [MODE] [TX] indicator
[MENU/GRP] [F-2]
"RTTY" or "RTTY-R" appears
[Y]
[Z]
[DIAL]
