3Com SuperStack 4 Configuration Manual page 56

68 C 3: VLAN O
HAPTER
VLAN Configuration
Example Two
PERATION
Networking Diagram

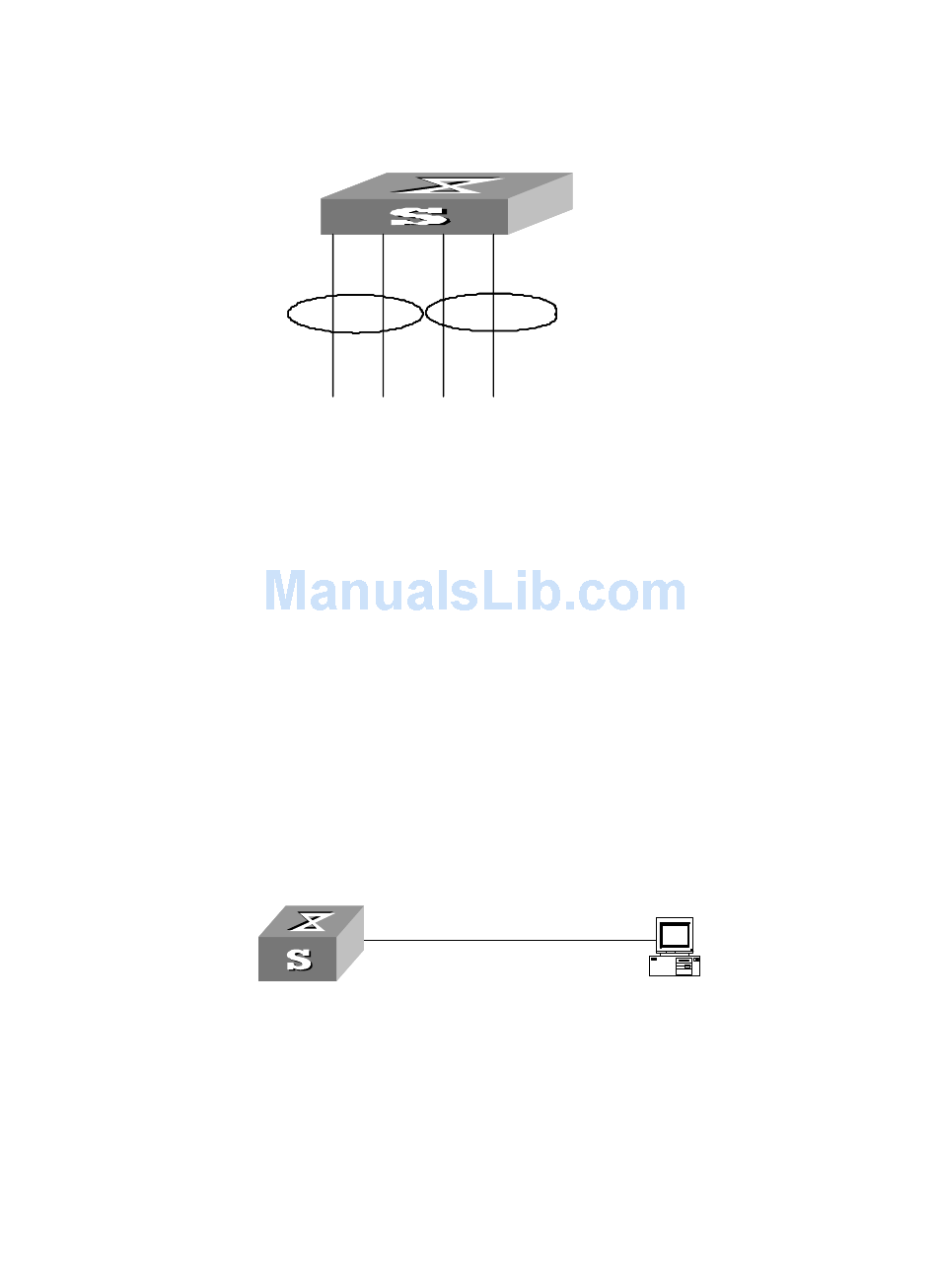

Figure 14 VLAN Configuration Example
E1/0/1 E1/0/1
E1/0/2 E1/0/2
VLAN2 VLAN2
Configuration Procedure
1 Create VLAN 2 and enter its view.
[SW5500]vlan 2
2 Add GigabitEthernet1/0/1 and GigabitEthernet1/0/2 to VLAN2.
[SW5500-vlan2]port gigabitethernet1/0/1 to gigabitethernet1/0/2
3 Create VLAN 3 and enter its view.
[SW5500-vlan2]vlan 3
4 Add GigabitEthernet1/0/3 and GigabitEthernet1/0/4 to VLAN3.
[SW5500-vlan3]port gigabitethernet1/0/3 to gigabitethernet1/0/4
Networking Requirements
Configure an IP address on a VLAN interface.
Networking Diagram
Figure 15 VLAN Configuration Example 2
Switch Switch
Configuration Procedure
1 If the VLAN does not currently exist, then create it. This example uses VLAN ID 3.
]
[SW5500 vlan 3
]
[SW5500-vlan3
2 Enter the VLAN interface view:
]
[SW5500 interface vlan-interface 3
3 Provide the IP address and subnet mask:
[SW5500-Vlan-interface3]ip address 192.168.1.5 255.255.255
[SW5500-Vlan-interface3]quit
1
Switch Switch Switch Switch
E1/0/3 E1/0/3 E1/0/4 E1/0/4
VLAN 3 VLAN 3
192.168.1.5 255.255.255.0 192.168.1.5 255.255.255.0
quit
VLAN3 VLAN3 VLAN3 VLAN3
