202 C 7: M
HAPTER ULTICAST
P
ROTOCOL
Networking Diagram

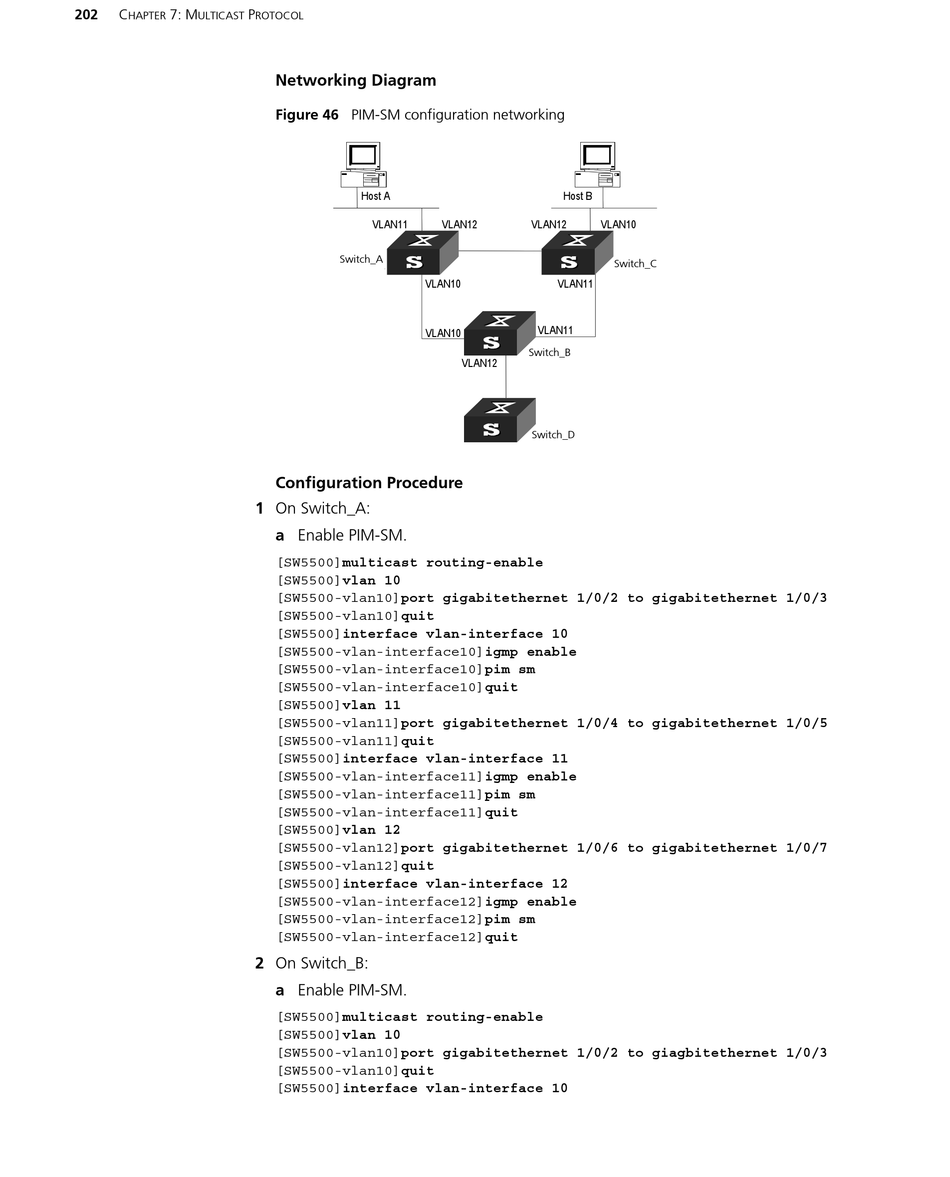

Figure 46 PIM-SM configuration networking
Host A Host A
VLAN11 VLAN11
Switch_A
LS_A LS_A
Configuration Procedure
1 On Switch_A:
a Enable PIM-SM.
[SW5500]multicast routing-enable
[SW5500]vlan 10
[SW5500-vlan10]port gigabitethernet 1/0/2 to gigabitethernet 1/0/3
[SW5500-vlan10]quit
[SW5500]interface vlan-interface 10
[SW5500-vlan-interface10]igmp enable
[SW5500-vlan-interface10]pim sm
[SW5500-vlan-interface10]quit
[SW5500]vlan 11
[SW5500-vlan11]port gigabitethernet 1/0/4 to gigabitethernet 1/0/5
[SW5500-vlan11]quit
[SW5500]interface vlan-interface 11
[SW5500-vlan-interface11]igmp enable
[SW5500-vlan-interface11]pim sm
[SW5500-vlan-interface11]quit
[SW5500]vlan 12
[SW5500-vlan12]port gigabitethernet 1/0/6 to gigabitethernet 1/0/7
[SW5500-vlan12]quit
[SW5500]interface vlan-interface 12
[SW5500-vlan-interface12]igmp enable
[SW5500-vlan-interface12]pim sm
[SW5500-vlan-interface12]quit
2 On Switch_B:
a Enable PIM-SM.
[SW5500]multicast routing-enable
[SW5500]vlan 10
[SW5500-vlan10]port gigabitethernet 1/0/2 to giagbitethernet 1/0/3
[SW5500-vlan10]quit
[SW5500]interface vlan-interface 10
Host B Host B
VLAN12 VLAN12 VLAN12 VLAN12
VLAN10 VLAN10 VLAN11 VLAN11
VLAN11 VLAN11
VLAN10 VLAN10
LS_B LS_B Switch_B
VLAN12 VLAN12
Switch_D
LSD LSD
VLAN10 VLAN10
Switch_C
LS_C LS_C
