DHCP Relay
Configuration Example
One
DHCP Relay
Configuration Example
Two
Table 94 Displaying and Debugging DHCP Configuration
Operation
Enable/disable DHCP Client hot backup
debugging
Enable/disable DHCP relay debugging
Networking Requirements
There are two VLANs (1 and 10) and they both need to use the same DHCP server.
Networking Diagram

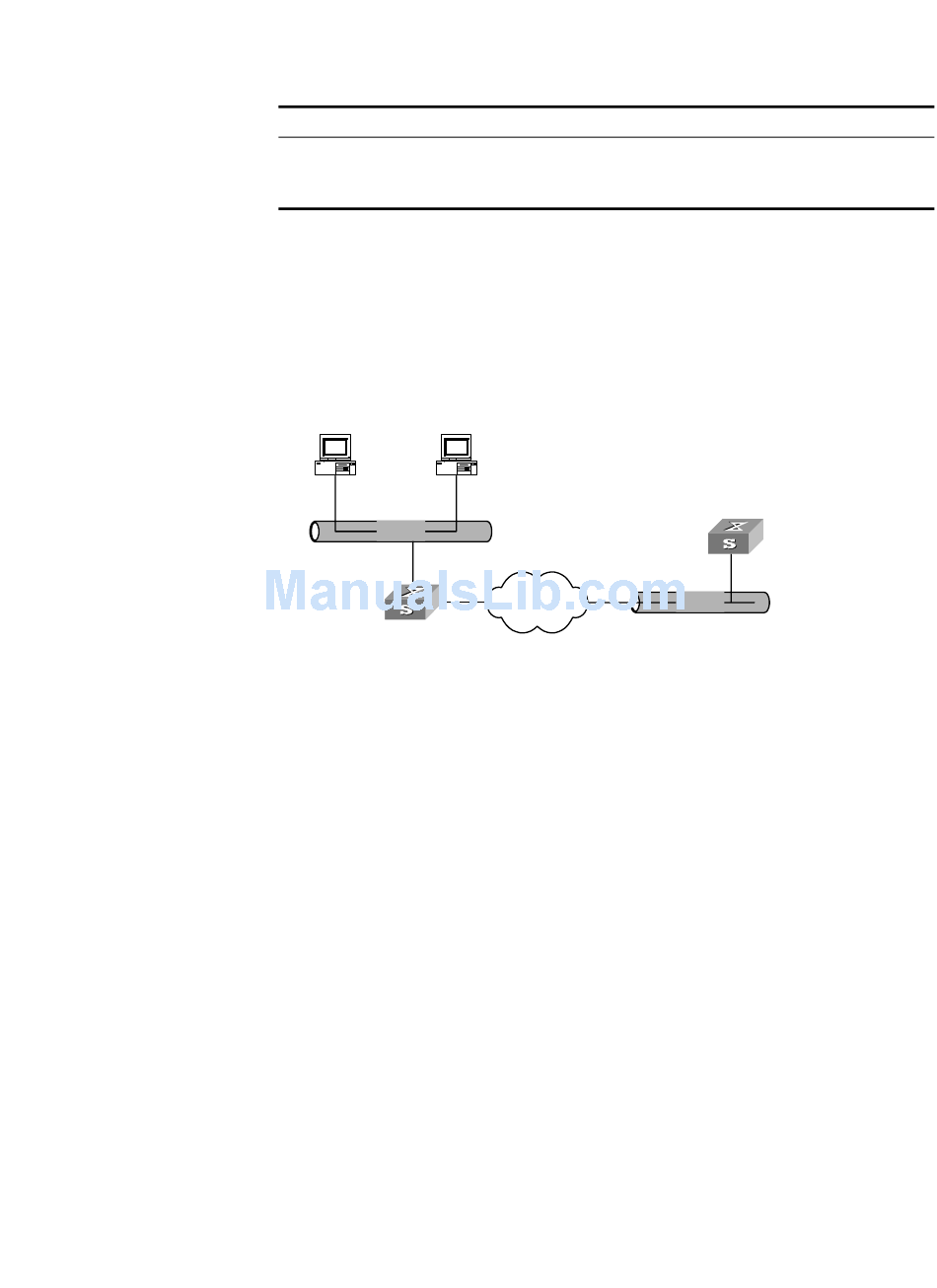

Figure 24 Configuring DHCP Relay
DHCP client
DHCP client
10.110.0.0
Ethernet
10.110.1.1
Switch ( DHCP Relay )
Configuration Procedure
1 Create a DHCP server group that will use two DHCP servers (a master and an
optional backup) and assign it the IP addresses of the two DHCP servers (the first
IP address is the master).
[SW5500]dhcp-server 0 ip 192.168.1.1 192.168.2.1
2 Configure the Switch so all clients use DHCP server group '0'.
[SW5500]interface vlan-interface 1
[SW5500-Vlan-interface1]dhcp-server 0
[SW5500-Vlan-interface1]quit
[SW5500]interface vlan-interface 10
[SW5500-Vlan-interface10]dhcp-server 0
[SW5500-Vlan-interface10]quit
Networking Requirements
The segment address for the DHCP Client is 10.110.0.0, which is connected to a
port in VLAN2 on the Switch. The IP address of the DHCP Server is 202.38.1.2. The
DHCP packets should be forwarded via the Switch with DHCP Relay enabled. A
DHCP Client can get its IP address and other configuration information from the
DHCP Server.
Command
[ undo ] debugging dhcp xrn xha
[ undo ] debugging dhcp-relay
DHCP Server
202.38.1.1
Internet Ethernet
202.38.0.0
DHCP Configuration
202.38.1.2
