3Com SuperStack 4 Configuration Manual page 398

410 C B: RADIUS S
HAPTER
Configuring Funk
RADIUS
RADIUS C S
ERVER AND LIENT

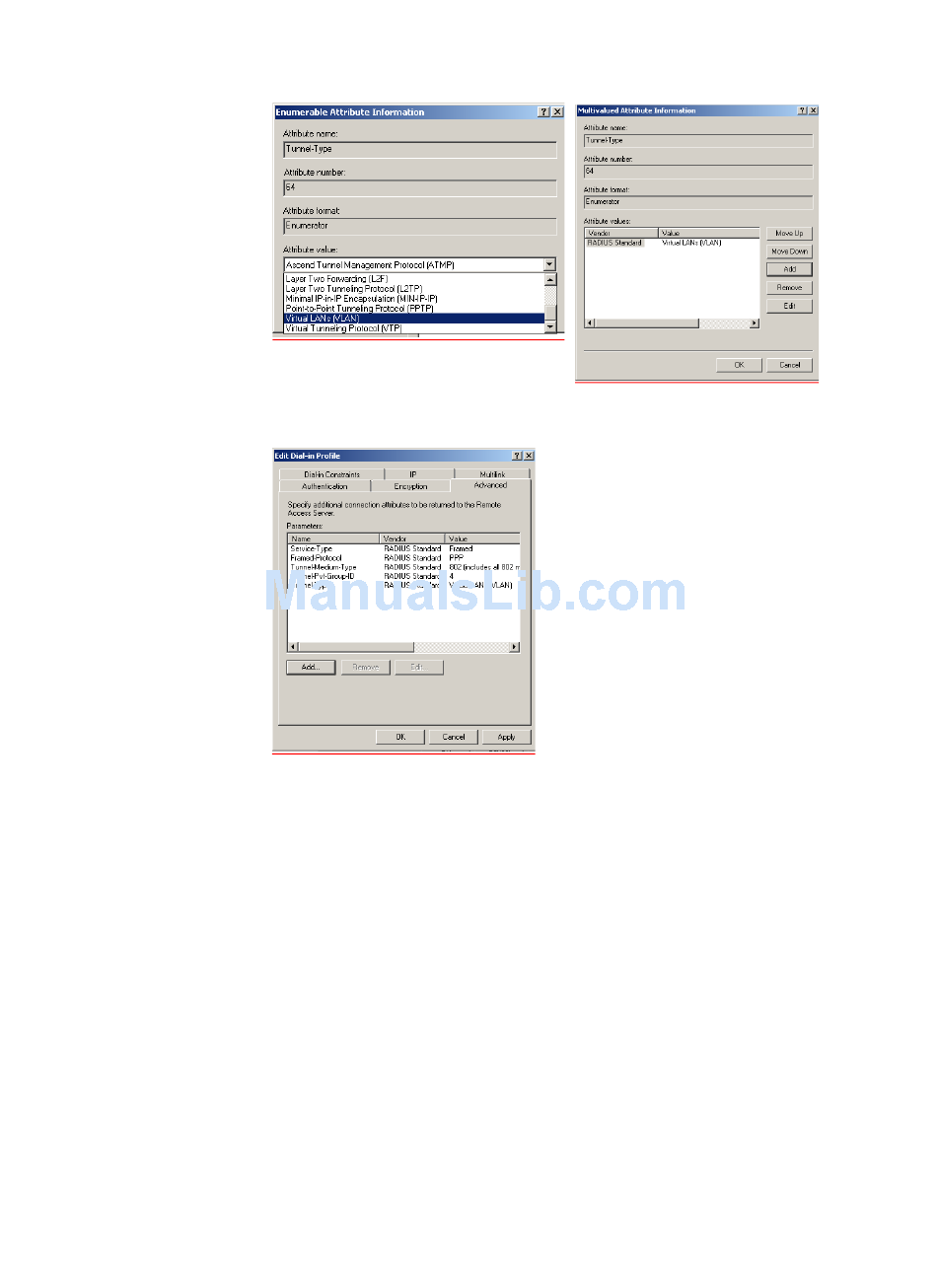

p Click Add again. In the pull down menu, select Virtual LANs and click OK.
q Click OK again and to return to the Add Attributes screen. Click Close. You will
now see the added attributes
r Click OK to close the Profile screen and OK again to close the Policy screen.
This completes the configuration of the Internet Authentication Service.
2 To test the configuration, connect the workstation to a port on the Switch
5500G-EI (the port does not have to be a member of VLAN 4). Ensure that there is
a DHCP server connected to the switch that resides on a switch port that is an
untagged member of VLAN 4. The RADIUS server should reside in the same VLAN
as the workstation.
Once authenticated the switch will receive VLAN information from the RADIUS
server and will place the switch port in the associated VLAN.
For troubleshooting, you can use the Event Viewer on both the workstation and
the RADIUS server.
3Com has successfully installed and tested Funk RADIUS running on a Windows
server in a network with Switch 5500G-EI deployed.
Download the Funk Steel-Belted RADIUS Server application from
and install the application. Once installed you have a 30 day license to use it.
ETUP
www.funk.com
