Basic ACL Configuration
Example
Link ACL Configuration
Example
Networking Requirements
Using basic ACL, filter the packet whose source IP address is 10.1.1.1 during the
time range 8:00 ~ 18:00 every day. The host connects port GigabitEthernet1/0/1
of the Switch.

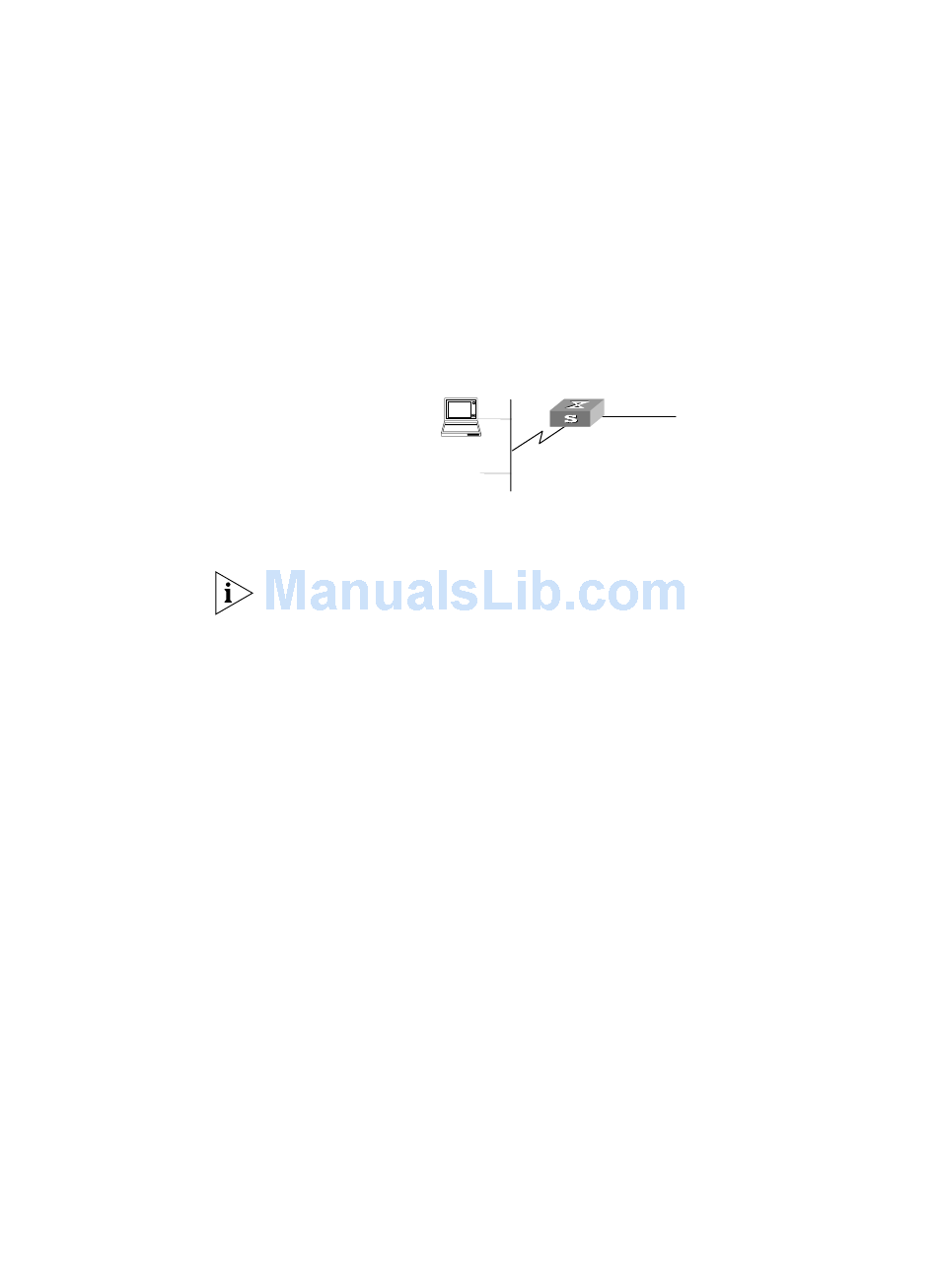

Networking Diagram
Figure 48 Access Control Configuration Example
Configuration Procedure
In the following configurations, only the commands related to ACL configurations
are listed.
1 Define the time range
Define time range from 8:00 to 18:00.
[SW5500]time-range 3Com 8:00 to 18:00 daily
2 Define the ACL for packet which source IP is 10.1.1.1.
a Enter the number basic ACL, number as 2000.
[SW5500]acl number 2000
b Define the rules for packet which source IP is 10.1.1.1.
[SW5500-acl-basic-2000]rule 1 deny source 10.1.1.1 0 time-range 3Com
3 Activate ACL.
Activate the ACL 2000.
[SW5500-GigabitEthernet1/0/1]packet-filter inbound ip-group 2000
Networking Requirements
Using Link ACL, filter the packet whose source MAC address is 00e0-fc01-0101
and destination MAC address is 00e0-fc01-0303 during the time range 8:00 ~
18:00 every day. The ACL is activated on GigabitEthernet1/0/1.
Brief Introduction to ACL
connect to Router
#1
Switch
211
