Device Management
Device Management
Configuration

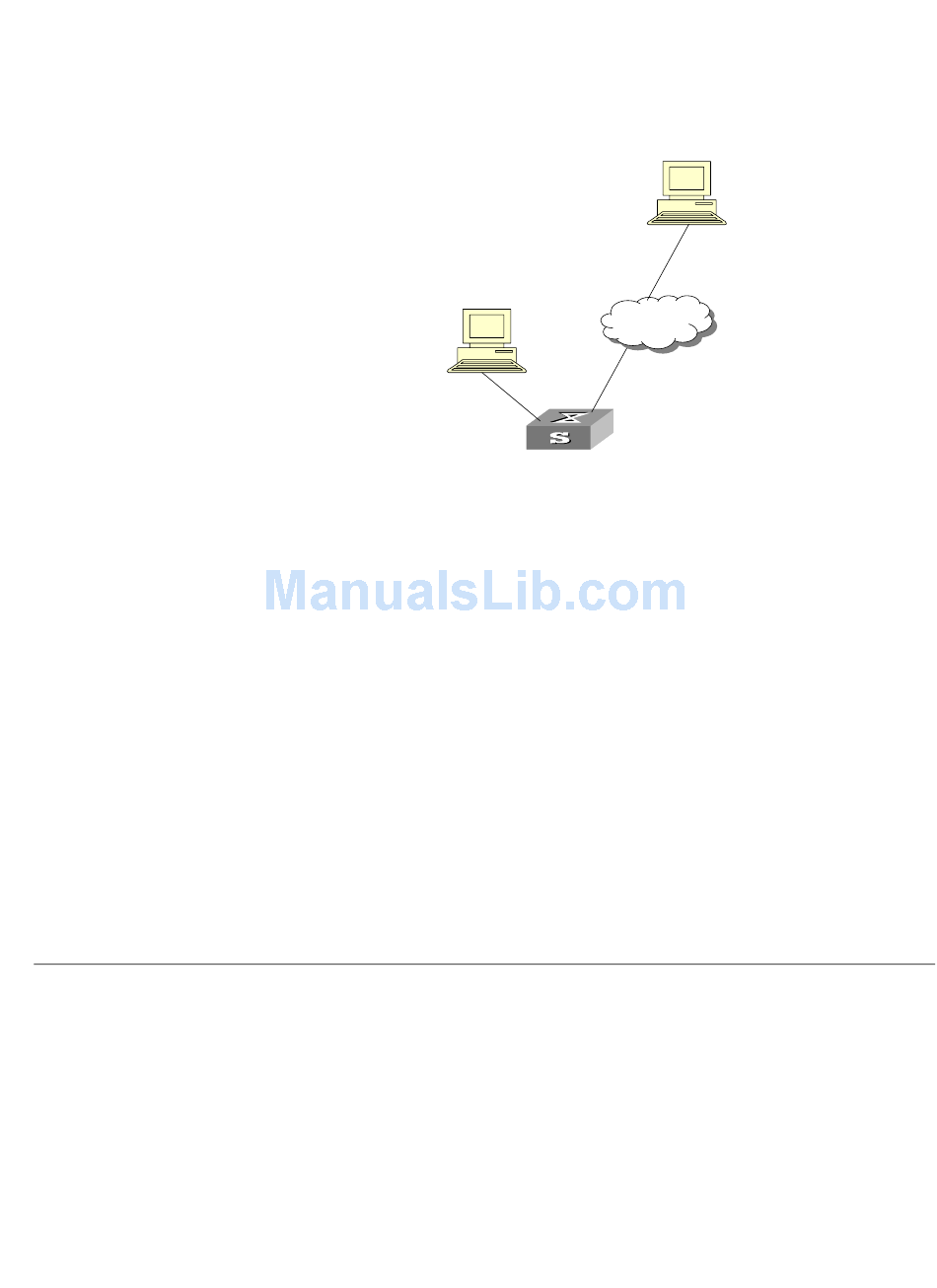

Networking Diagram
Figure 78 Typical Configuration of Address Table Management
Configuration Procedure
1 Enter the System View of the Switch.
<SW5500> system-view
System View: return to User View with Ctrl+Z
2 Add a MAC address (specify the native VLAN, port and state).
[SW5500]mac-address static 00e0-fc35-dc71 interface
gigabitethernet1/0/2 vlan 1
3 Set the address aging time to 500s.
[SW5500]mac-address timer 500
4 Display the MAC address configurations in all views.
[SW5500]display mac-address interface gigabitethernet1/0/2
MAC ADDR
00-e0-fc-35-dc-71
00-e0-fc-17-a7-d6
00-e0-fc-5e-b1-fb
00-e0-fc-55-f1-16
---
4 mac address(es) found on port GigabitEthernet1/0/2---
With the device management function, the Switch can display the current running
state and event debugging information about the unit, thereby implementing the
maintenance and management of the state and communication of the physical
devices. In addition, there is a command available for rebooting the system, when
some function failure occurs.
The device management configuration task is simple. As far as a user is concerned,
it is mainly to display and debug the device management.
Rebooting the Switch
It is necessary to reboot the Switch when failure occurs.
Network Port
Console Port
Switch
VLAN ID
STATE
1
Static
1
Learned
1
Learned
1
Learned
Device Management
Internet
PORT INDEX
AGING TIME(s)
GigabitEthernet1/0/2NOAGED
GigabitEthernet1/0/2500
GigabitEthernet1/0/2500
GigabitEthernet1/0/2500
311
