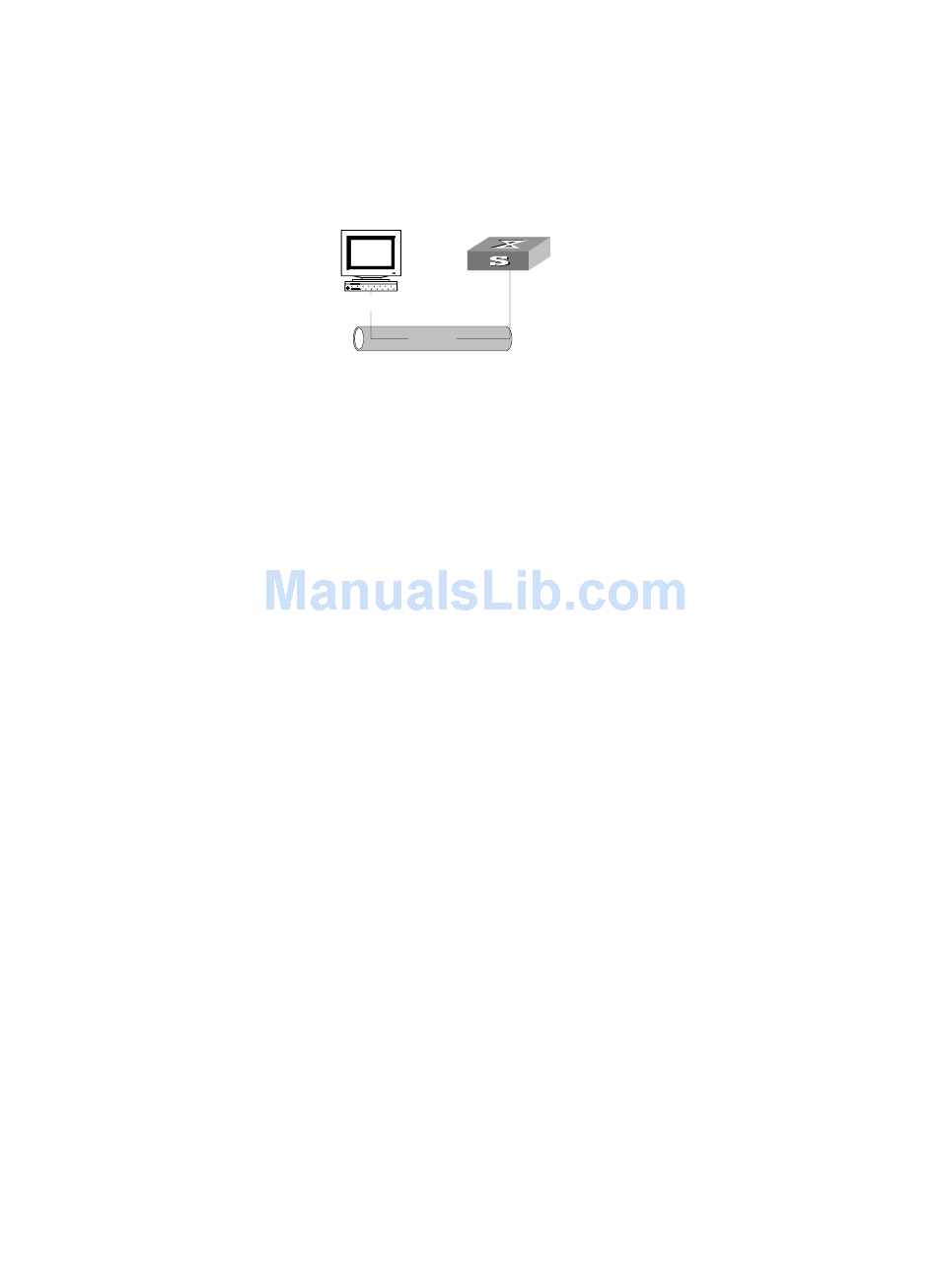

Networking Diagram
Figure 90 SNMP Configuration Example
129.102.149.23
NMS
Ethernet
Configuration Procedure
1 Enter the System View.
<SW5500> system-view
2 Set the community name , group name and user.
[SW5500]snmp-agent sys-info version all
[SW5500]snmp-agent community write public
[SW5500]snmp-agent mib include internet 1.3.6.1
[SW5500]snmp-agent group v3 managev3group write internet
[SW5500]snmp-agent usm v3 managev3user managev3group
3 Set the VLAN interface 2 as the interface used by network management. Add port
Ethernet 1/0/3 to the VLAN 2. This port will be used for network management..
set the IP address of VLAN interface 2 as 129.102.0.1.
[SW5500]vlan 2
[SW5500-vlan2]port ethernet 1/0/3
[SW5500-vlan2]interface vlan 2
[SW5500-Vlan-interface2]ip address 129.102.0.1 255.255.255.0
4 Set the administrator ID, contact and the physical location of the Switch.
[SW5500]snmp-agent sys-info contact Mr.Wang-Tel:3306
[SW5500]snmp-agent sys-info location telephone-closet,3rd-floor
5 Enable SNMP agent to send the trap to Network Management Station whose ip
address is 129.102.149.23. The SNMP community is public.
[SW5500]snmp-agent trap enable standard authentication
[SW5500]snmp-agent trap enable standard coldstart
[SW5500]snmp-agent trap enable standard linkup
[SW5500]snmp-agent trap enable standard linkdown
[SW5500]snmp-agent target-host trap address udp-domain
129.102.149.23 udp-port 5000 params securityname public
Configure Network Management System
The Switch supports 3Com Network Director. Users can query and configure the
Switch through the network management system. For more information, refer to
the network management user documentation.
