Connecting Cables to the RMX 4000

Before plugging network cables in, ensure sure that the network infrastructure containing all the
devices (including the RMX) has two different networks: one for Management; the other for Signaling
& Media. Separation can be achieved either by two physical networks or by two virtual networks
(VLANs).
•
When an NTP Server is used for the RMX Time, the Shelf Management cable must be connected to
the shelf port.
•
•
Polycom, Inc.
— To connect the cables (AC and DC systems):
RTM-IP 4000:
— Connect the Management Network cable to LAN 2.
— Connect the Signaling cable to LAN 3.
— Connect the Shelf Management cable to LAN 6.
For each installed RTM LAN - Connect the LAN cable to LAN 2.
— Optional. Connect the LAN cable to LAN 1. With Multiple networks and LAN
redundancy configurations, LAN 1 port is used. For more information see the
Administrator's Guide for Maximum Security Environments, "LAN Redundancy" on
page 12-26 "Multiple Networks" on page
and
Optional. If RTM ISDN is installed, for each installed RTM ISDN:
— Connect the E1/T1 cables to their PRI Ports.
— Connect the LAN cable to LAN 1.
LAN Connections to RTM LAN
Signaling
Network
Management
Network
Off/On
switch

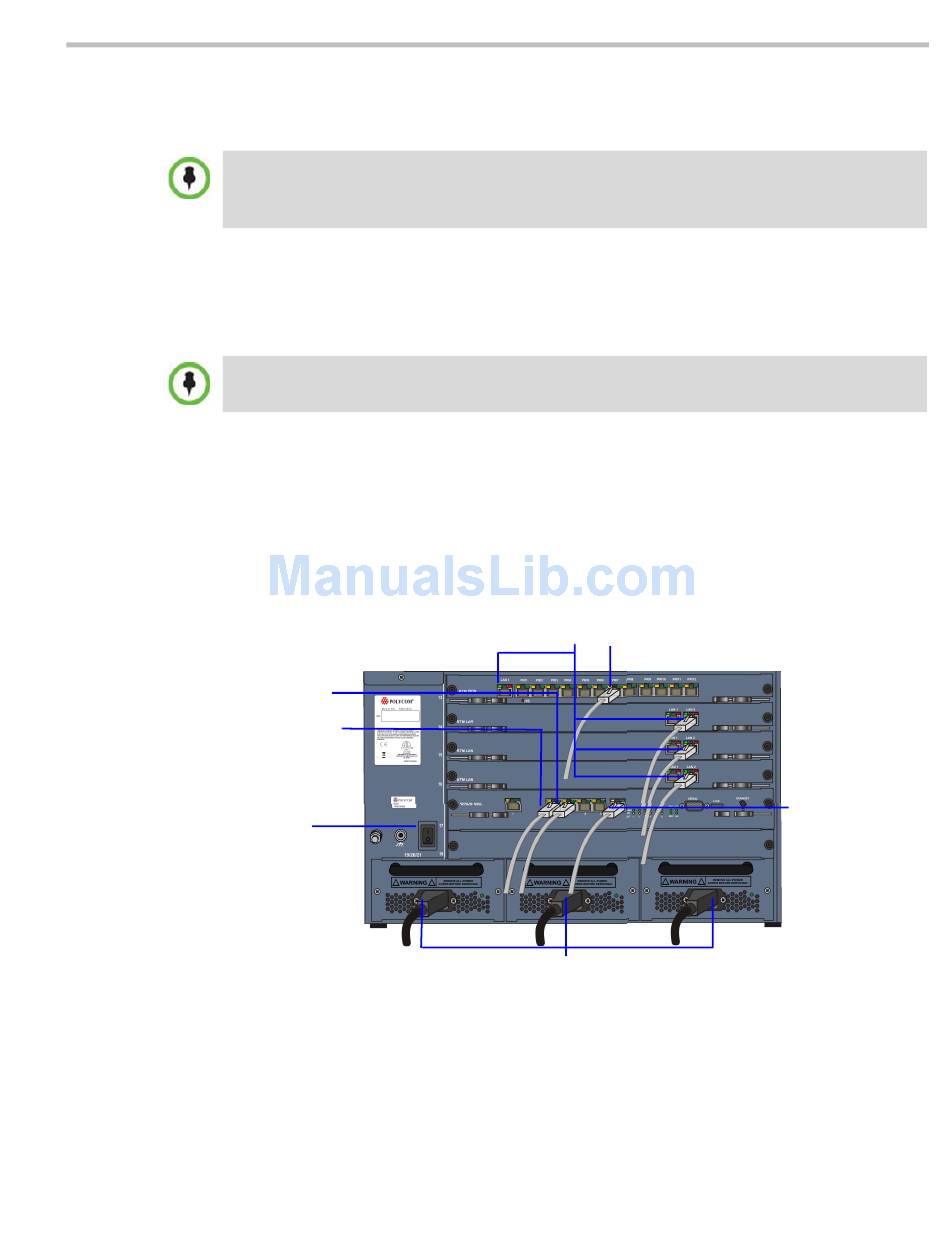

Figure 1-5 RMX 4000 Rear Panel View with AC Power and Communication Cables
Chapter 1-First Time Installation and Configuration
12-37
E1/T1 Connection to RTM ISDN
Power Cables
Shelf
Management
1-19
