Polycom RealPresence Collaboration Server (RMX)1500/2000/4000 Deployment Guide for Maximum Security Environments

Connecting Cables to the RMX 4000

To connect the cables (AC and DC systems):
•
When an NTP Server is used for the RMX Time, the Shelf Management cable must be connected to
the shelf port.
•
1-20
RTM-IP 4000:
— Connect the Management Network cable to LAN 2.
— Connect the Signaling cable to LAN 3.
— Connect the Shelf Management cable to LAN 6.
For each installed RTM LAN - Connect the LAN cable to LAN 2.
— Optional. Connect the LAN cable to LAN 1. With Multiple networks and LAN
redundancy configurations, LAN 1 port is used. For more information see the
RealPresence® Collaboration Server Administrator's Guide,"LAN Redundancy" on
page 16-32 "Multiple Network Services" on page 16-49.
and
— Optional. If RTM ISDN is installed, for each installed RTM ISDN:
— Connect the E1/T1 cables to their PRI Ports.
— Connect the LAN cable to LAN 1.
LAN Connections to RTM LAN
Signaling
Network
Management
Network
Off/On
switch

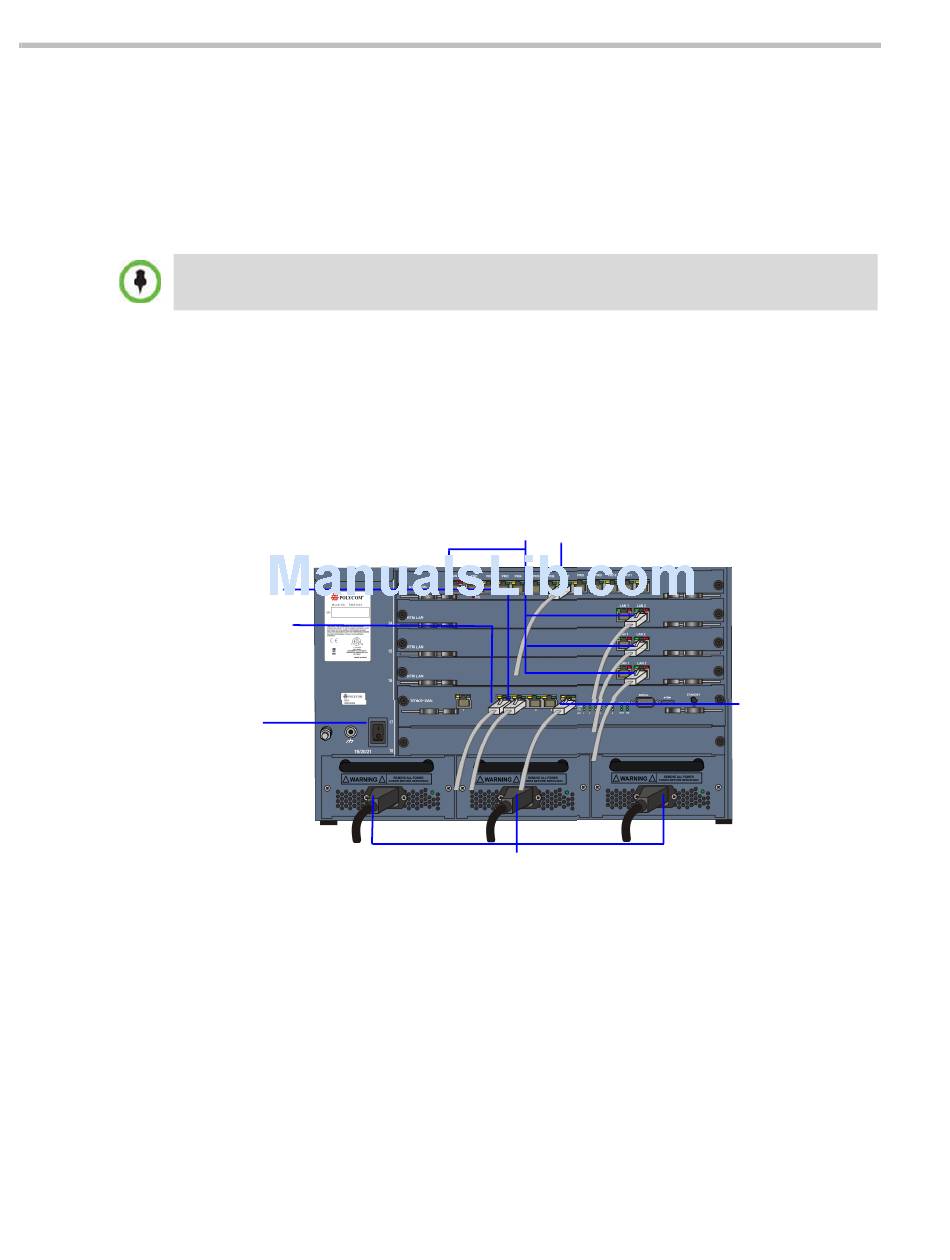

Figure 1-5 RMX 4000 Rear Panel View with AC Power and Communication Cables
E1/T1 Connection to RTM ISDN
Power Cables
Shelf
Management
Polycom, Inc.
