firmware images for use. Image ID 1 will be the default boot up firmware for the Switch unless
otherwise configured by the user.
Version
States the firmware version.
Size States the size of the corresponding firmware, in bytes.
Update Time States the specific time the firmware version was downloaded to the Switch.
From States the IP address of the origin of the firmware. There are five ways firmware may be
downloaded to the Switch. Boot Up files are denoted by an asterisk (*) next to the file.
R – If the IP address has this letter attached to it, it denotes a firmware upgrade through the
Console Serial Port (RS-232).
T – If the IP address has this letter attached to it, it denotes a firmware upgrade through Telnet.
S – If the IP address has this letter attached to it, it denotes a firmware upgrade through the
Simple Network Management Protocol (SNMP).
W – If the IP address has this letter attached to it, it denotes a firmware upgrade through the
web-based management interface.
SIM – If the IP address has this letter attached to it, it denotes a firmware upgrade through the
Single IP Management feature.
User States the user who downloaded the firmware. This field may read "Anonymous" or "Unknown"
for users that are not identified.

Config Firmware Image

The following window is used to configure firmware set in the Switch.
To view this window, click Administration > Multiple Image Services > Config Firmware Image, as shown below.
The following parameters can be set:
Parameter
Unit
Action
To boot up a firmware image, select it from the Image pull-down menu, change the Action to Boot and click Apply. To delete a
firmware image, select it from the Image pull-down menu, change the Action field to Delete and click Apply.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

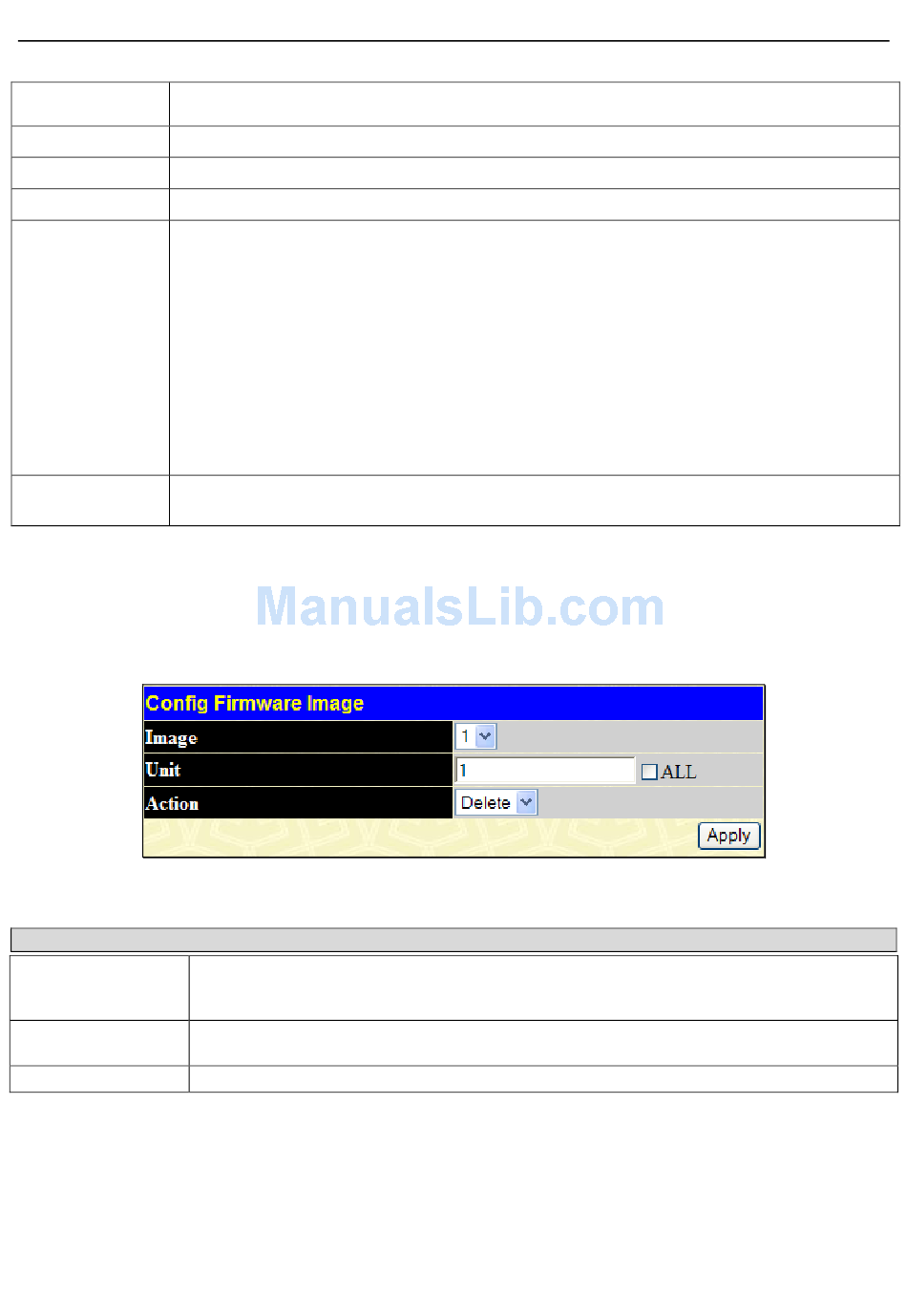

Figure 2 - 41 Config Firmware Image window
Description
The Switch allows two firmware images to be stored in its memory and either can be
configured to be the boot up firmware for the Switch. Use the pull-down menu to choose the
image.
Select the switch in the switch stack from which, or to which to upload or download files. Tick
the ALL check box to denote all switches in the switch stack.
Use the pull-down menu to toggle the actions between Delete and Boot.
