The following fields can be configured:
Parameter
VLAN Name
VID (1-4094)
Redirect Port Action
Redirect Port
Click Apply to implement the changes. To return to the RSPAN Settings window, click the
To modify an existing entry of its source settings, click the corresponding Modify button in Modify Source, revealing the
following window to configure:
The following fields can be configured:
Parameter
VLAN Name
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

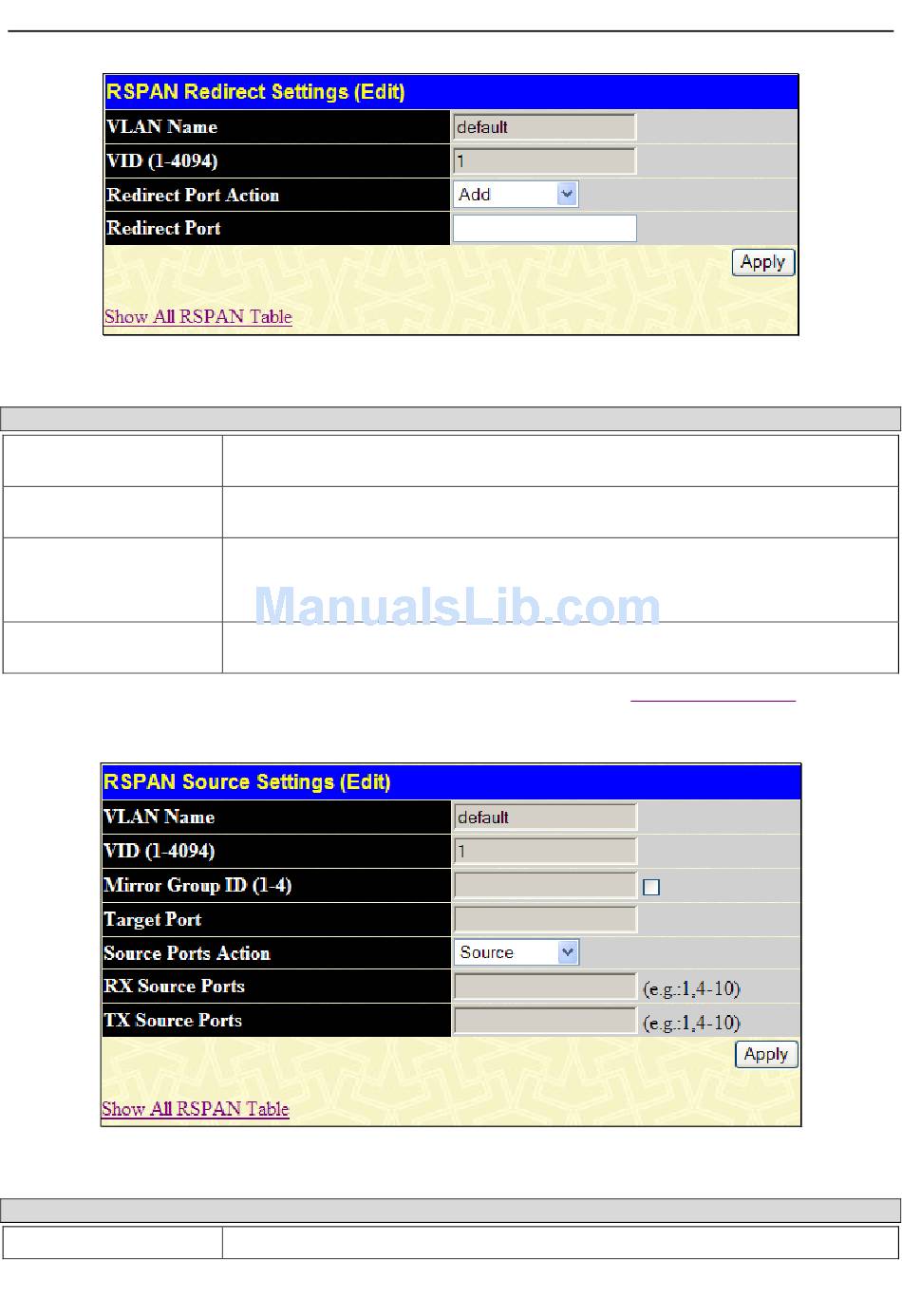

Figure 2 - 100 RSPAN Settings – Edit Redirect window
Description
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN which will
modify the RSPAN Entries.
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN which will to
modify the RSPAN Entries.
Use the drop down menu to select the configuration Redirect Ports Action.
Add – Add Redirect ports.
Delete – Delete Redirect ports.
RSPAN redirect function will work when RSPAN is enabled and at least one RSPAN
VLAN has been configured with redirect ports.
Figure 2 - 101 RSPAN Settings – Edit Source window
Description
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN which will
87
Show All RSPAN Table link.
