x Stack
Log Status
Trap Status
Click Apply to implement the changes.

ERPS RAPS VLAN Settings

This window allows users to search for and display ERPS RAPS information. Enter an R-APS VLAN ID in the field provided.
To view this window, click L2 Features > ERPS > ERPS RAPS VLAN Settings, as shown below.
The following fields can be set:
Parameter
R-APS VID (1-4094)
To search for specific VID, enter the VLAN ID in the R-APS VID (1-4094) field and click Find. To see all the entries, click
View All.
To add a new entry, click Add to see the window shown below.
Enter a VLAN ID in the R-APS VID (1-4094) field, and click Apply to see the entry appears in ERPS RAPS VLAN Table
window.
To edit an entry, click Modify to see the window shown below.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch
Enable or disable the log state of ERPS events. The default value is Disabled.
Enable or disable the trap state of ERPS events. The default value is Disabled

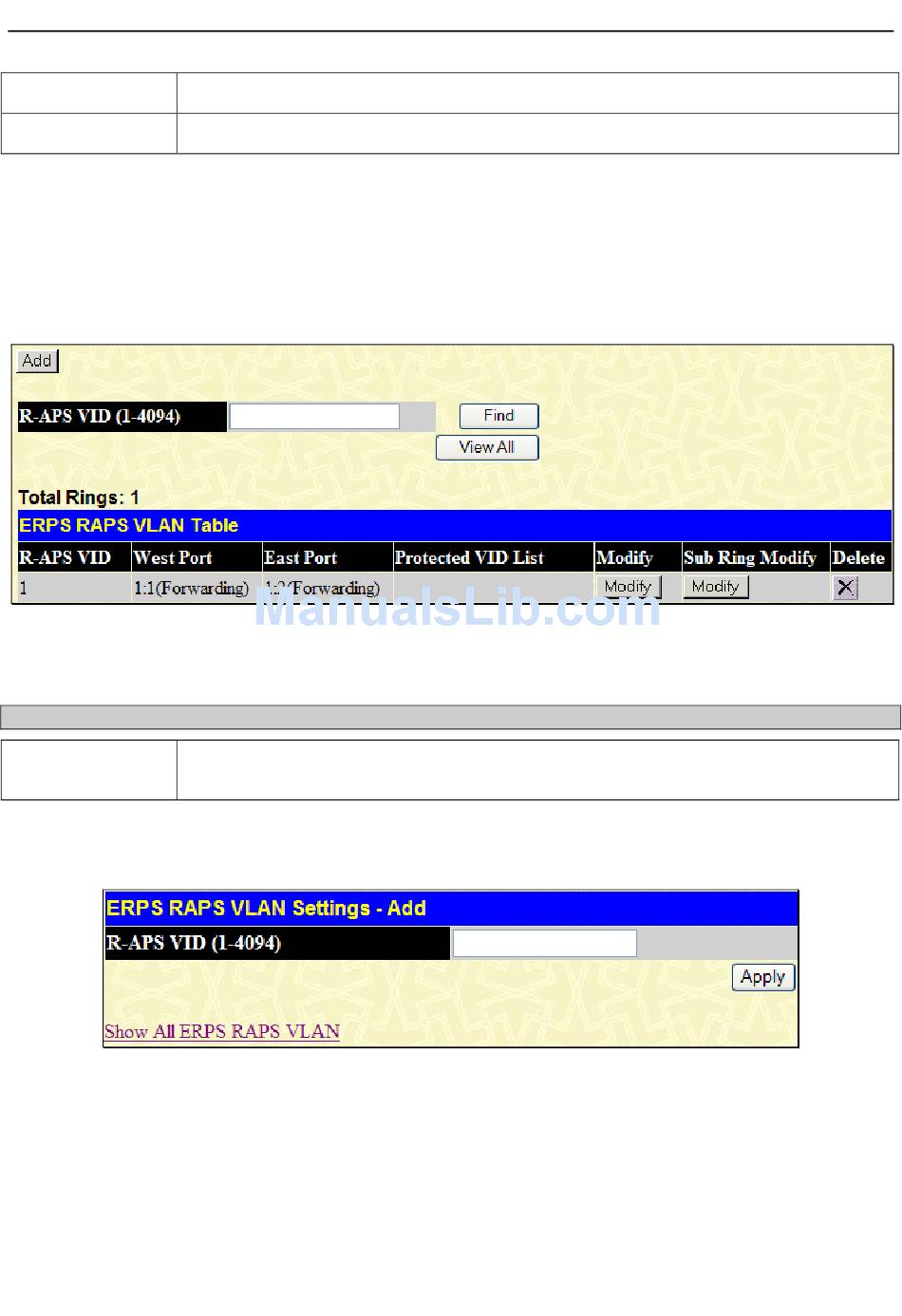

Figure 3 - 77 ERPS RAPS VLAN Table window
Description
The R-APS VLAN is the dedicated VLAN for transferring R-APS message. Enter the R-APS
VLAN ID between 1 and 4094.
Figure 3 - 78 ERPS RAPS VLAN Table - Add window
213
