x Stack
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch
Trunking
Understanding Port Trunk Groups
Port trunk groups are used to combine a number of ports together to make a single high-bandwidth data pipeline. DGS-3400
Series supports up to 32 port trunk groups with 2 to 8 ports in each group. A potential bit rate of 8000 Mbps can be achieved.

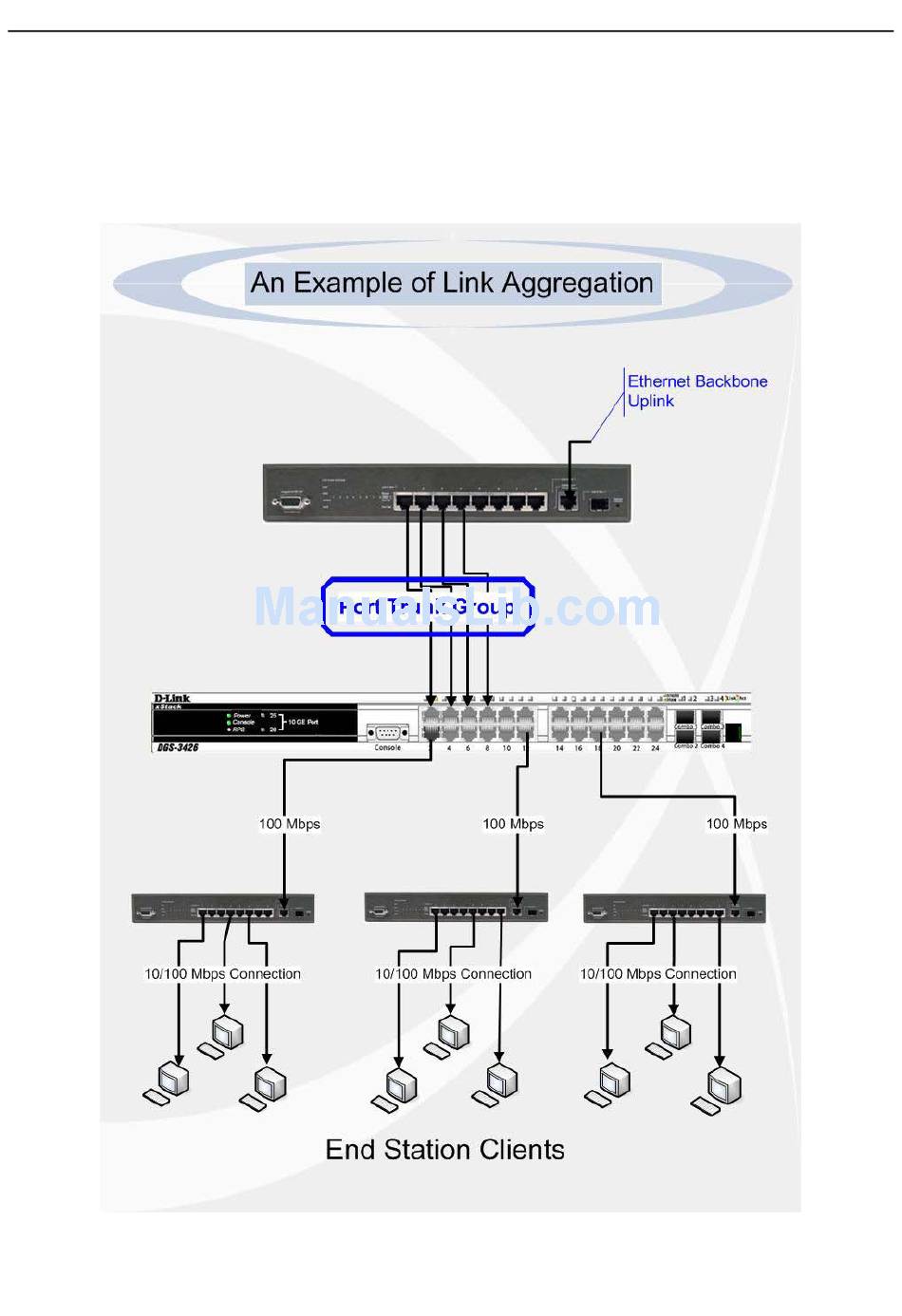

Figure 3 - 23 Example of Port Trunk Group
158
