Stacking Information - D-Link DGS-3427 - xStack Switch - Stackable Product Manual

x Stack
The following fields may be viewed in this window:
Parameter
ID
Internal Power
External Power (RPS)
Left Fan
Right Fan
Back Fan
CPU Fan

Stacking Information

To change a switch's default stacking configuration (for example, the order in the stack), see Box Information in the
Configuration folder.
The number of switches in the switch stack (up to 12 total) are displayed in the upper right-hand corner of your web-browser. The
icons are in the same order as their respective Unit numbers, with the Unit 1 switch corresponding to the icon in the upper left-
most corner of the icon group.
When the switches are properly interconnected through their optional Stacking Modules, information about the resulting switch
stack is displayed under the Stack Information link.
To view this window, click Monitoring > Stacking Information, as shown below.
The Stacking Information window displays the following information:
Parameters Description
Box ID Displays the Switch's order in the stack.
User Set Box ID can be assigned automatically (Auto), or can be assigned statically. The default is Auto.
Type
Displays the model name of the corresponding switch in a stack.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch
Description
Specifies the Switch in the Switch Stack that is being displayed.
Displays Active if the internal power supply is powering the system.
Displays Active if the RPS is powering the system.
Displays the status of the Left Fans.
Displays the status of the Right Fans.
Displays the status of the Back Fans.
Displays the status of the CPU Fans.

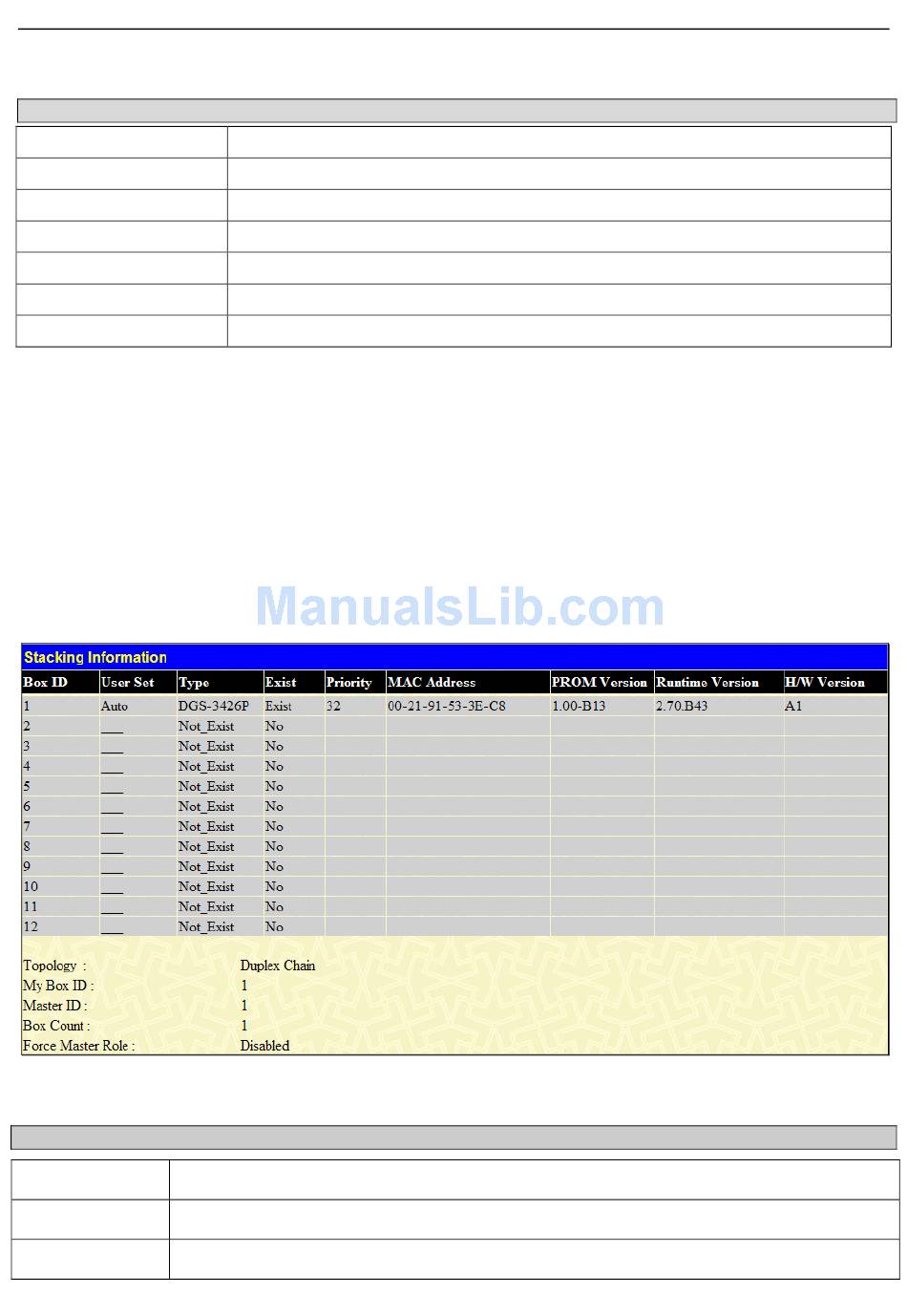

Figure 7 - 2 Stacking Information window
