Relay IP Address
Mode
Click Add to add a new Relay IP Address entry. Click Apply to implement the changes. To remove any entry, click the
corresponding button.

DHCP Relay Option 60 Settings

This window is used to configure option 60 relay rules on the Switch. Different strings can be specified for the same relay server,
and the same string can be specified with multiple relay servers. The system will relay the packet to all the matching servers.
To view this window, click Administration > DHCP/BOOTP Relay > DHCP Relay Option 60 Settings, as shown below.
To find a particular entry, enter the correct IP Address or String and click Search. Click the View All button to see all the entries
in the table at the bottom half of the window. To delete an entry, enter the appropriate IP address/String and relay IP address
information, and click Delete. To delete all the entries, click Clear All. To add a new entry click Add the following window will
appear:
The following parameters may be configured:
Parameter
String
Server IP
Match Type
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch
Enter the specified IP address for the DHCP relay forward.
Use the pull-down menu to choose either Relay or Drop. When drop is specified, the packet
with no matching rules found will be dropped without further process. When relay is selected
the packet will be relayed based on the relay rules.

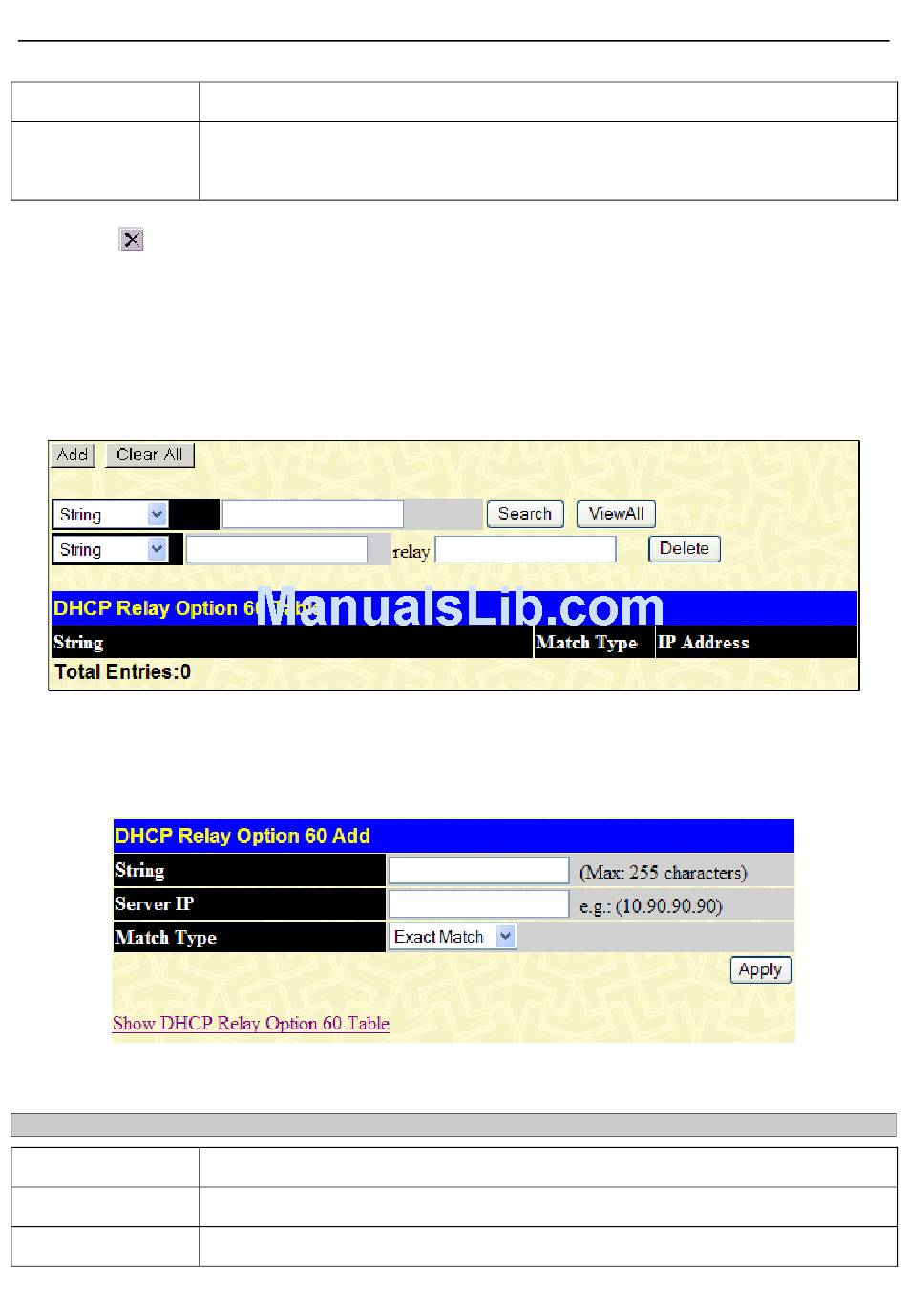

Figure 2 - 65 DHCP Relay Option 60 Table window
Figure 2 - 66 DHCP Relay Option 60 Table - Add window
Description
Enter the specified string, up to a maximum of 255 alphanumeric characters.
Enter the relay server IP address.
Use the drop-down menu to select either Exact Match or Partial Match.
65
