Note:
1. If the IP address of the received untagged packet is match two entries in the table. The longest-prefix match order is used.
2. For make the subnet VLAN can work well, must add the ingress port into the VLAN member ports.
3. The subnet VLAN maybe affects the authorization protocol, such as 802.1x, WAC, JWAC, MAC access control and
Compound authentication. Because the authorized port l will be assigned to target VLAN and set its PVID to target
VLAN ID, if subnet VLAN takes effect, the ingress packets on this port maybe not are classified to target VLAN.

Subnet VLAN Settings

This window is used to add, modify or delete subnet VLAN entries
To view this window, click L2 Features > VLAN > Subnet VLAN > Subnet VLAN Settings, as shown below.
The following fields may be configured:
Parameter Description
Action Use the pull-down menu to add, delete or find the subnet VLAN.
VLAN Use the pull-down menu to select VLAN name or VID to enter in the field next to it.
Network Address Use the pull-down menu to select IPv4 or IPv6 address to enter in the field next to it.
Priority Use the pull-down menu to select priority 0 to 7.
Click the Apply button to implement the changes. Click View All to see all the entries. Click Delete All to remove all entries.

VLAN Precedence Settings

This window is used to configure VLAN classification precedence on each port. With VLAN classification precedence, you can
specify the order of MAC-based VLAN classification and subnet VLAN classification.
To view this window, click L2 Features > VLAN > Subnet VLAN > VLAN Precedence Settings, as shown below.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

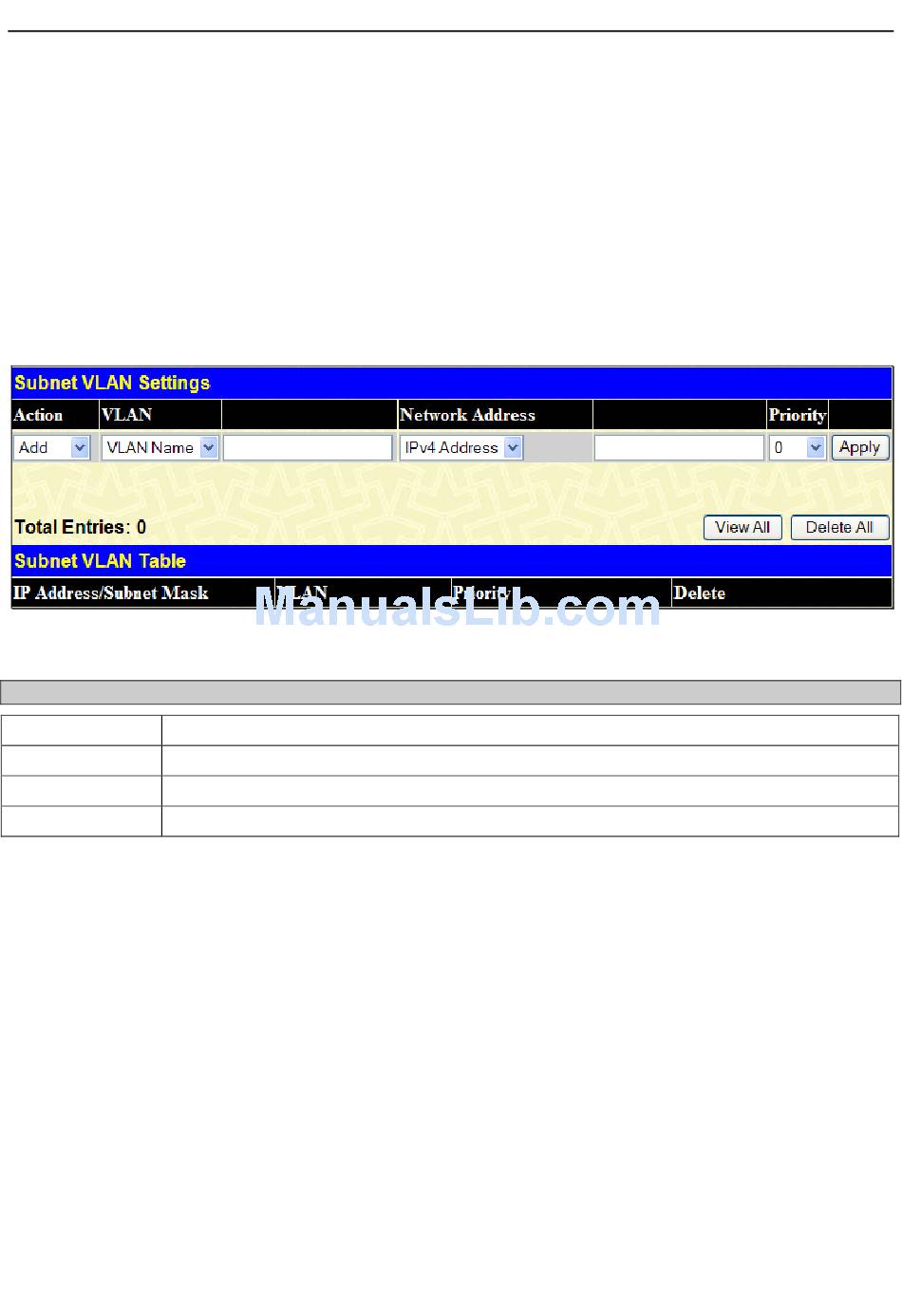

Figure 3 - 21 Subnet VLAN Settings window
