When Enabled, PVID will be automatically assigned when adding a port to a VLAN as an untagged member port. Click Apply to
implement the change.

MAC-based VLAN Settings

This table is used to create new MAC-based VLAN entries and search, edit and delete existing entries.
To view this window click L2 Features > VLAN > MAC-based VLAN Settings, as shown below.
The following fields can be set:
Parameter Description
MAC Address Specify the MAC address to be reauthenticated by entering it into the MAC Address field.
VLAN Name Enter the VLAN name of a previously configured VLAN.
Click Find, Add or Delete All for changes to take effect. To see all MAC-based VLAN entries, click the
VLAN Table link.

Protocol VLAN

Protocol VLAN groups can be created on the Switch. The purpose of these Protocol VLAN groups is to identify ingress untagged
packets and quickly and accurately send them to their destination. Ingress untagged packets can be identified by a protocol value
in the packet header, which has been stated here by the user. Once identified, these packets can be tagged with the appropriate tags
for VLAN and priority and then relayed to their destination.
The following is a list of protocol values for some common protocols.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

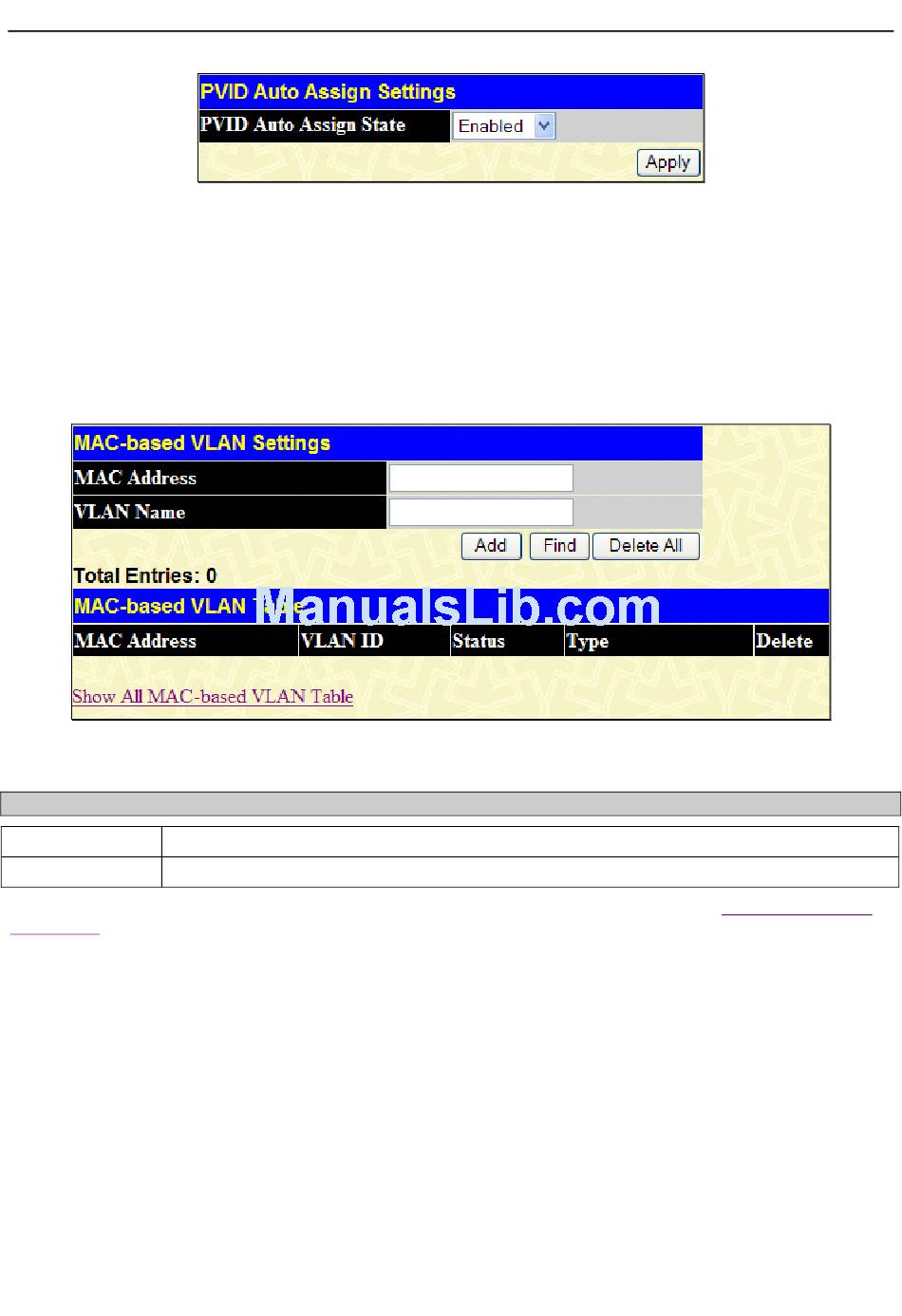

Figure 3 - 16 PVID Auto Assign Settings window
Figure 3 - 17 MAC-based VLAN Settings window
152
Show All MAC-based
