To create a new rule set for an access profile click the Add Rule button. A new window is displayed. To remove a previously
created rule, click the corresponding

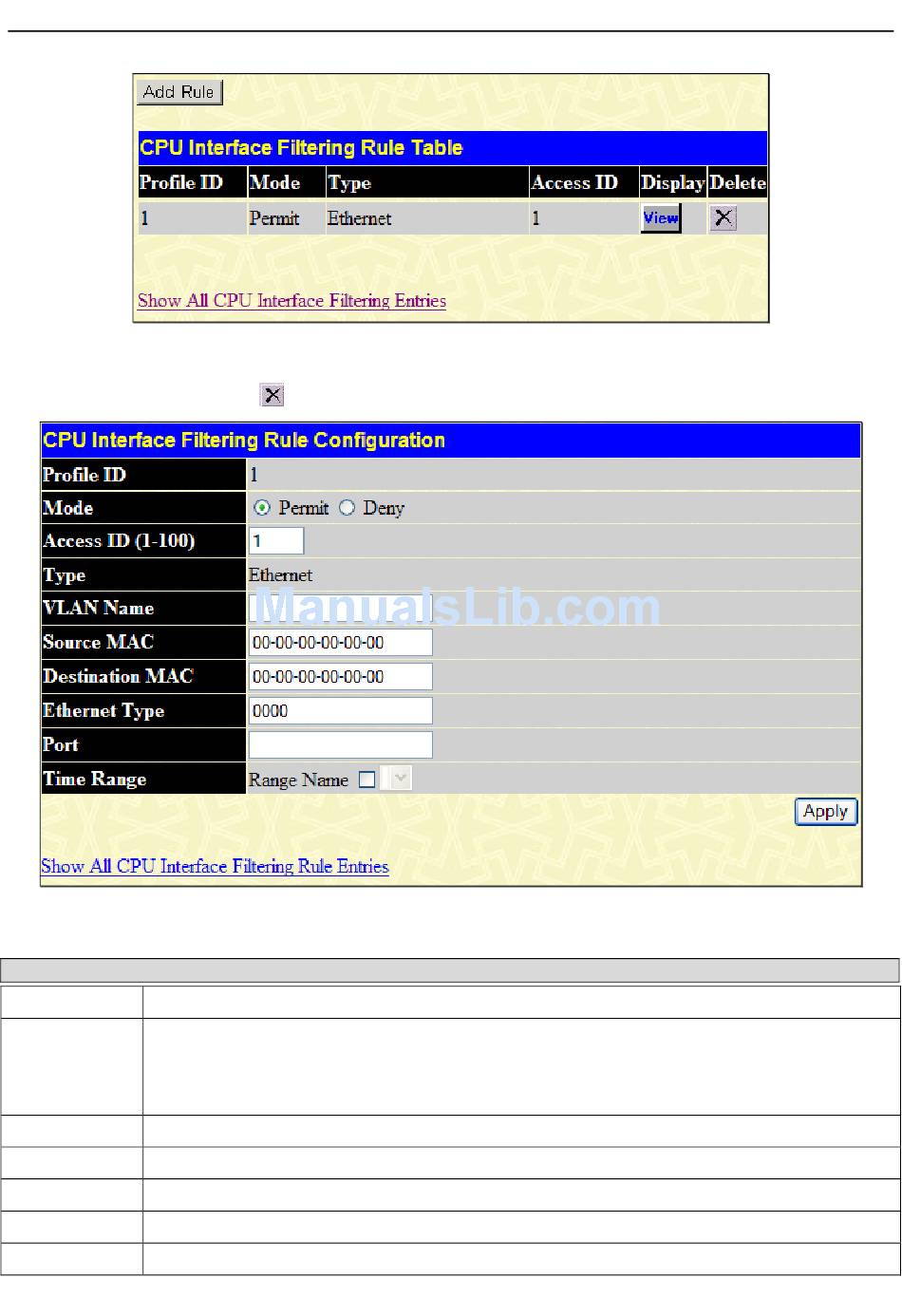

Figure 5 - 38 CPU Interface Filtering Rule Configuration window (Ethernet)
The following parameters can be configured.
Parameter Description
Profile ID This is the identifier number for this profile set.
Mode Select Permit to specify that the packets that match the access profile are forwarded by the Switch,
according to any additional rule added (see below).
Select Deny to specify that packets that match the access profile are not forwarded by the Switch
and will be filtered.
Access ID Type in a unique identifier number for this access and priority. This value can be set from 1 to 100.
Type Specifies the type of profile that is being created.
VLAN Name Allows the entry of a name for a previously configured VLAN.
Source MAC Source MAC Address – Enter a MAC Address for the source MAC address.
Destination Destination MAC Address – Enter a MAC Address mask for the destination MAC address.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch
Figure 5 - 37 CPU Interface Filtering Table (Ethernet)
button. The following window is used for the Ethernet Rule configuration.
