This window shows the following values:
Parameter
IP Address
Subnet Mask
Gateway
Metric
Protocol
Backup
Status
To remove an entry, click the corresponding
window to configure:
The following fields can be set:
Parameter
IP Address
Subnet Mask
Gateway
Metric (1-65535)
Backup State
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

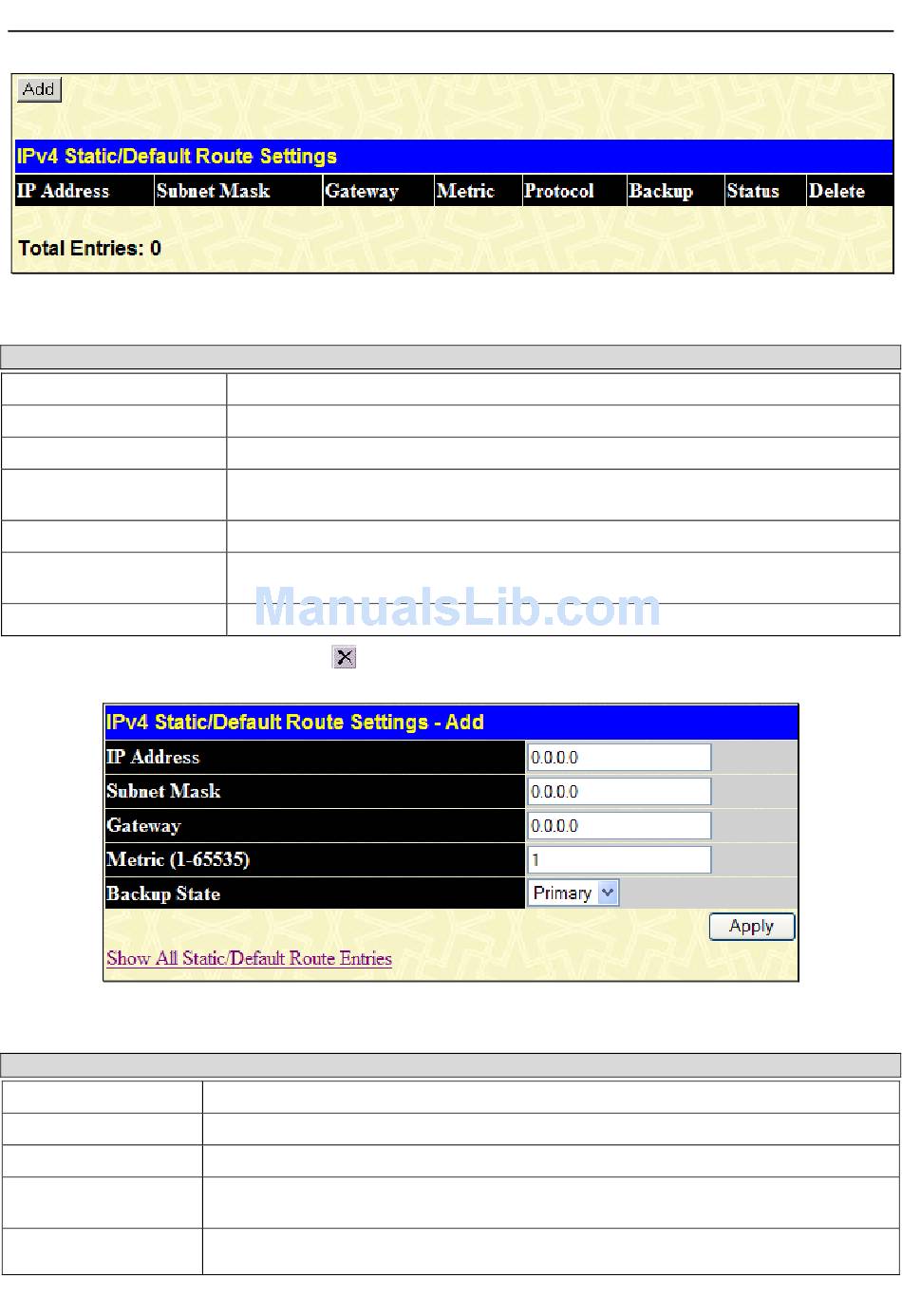

Figure 2 - 50 IPv4 Static/Default Route Settings window
Description
The IPv4 address of the Static/Default Route.
The corresponding Subnet Mask of the IP address entered into the table.
The corresponding Gateway of the IP route entered into the table.
Represents the metric value of the IP route entered into the table. This field may read a
number between 1 and 65535.
Represents the protocol used for the Routing Table entry of the IP route.
Represents the Backup state for which this IP route is configured. This field may read
Primary or Backup.
Displays whether the entry is Active or Inactive.
button. To add a new entry, click the Add button, revealing the following
Figure 2 - 51 Static/Default Route Settings - Add window
Description
Allows the entry of an IP address that will be a static entry into the Switch's Routing Table.
Allows the entry of a subnet mask corresponding to the IP address above.
Allows the entry of an IP address of a gateway for the IP route above.
Allows the entry of a routing protocol metric representing the number of routers between
the Switch and the IP address above.
The user may choose between Primary and Backup. If the Primary Static/Default Route
fails, the Backup Route will support the entry. Please take note that the Primary and
55
