Click Apply to implement the changes.
Forwarding & Filtering
This folder contains windows for Unicast Forwarding, Multicast Forwarding and Multicast Filtering Mode.

Unicast Forwarding

This window is used to configure the Unicast
Forwarding on the Switch.
To view this window, click L2 Features >
Forwarding & Filtering > Unicast For-
warding, as shown on the right:
To add or edit an entry, define the following parameters and then click Add/Modify:
Parameter
Unit
Port
VID
MAC Address
Click Add to implement the changes made. To delete an entry in the Static Unicast Forwarding Table, click the corresponding
under the Delete heading.

Multicast Forwarding

The following window describes how to set up Multicast Forwarding on the Switch.
To view this window, click L2 Features > Forwarding & Filtering >Multicast Forwarding, as shown below.
The Static Multicast Forwarding Settings window displays all of the entries made into the Switch's static multicast forwarding
table. To delete an entry in the Static Multicast Forwarding Table, click the corresponding
Click the Add button to open the Setup Static Multicast Forwarding Table window, as shown below.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

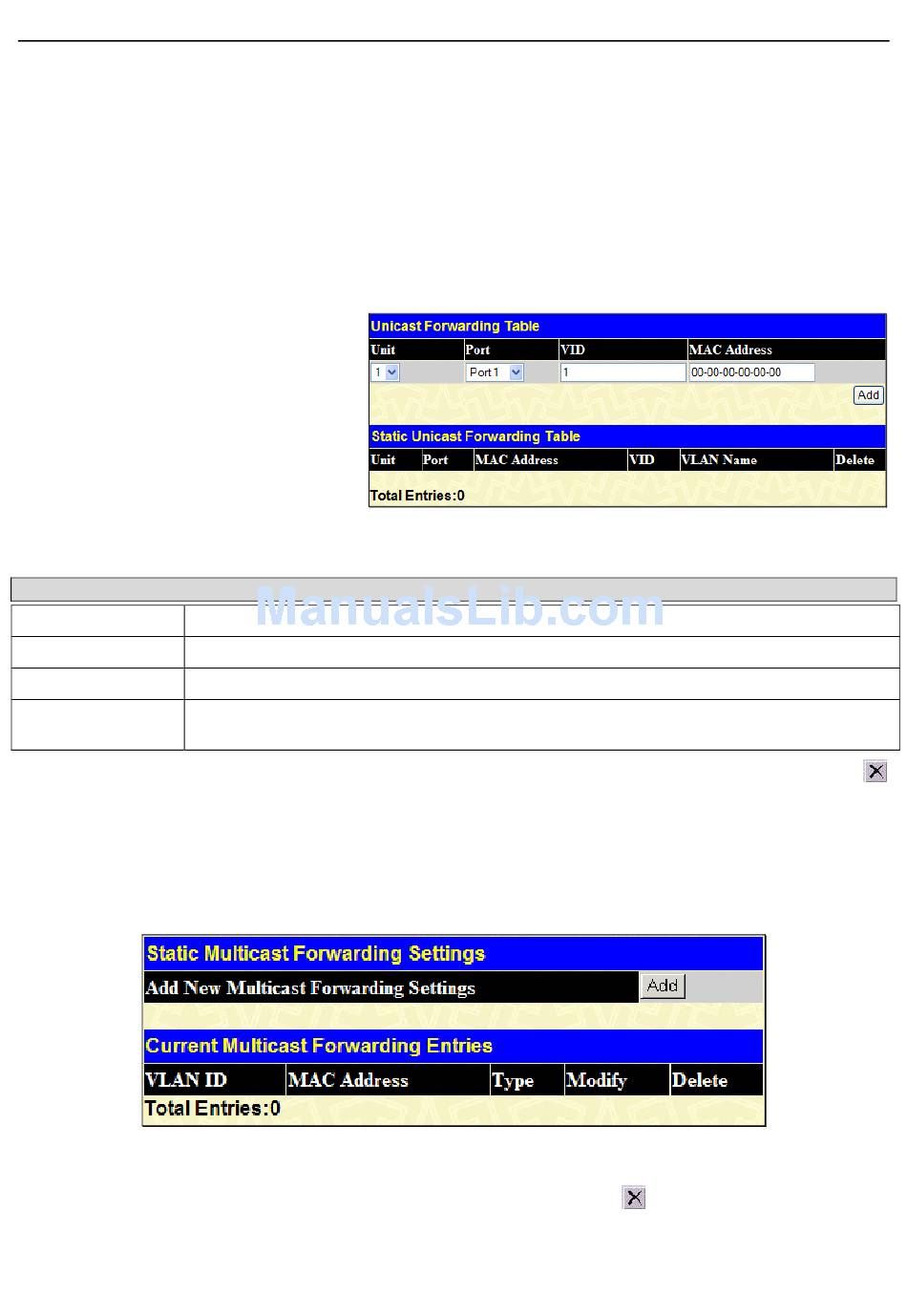

Figure 3 - 57 Setup Static Unicast Forwarding Table window
Description
Select the switch in the switch stack to be modified.
Allows the selection of the port number on which the MAC address entered above resides.
The VLAN ID number of the VLAN on which the above Unicast MAC address resides.
The MAC address to which packets will be statically forwarded. This must be a unicast MAC
address.
Figure 3 - 58 Static Multicast Forwarding Settings window
193
under the Delete heading.
