Collapse – to collapse the group that will be represented by a single icon.
•
Expand – to expand the SIM group, in detail.
•
Add to group – add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
•
Property – to pop up a window to display the device information.

Menu Bar

The Single IP Management window contains a menu bar for device configurations, as seen below.
The five menus on the menu bar are as follows.
File
•
Print Setup – will view the image to be printed.
•
Print Topology – will print the topology map.
•
Preference – will set display properties, such as polling interval, and the views to open at SIM startup.
Group
•
Add to group – add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
•
Remove from Group - Remove an MS from the group.
Device
•
Configure - will open the Web manager for the specific device.
View
•
Refresh - update the views with the latest status.
•
Topology - display the Topology view.
®
DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

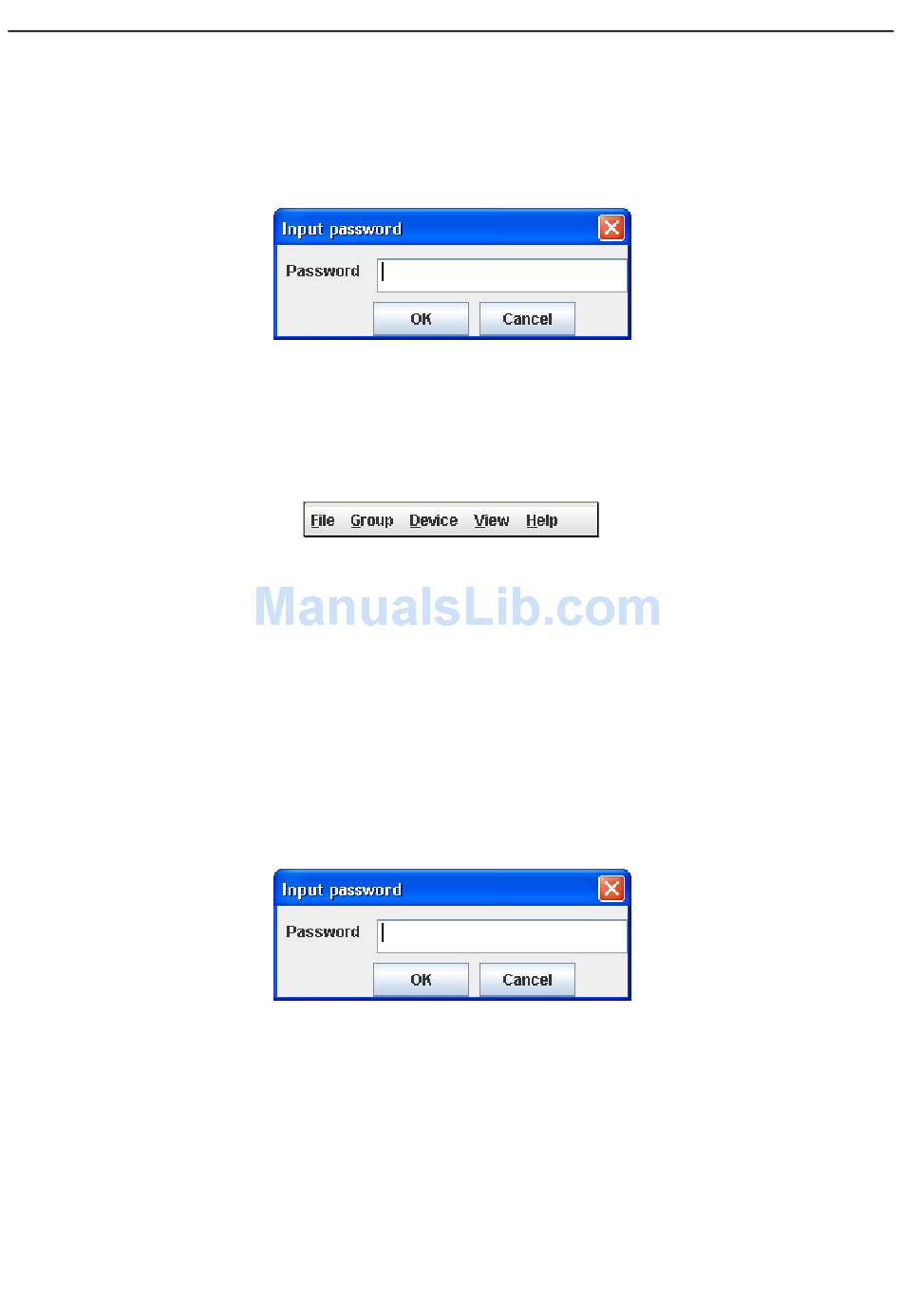

Figure 2 - 154 Input password dialog
Figure 2 - 155 Menu Bar of the Topology View
Figure 2 - 156 Input password dialog
