x Stack DGS-3400 Series Layer 2 Gigabit Ethernet M anaged Sw itch

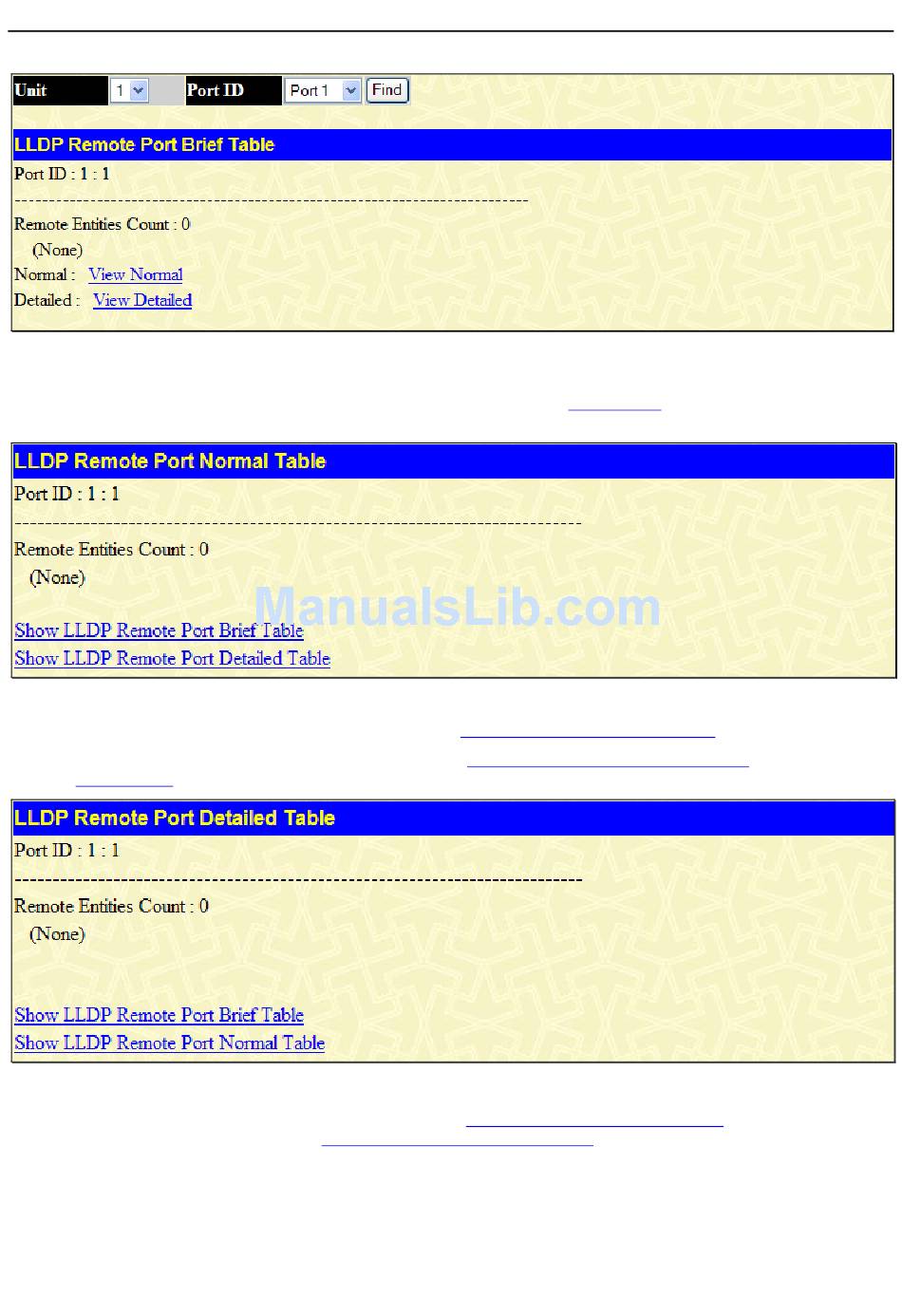

Figure 3 - 71 LLDP Remote Port Brief Table window
Select the port you wish to view by using the drop-down menu and click Find, the information will be displayed in the lower half
of the table. To view the settings for an individual port select the port and click View Normal which will display the following
window.
Figure 3 - 72 LLDP Remote Port Table - View Normal window
To return to the LLDP Local Remote Port Brief window, click the Show LLDP Remote Port Brief Table link.
To view the LLDP Remote Port Detailed Table window, click the Show LLDP Remote Port Detailed Table link, or select a port
and click View Detailed in the LLDP Remote Port Brief Table window which will display the following window.
Figure 3 - 73 LLDP Remote Port Table - View Detailed window
To return to the LLDP Local Remote Port Brief window, click the Show LLDP Remote Port Brief Table link. To view the LLDP
Remote Port Normal Table window, click the Show LLDP Remote Port Normal Table link.
209
