The following figure shows the broadcast traffic patterns on an Ethernet interface during a specified time
interval. In this example, traffic storm control occurs between times T1 and T2 and between T4 and T5. During
those intervals, the amount of broadcast traffic exceeded the configured threshold.

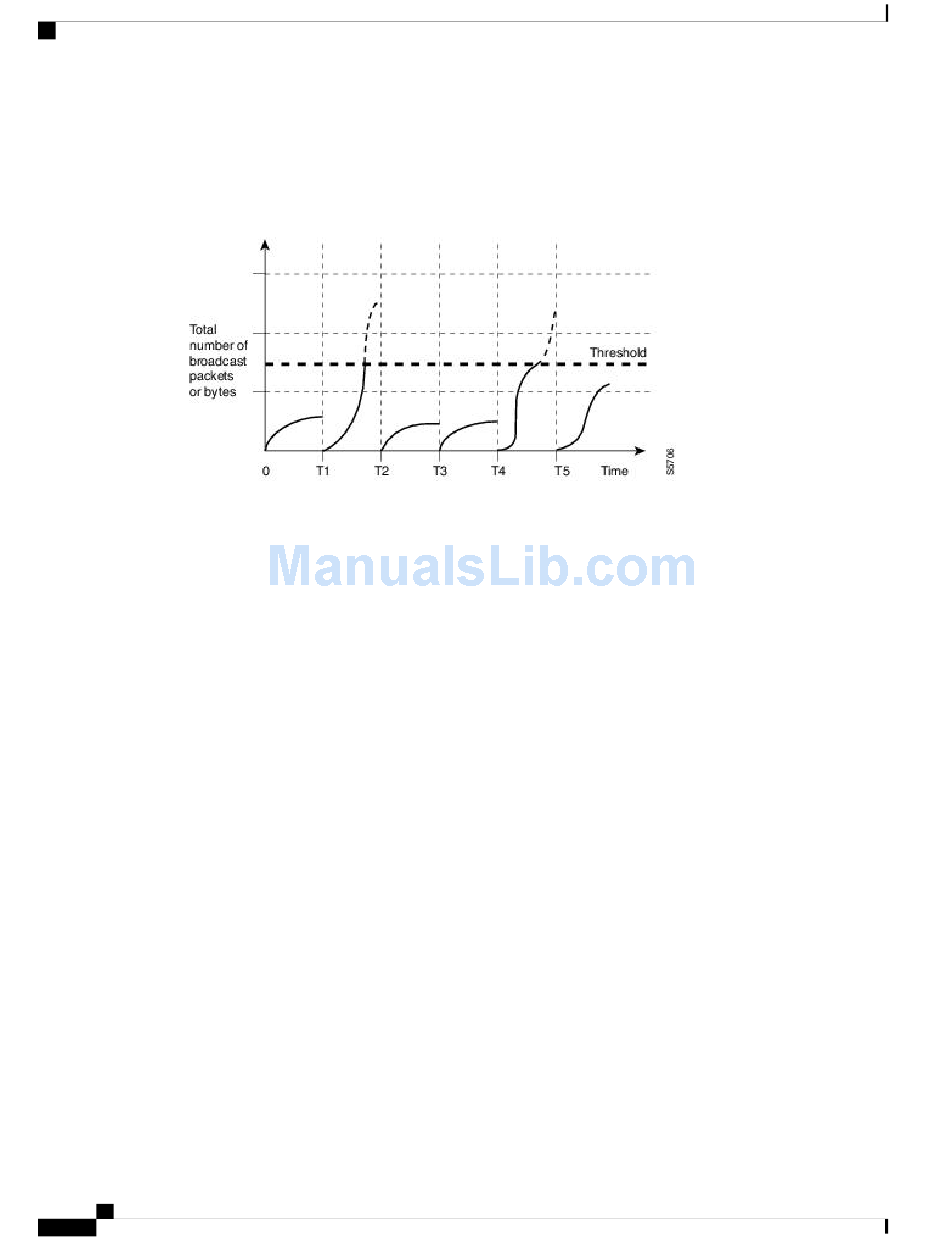

Figure 32: Broadcast Suppression
The traffic storm control threshold numbers and the time interval allow the traffic storm control algorithm to
work with different levels of packet granularity. For example, a higher threshold allows more packets to pass
through.
Traffic storm control on the Cisco Nexus 5000 Series switch is implemented in the hardware. The traffic
storm control circuitry monitors packets that pass from an Ethernet interface to the switching bus. Using the
Individual/Group bit in the packet destination address, the circuitry determines if the packet is unicast or
broadcast, tracks the current count of packets within the 10-microsecond interval, and filters out subsequent
packets when a threshold is reached.
Traffic storm control uses a bandwidth-based method to measure traffic. You set the percentage of total
available bandwidth that the controlled traffic can use. Because packets do not arrive at uniform intervals, the
10-microsecond interval can affect the operation of traffic storm control.
The following are examples of how traffic storm control operation is affected:
• If you enable broadcast traffic storm control, and broadcast traffic exceeds the level within the
• If you enable multicast traffic storm control, and the multicast traffic exceeds the level within the
• If you enable broadcast and multicast traffic storm control, and broadcast traffic exceeds the level within
• If you enable broadcast and multicast traffic storm control, and multicast traffic exceeds the level within
By default, Cisco NX-OS takes no corrective action when the traffic exceeds the configured level.

Traffic Storm Guidelines and Limitations

When configuring the traffic storm control level, follow these guidelines and limitations:
• You can configure traffic storm control on a port-channel interface.
Cisco Nexus 5000 Series Switch CLI Software Configuration Guide
222
10-microsecond interval, traffic storm control drops all broadcast traffic until the end of the interval.
10-microsecond interval, traffic storm control drops all multicast traffic until the end of the interval.
the 10-microsecond interval, traffic storm control drops all broadcast traffic until the end of the interval.
the 10-microsecond interval, traffic storm control drops all multicast traffic until the end of the interval.
Traffic Storm Guidelines and Limitations
