Primary and Secondary VLANs in Private VLANs

promiscuous port in its primary VLAN. Hosts on community VLANs can communicate among themselves
and with their associated promiscuous port but not with ports in other community VLANs.

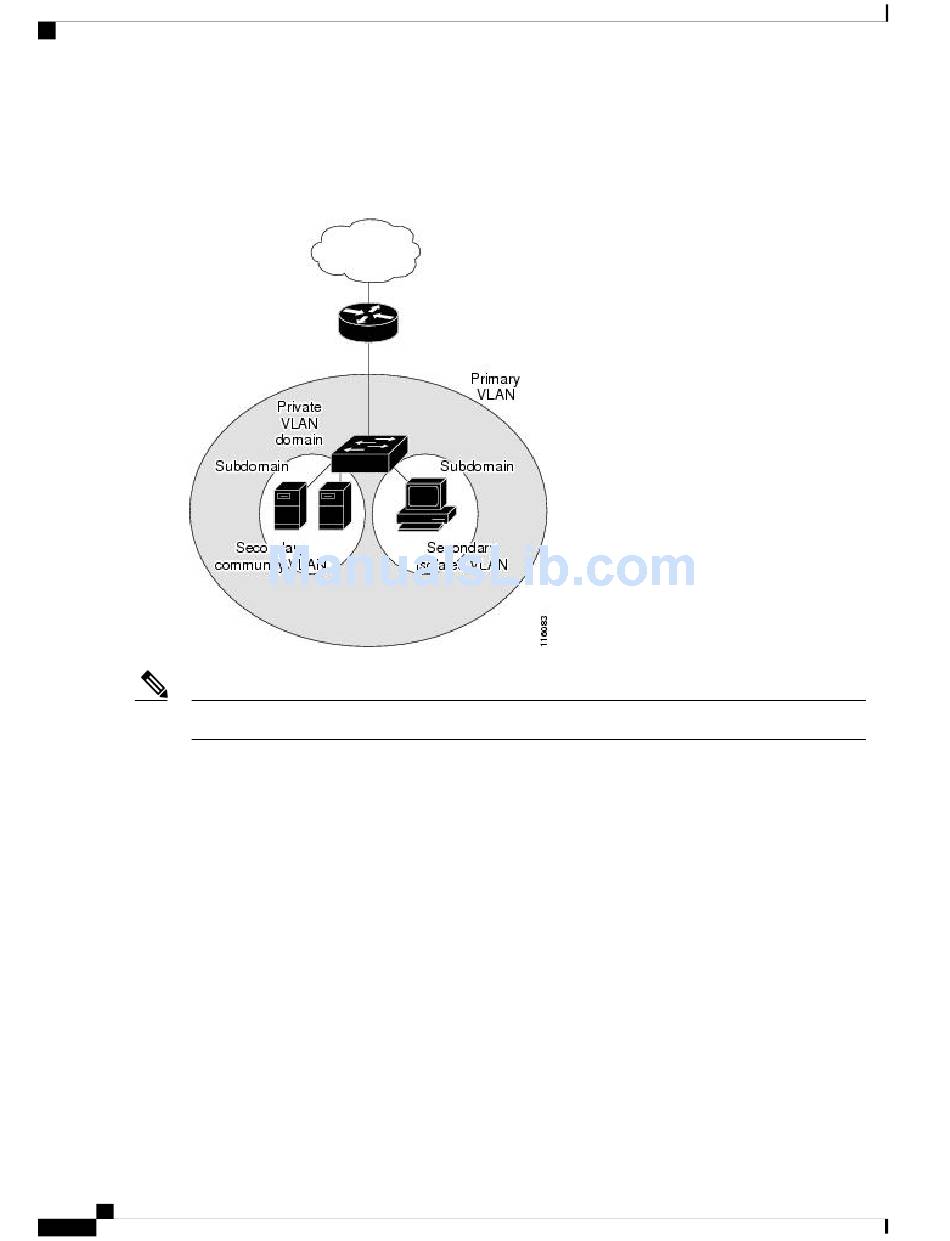

Figure 9: Private VLAN Domain
You must first create the VLAN before you can convert it to a private VLAN, either primary or secondary.
Note
Primary and Secondary VLANs in Private VLANs
A private VLAN domain has only one primary VLAN. Each port in a private VLAN domain is a member of
the primary VLAN; the primary VLAN is the entire private VLAN domain.
Secondary VLANs provide isolation between ports within the same private VLAN domain. The following
two types are secondary VLANs within a primary VLAN:
• Isolated VLANs—Ports within an isolated VLAN cannot communicate directly with each other at the
• Community VLANs—Ports within a community VLAN can communicate with each other but cannot

Private VLAN Ports

The three types of private VLAN ports are as follows:
Cisco Nexus 5000 Series Switch CLI Software Configuration Guide
88
Layer 2 level.
communicate with ports in other community VLANs or in any isolated VLANs at the Layer 2 level.
Information About Private VLANs
OL-16597-01
